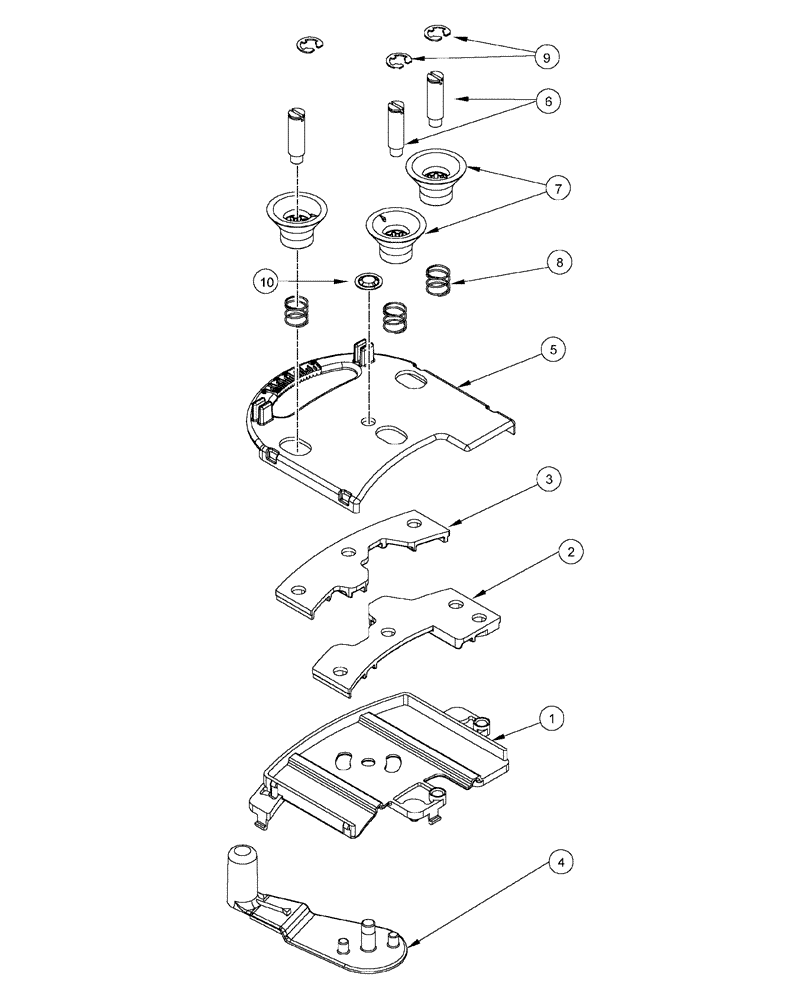

Запчасти Case IH 1200 (L.10.B[15]) - SEED SINGULATOR (BSN CBJ0001610) L - Field Processing

0

86994218

REPAIR KIT

singulator replacement

1шт.

1

NSS

NOT SOLD SEPARAT

base seed singulator

1шт.

2

NSS

NOT SOLD SEPARAT

bracket lower spool anchor

1шт.

3

NSS

NOT SOLD SEPARAT

bracket upper spool anchor

1шт.

4

NSS

NOT SOLD SEPARAT

lever seed singulator adjustment

1шт.

5

NSS

NOT SOLD SEPARAT

cover seed singulator

1шт.

6

298514A1

STUD

spool pivot

3шт.

7

302363A1

SPOOL

singulator

3шт.

8

234552A1

SPRING

compression .0258" wire x .44" od x .79" long

3шт.

9

86624103

SNAP RING,#X31, .243" Dia, E-Type

3шт.

10

NSS

NOT SOLD SEPARAT

fastener pushnut

1шт.

11

86551278

SELF-TAP SCREW,HWH, #10 - 16 x 1/2"

2шт.

Not Shown

1шт.
