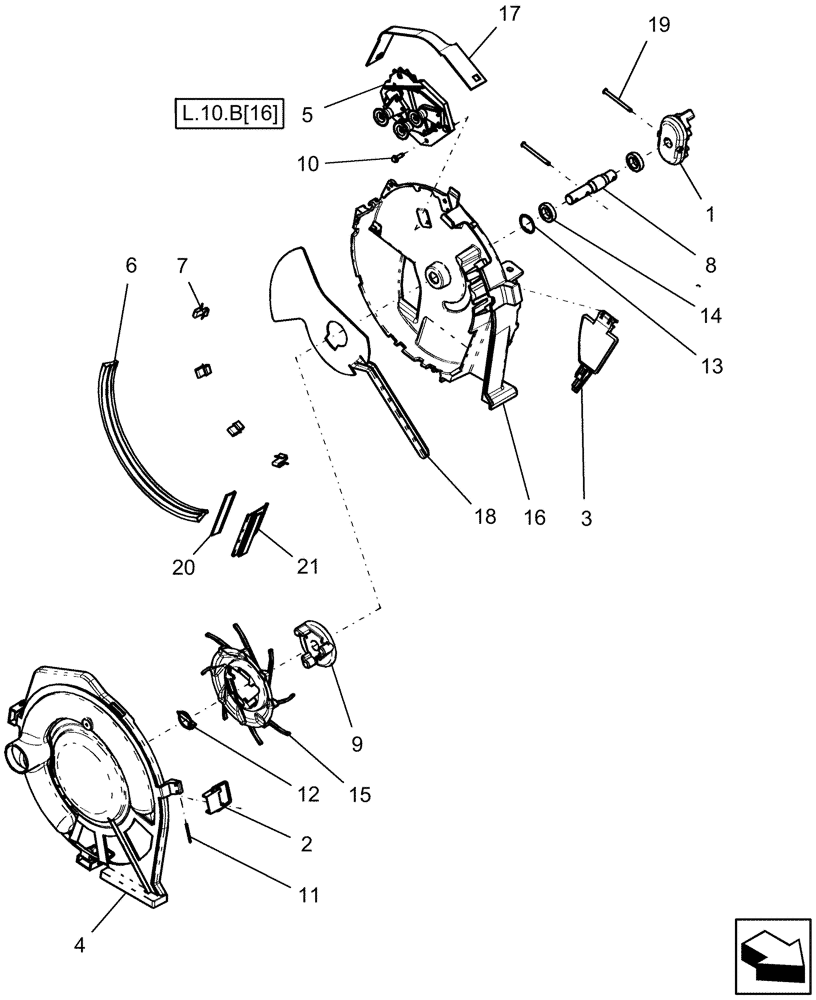

Запчасти Case IH 1200 (L.10.B[14]) - SEED METER ASSEMBLY (ASN CBJ0001597) L - Field Processing

1

308400A4

DRIVE,Assembly, Meter Coupler

assembly, meter

1шт.

2

256370A1

LATCH

and bail assembly

3шт.

3

432340A1

DOOR

assembly includes seed latch

1шт.

4

302238A1

COVER

latch assembly

1шт.

Note: When replacing the meter cover that has the vacuum sensor / fitting attached to it, refer to the Service Manual for the drilled and tapped hole size required.

1шт.

5

413842A1

HOUSING

singulator

1шт.

6

296776A1

BRUSH

annulus

1шт.

7

296777A1

CLIP

annulus brush

4шт.

8

401419A1

GEAR SHAFT

ASM meter drive

1шт.

9

326923A1

ROTOR

disc

1шт.

10

281-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

3шт.

11

256373A1

PIN,2.31mm OD x 31.11mm L

latch

3шт.

12

302676A1

LINCH PIN

4.76 mm x 31.75 mm long

1шт.

13

301644

CIRCLIP,M30, Int

1шт.

14

401425A1

BALL BEARING,17mm ID x 30mm OD x 7mm W

sealed ball 30 mm od x 17 mm bore

2шт.

15

326924A2

AGITATOR

seed

1шт.

16

86983901

HOUSING

seed meter, Serial Range: -CBJ022592

1шт.

16

87445992

HOUSING

seed meter, Start Serial: CBJ022593

1шт.

17

300089A1

SCREEN

seed meter

1шт.

18

294837A1

BAFFLE

seed shut off

1шт.

19

308024A2

CLEVIS PIN

cotterless self lock, Years: -01-JUN-05

2шт.

19

87502422

LOCK PIN

Cotterless Self-Locking, Start Year: 01-JUN-05

2шт.

20

296783A1

BRUSH

straight

1шт.

21

294924A1

CLIP

straight brush

1шт.

100

84156378

ADJUSTING PLATE

seed meter

1шт.
