Запчасти Case IH 1200 (L.10.B[06]) - PRIMARY FERTILIZER DRIVE SYSTEM, DRY AND LIQUID FERTILIZER, 6 ROW RIGID TRAILING L - Field Processing

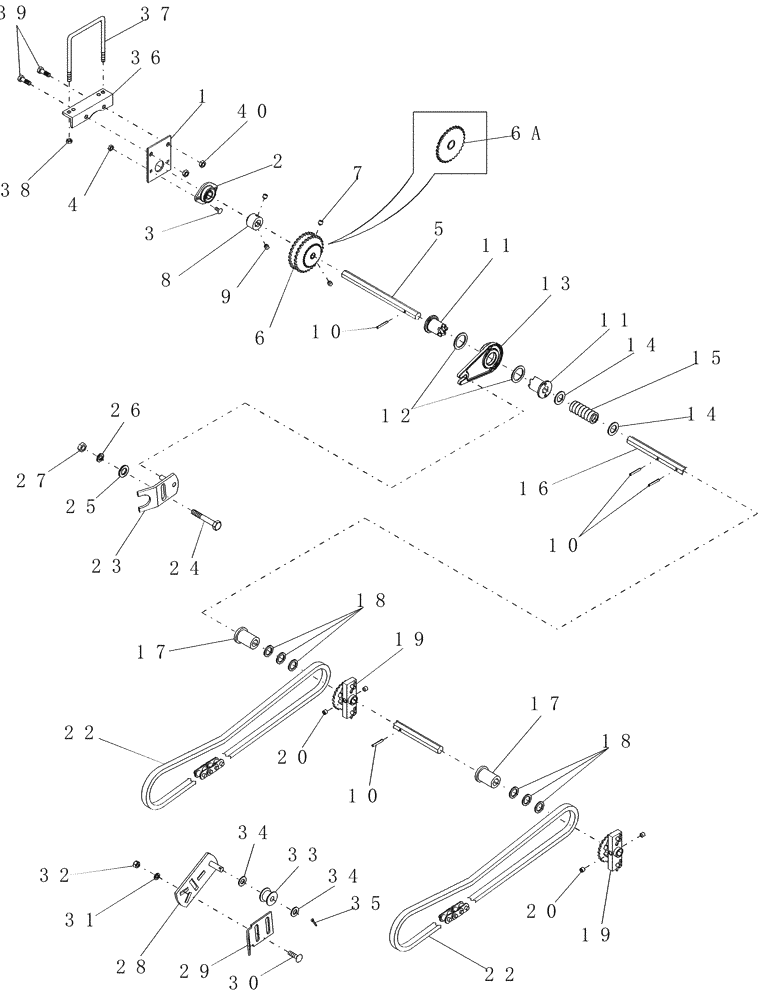

Схема запчастей Case IH 1200 - (L.10.B[06]) - PRIMARY FERTILIZER DRIVE SYSTEM, DRY AND LIQUID FERTILIZER, 6 ROW RIGID TRAILING L - Field Processing
25
15
26
11
10
11
9
10
30
3
6
1
23
34
24
13
8
16
32
19
33
22
22
18
38
40
4
39
7
6a
34
20
27
17
37
31
20
10
2
28
14
36
17
19
12
35
29
5
18
14

Артикул

Название

Примечание

Количество

1

87461090

PLATE

bearing support

1шт.

2

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

1шт.

3

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

4

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

5

90844C1

SHAFT

Drive, Hex, 22 (7/8") x 330 mm (13") long

1шт.

6

141063C2

SPROCKET

assembly, drive clutch

1шт.

Dry fertilizer

1шт.

6a

1254152C2

SPROCKET

assembly, 30 tooth driver

1шт.

Liquid fertilizer

1шт.

7

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

8

87461085

SPROCKET

collar locking

1шт.

9

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

10

86624099

PIN,1/4" x 1 3/4", Coiled

4шт.

11

1264314C1

CLUTCH

drive RH

2шт.

12

1267994C2

THRUST WASHER,42.06mm ID x 57.15mm OD x 2.7mm Thk

clutch

2шт.

13

87502661

PLATE

clutch throw out

1шт.

14

86624172

WASHER,1.03" ID x 1.75" OD x 0.12" Thk

2шт.

15

87461083

SPRING

clutch

1шт.

16

90558C2

BAR

primary input

1шт.

Dry fertilizer

1шт.

17

90335C2

BUSHING

drive shaft

2шт.

18

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

6шт.

19

1277926C92

RATCHET

23 tooth RH

2шт.

Dry fertilizer

1шт.

19

1277925C92

RATCHET

23 tooth LH

2шт.

Liquid fertilizer

1шт.

19

1277926C92

RATCHET

23 tooth RH

2шт.

Liquid fertilizer

1шт.

20

483-15012

SET SCREW,Hex Soc, 1/2"-13 x 3/4"

2шт.

22

1277740C91

CHAIN (AG)

A2050 main drive (Trail), use 55 links from 569089R91 bulk chain plus 1-1277928C91 connecting link

2шт.

22

569089R91

CHAIN (AG),10' L, 1.0" Pitch

#2050 - 10' d/p roller

1шт.

22

1277928C91

LINK

connecting #2050

1шт.

23

87461084

BRACKET

cast clutch throw out

1шт.

24

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

1шт.

25

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

26

12034871

WASHER

5/8"

1шт.

27

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

28

87461086

PLATE

idler

2шт.

29

87461087

SCRAPER

chain plate

2шт.

30

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

4шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

32

280431

NUT,1/2"-13, G5

4шт.

33

1277726C1

ROLLER,48mm OD x 34mm L

idler

2шт.

34

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

4шт.

35

394818

COTTER PIN,M5 x 25

2шт.

36

87461088

SUPPORT

angle bearing

1шт.

37

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

1шт.

38

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

39

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

40

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

Выбрано товаров: 50
