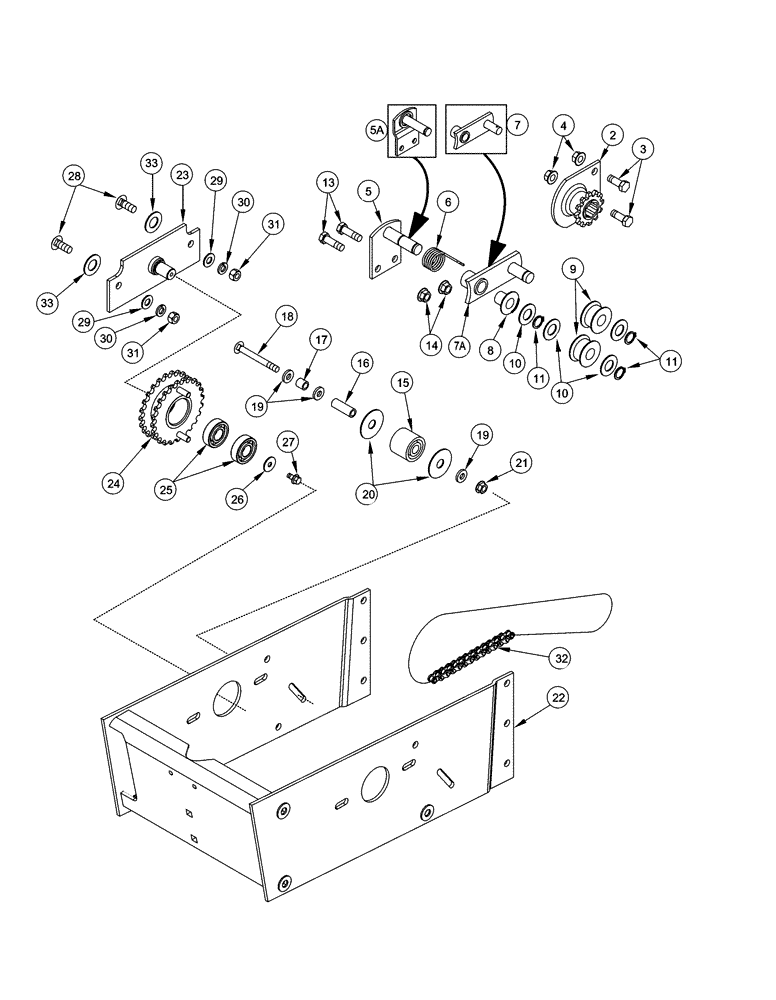

Запчасти Case IH 1200 (L.10.B[01]) - ADVANCED SEED METER DRIVE (BSN CBJ025507) MOUNTED STACKER (BSN CBJ025518) L - Field Processing

1

REF

INSTRUCTION

head bracket assembly, Advanced Seed Meter, Row Unit

1шт.

Not Shown

1шт.

2

413712A1

BEARING ASSY,1.90625" OD x 1.875"

12 tooth with bearing

1шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

4

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

5

417119A2

PLATE

assembly, chain tightener, Start Year: 01-JAN-03

1шт.

5a

1277838C1

LEVER

tightener, Years: -31-DEC-02

1шт.

6

1277854C2

SPRING

idler

1шт.

7

1277658C1

LEVER

idler arm assembly, Years: -31-DEC-02

1шт.

7a

417120A2

FRONT IDLER

arm, Start Year: 01-JAN-03

1шт.

8

1277785C1

BUSHING,15.9mm ID x 17.45mm OD x 28.57mm L

idler

1шт.

9

1277653C1

IDLER

roller

2шт.

10

86624155

WASHER,0.66" ID x 1.25" OD x 0.06" Thk

2шт.

Used with 1277838C1 idler

1шт.

10

86624155

WASHER,0.66" ID x 1.25" OD x 0.06" Thk

4шт.

Used with 417120A2 idler

1шт.

11

86624104

SNAP RING,#62, Ext

1шт.

Used with 1277838C1 idler

1шт.

11

86624104

SNAP RING,#62, Ext

3шт.

Used with 417120A2 idler

1шт.

12

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

1шт.

Not Shown

1шт.

13

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

14

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

15

57796C1

ROLLER

1шт.

16

134288C1

SPACER

roller

1шт.

17

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

1шт.

18

281006

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3", Gr 5

1шт.

19

86624142

WASHER,0.34" ID x 0.75" OD x 0.12" Thk

3шт.

20

86624150

WASHER,0.53" ID x 2" OD x 0.06" Thk

2шт.

21

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

22

197332A3

SUPPORT

assy hopper

1шт.

23

303068A1

BRACKET

bearing spindle mount assembly

1шт.

24

87407490

SPROCKET

and bearing assembly

1шт.

25

303247A1

BALL BEARING

vacuum seed meter

2шт.

26

86624140

WASHER,0.28" ID x 0.88" OD x 0.06" Thk

1шт.

27

86521549

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

28

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

29

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

30

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

31

9628503

NUT,3/8"-16, G5

2шт.

32

237999A1

CHAIN (AG)

seed meter drive

1шт.

Use 119 Links From 475879R91 Bulk Chain, Plus (1) 241-2314 Connecting Link

1шт.

32

352954A1

CHAIN (AG)

ASM meter drive (ext)

1шт.

Use 143 Links From 475879R91 Bulk Chain, Plus (1) 241-2314 Connecting Link

1шт.

32

475879R91

CHAIN (AG)

#41 - 10' s/p roller

1шт.

32

44428

CONNECTING LINK

#41 single pitch connecting

1шт.

33

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.
