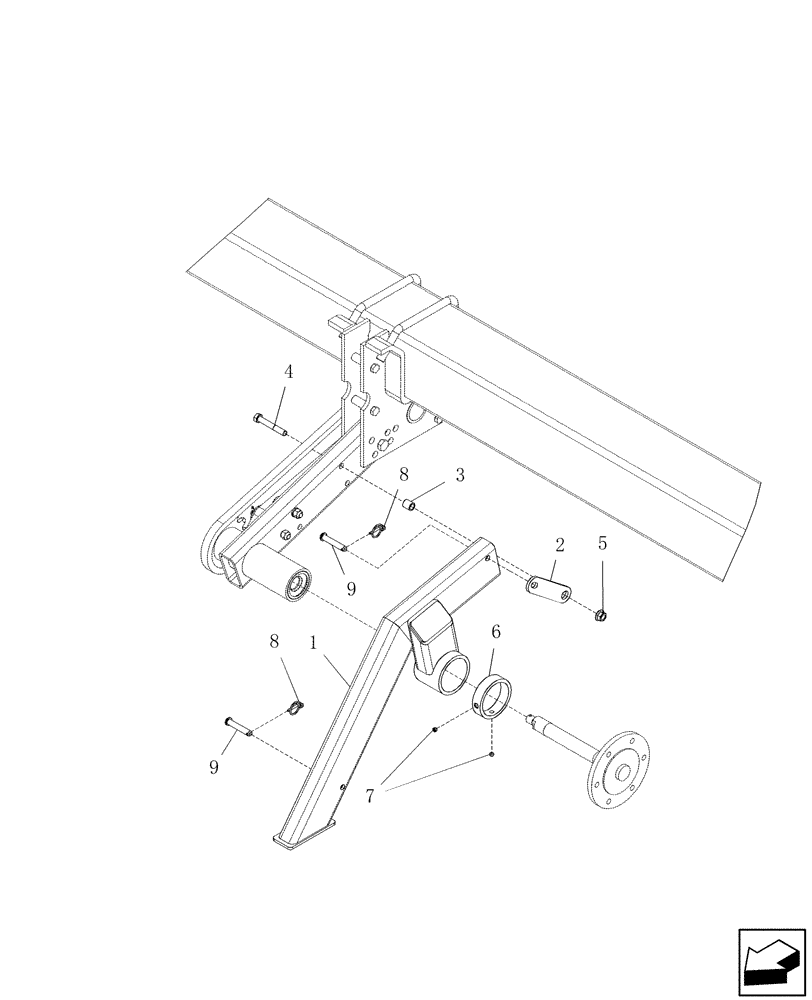

Запчасти Case IH 1200 (F.10.G[06]) - PARKING STAND - MOUNTED STACKER F - Frame Positioning

1

394211A1

ARM

parking stand

1шт.

2

394216A1

LINKAGE

parking stand

1шт.

3

586329R1

SPACER,3/4" Tube x 13/16"

1шт.

4

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

5

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

6

394217A1

COLLAR

parking stand

1шт.

7

86624121

SET SCREW,Hex Skt, 3/8" - 16 x 1/4"

2шт.

8

A33497

LINCH PIN,4.76mm OD Pin

Klik

2шт.

9

439-1844

HEADED PIN,1/2" x 2 3/4"

2шт.
