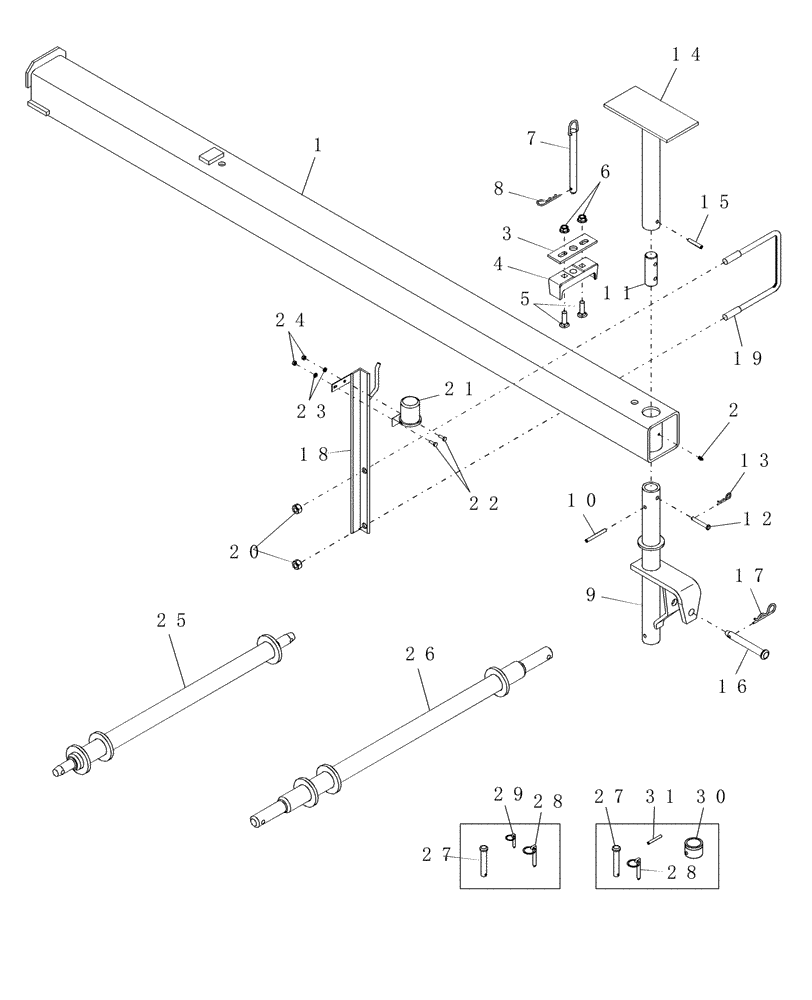

Запчасти Case IH 1200 (F.10.G[05]) - ENDWISE TRANSPORT HITCH AND STAND, 8 ROW RIGID TRAILING (BSN CBJ022936) F - Frame Positioning

1

141414C3

TUBE,153 mm Length

assembly, transport tongue

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

1шт.

3

149431C2

BAR

transport

1шт.

4

1250714C1

BLOCK

stop

1шт.

5

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

6

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

7

147460C1

PIN,19.05mm OD x 254.26mm L

hitch 3/4"

1шт.

8

87327559

COTTER PIN

9/64" x 2 15/16"

1шт.

9

149408C3

PIVOT

clevis

1шт.

10

438-32448

PIN,3/8" x 3", Coiled

1шт.

11

149407C1

ROD

support stand

1шт.

12

86624082

HEADED PIN,3/8" x 2 1/2", G2

1шт.

13

1978737C1

COTTER PIN,Int, 1/8" x 49mm

3 mm x 49 mm

1шт.

14

149405C1

STAND

parking

1шт.

15

438-32432

PIN,9.53mm OD x 50.8mm L

1шт.

16

542319R2

LINCH PIN

3/4" x 6" with hole

1шт.

17

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

1шт.

18

404915A1

SUPPORT

hose assembly

1шт.

19

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

1шт.

20

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

21

382110A1

CONTACT HOUSING

cap, Cole Hersee seven pin

1шт.

22

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

23

80682

LOCK WASHER,1/4"

2шт.

24

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

25

416855A1

AXLE

Cat II

1шт.

26

416857A1

AXLE

Cat III

1шт.

27

141292C2

PIN,19.05mm OD x 100mm L

2шт.

28

A33497

LINCH PIN,4.76mm OD Pin

Klik

2шт.

29

270184

LINCH PIN,6.35mm OD

1/4" x 1-3/4", Klik

2шт.

30

401233R1

COLLAR

thrust

2шт.

31

86624095

PIN,12.7mm OD x 50.8mm L

2шт.

32

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25"

2шт.

Not Shown

1шт.
