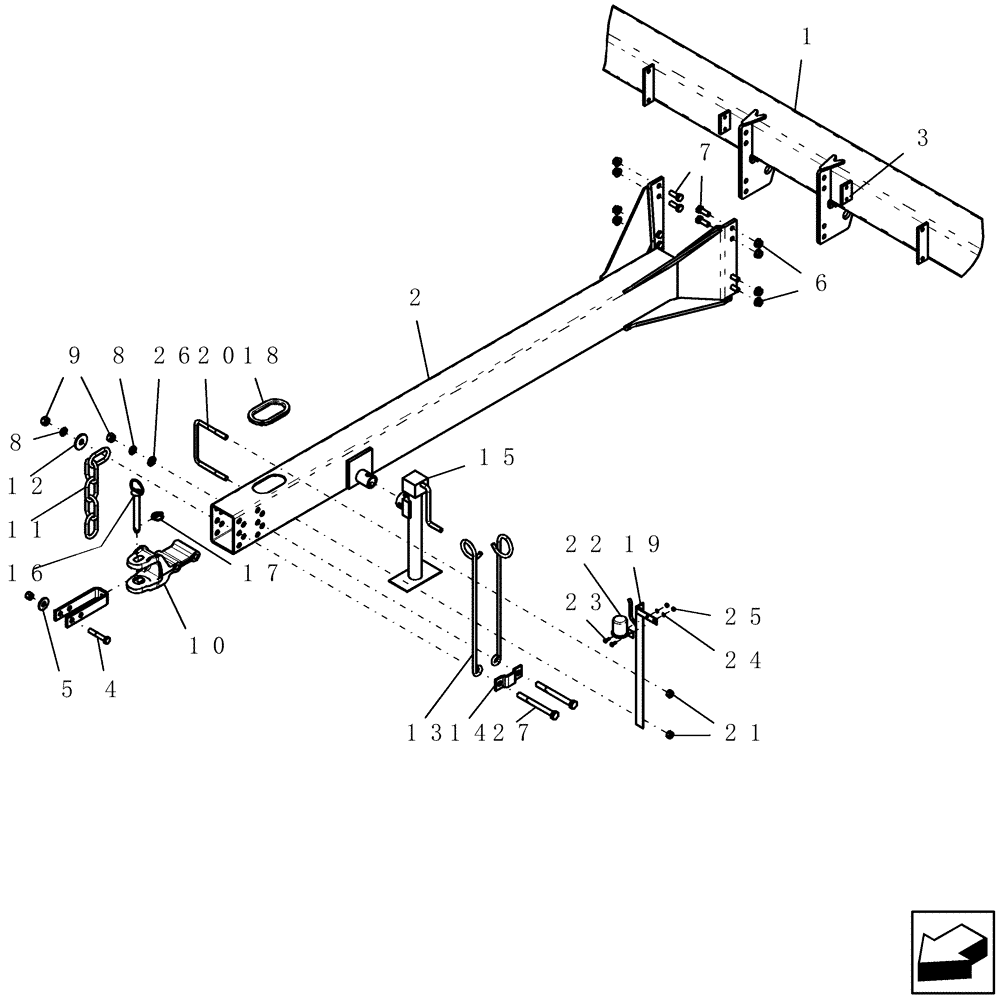

Запчасти Case IH 1200 (F.10.G[03]) - MAIN FRAME AND HITCH, 6 ROW RIGID TRAILING (ASN CBJ022936) F - Frame Positioning

1

87501698

FRAME

6 row narrow, trailing planter

1шт.

2

87502629

HITCH

rigid pole with decals

1шт.

3

1279163C1

CLEVIS COUPLING

safety chain

2шт.

4

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

5

86624159

WASHER,0.78" ID x 2" OD x 0.18" Thk

1шт.

6

86977731

FLANGE NUT,Hex Serr, 5/8" - 11, Gr 5

Flg, USR, 5/8"-11

8шт.

7

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

8шт.

8

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

9

280954

NUT,3/4"-10, G5

2шт.

10

1279040C1

CLEVIS

hitch

1шт.

11

1337593C1

CHAIN

safety 6000 lb, Years: -01-MAR-06

1шт.

11

87398915

CHAIN

safety 6400 lb, Start Year: 01-APR-06

1шт.

12

R52105

WASHER,19.45mm ID x 63.5mm OD x 6mm Thk

19.45 mm id x 63.5 mm od

1шт.

13

1279237C1

SUPPORT

hose

2шт.

14

137098C1

SUPPORT

bracket, pump mounting

1шт.

15

119354C1

JACK

side crank

1шт.

16

1277850C1

HITCH PIN,36.88mm OD x 239mm L

Assy

1шт.

17

270184

LINCH PIN,6.35mm OD

1/4" x 1-3/4", Klik

1шт.

18

1330108CX

SEAL,304.8mm L

Trim Edge Black, 250' Roll

1шт.

19

404915A1

SUPPORT

hose assembly

1шт.

20

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

us 5/8"-11 x 7" x 6 1/4", G5, 2" thread

1шт.

21

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

22

382110A1

CONTACT HOUSING

cap, Cole Hersee seven pin

1шт.

23

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

24

80682

LOCK WASHER,1/4"

2шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

26

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

27

281036

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

2шт.

30

1277910C2

CAUTION DECAL

1шт.

Not Shown

1шт.

31

220447A1

WARNING DECAL

Avoid Injury

1шт.

Not Shown

1шт.

32

220321A1

WARNING DECAL

Non-Power Implement

1шт.

Not Shown

1шт.

33

192848A2

DECAL

Case IH 70 mm logo

2шт.

Not Shown

1шт.
