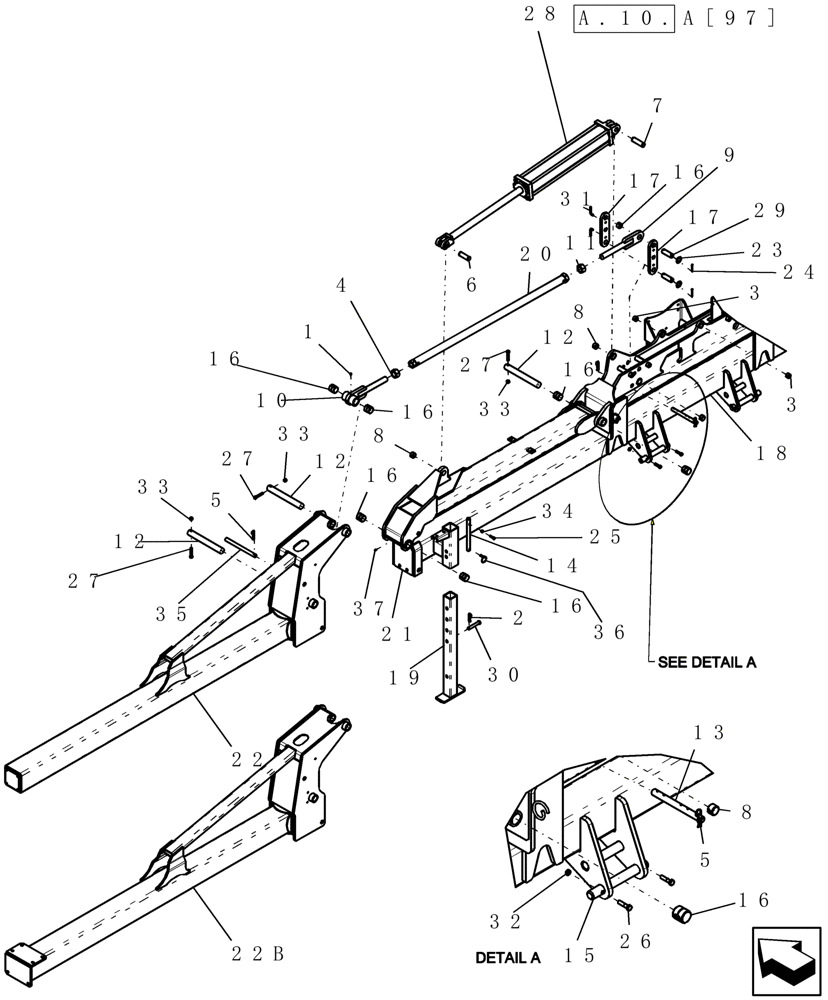

Запчасти Case IH 1200 (F.10.E[08]) - MAIN FRAME, 16 ROW MOUNTED STACKER F - Frame Positioning

1

87414

LUBE NIPPLE,1/4" - 28

6шт.

2

87327559

COTTER PIN

9/64" x 2 15/16"

2шт.

3

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

2шт.

4

425-1024

NUT,1 1/2"-6, G5

2шт.

5

87045537

HAIR PIN COTTER

.148 x 3 5/16"

6шт.

6

8973

PIN

cylinder, 1 1/4" x 3 3/8" ul with snap ring groove

1шт.

7

8974

PIN

cylinder, 1 1/4" x 4" ul with snap ring groove (#437327)mo

1шт.

8

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

8шт.

9

87690808

CLEVIS

adjustable LH

2шт.

10

87564620

CLEVIS

threaded adjuster RH

2шт.

11

87597952

NUT,Hex, 1-1/2" - 6, LH Thd, Gr 5

1 1/2"-6 G5 LH thread

2шт.

12

87630548

PIN

44.45 mm x 350 mm hardened

6шт.

13

87565221

PIN

gull wing lock

2шт.

14

87565222

PIN

wing lock

2шт.

15

87566119

PIN

lower 3 point

2шт.

16

87594339

BUSHING

tension 2 x 1 3/4 x 2 long

12шт.

17

87598687

PLATE

gull wing pivot arm

4шт.

18

87571661

FRAME

16 row narrow main

1шт.

19

87566136

STAND

8 row wide and 16 row narrow stacker

2шт.

20

87566134

TUBE,1661 mm L

linkage

2шт.

21

87566135

LINK

parallel lift arm

2шт.

22

87566137

FRAME

wing, Serial Range: -CBJ036000

2шт.

22b

87662962

FRAME

wing, Start Serial: CBJ036001

2шт.

23

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

4шт.

24

88182

COTTER PIN,1/4" OD x 2" L

4шт.

25

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

26

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

27

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

6шт.

28

87437293

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 762mm Stroke

5" x 30" Monarch 3000 psi without pins

1шт.

29

87565223

PIN

31.7 x 70.3 mm hardened

4шт.

30

86632566

HEADED PIN,3/4" x 4 1/2", G5

2шт.

31

408034A1

PIN

J lock 3/8" x 2 3/4"

4шт.

32

86632537

THIN NUT,1/2"-13, GB, Thin

4шт.

33

87333862

NUT

1/2"-13, GB

6шт.

34

88902

NUT,3/8"-16

2шт.

35

87566123

PIN

rigid toolbar

2шт.

36

6425

LINCH PIN

7/16" x 1 3/8"

2шт.

37

87414

LUBE NIPPLE,1/4" - 28

4шт.
