Запчасти Case IH 1200 (F.10.E[07]) - MAIN FRAME, 12 ROW WIDE MOUNTED STACKER ASN CBJ036001 F - Frame Positioning

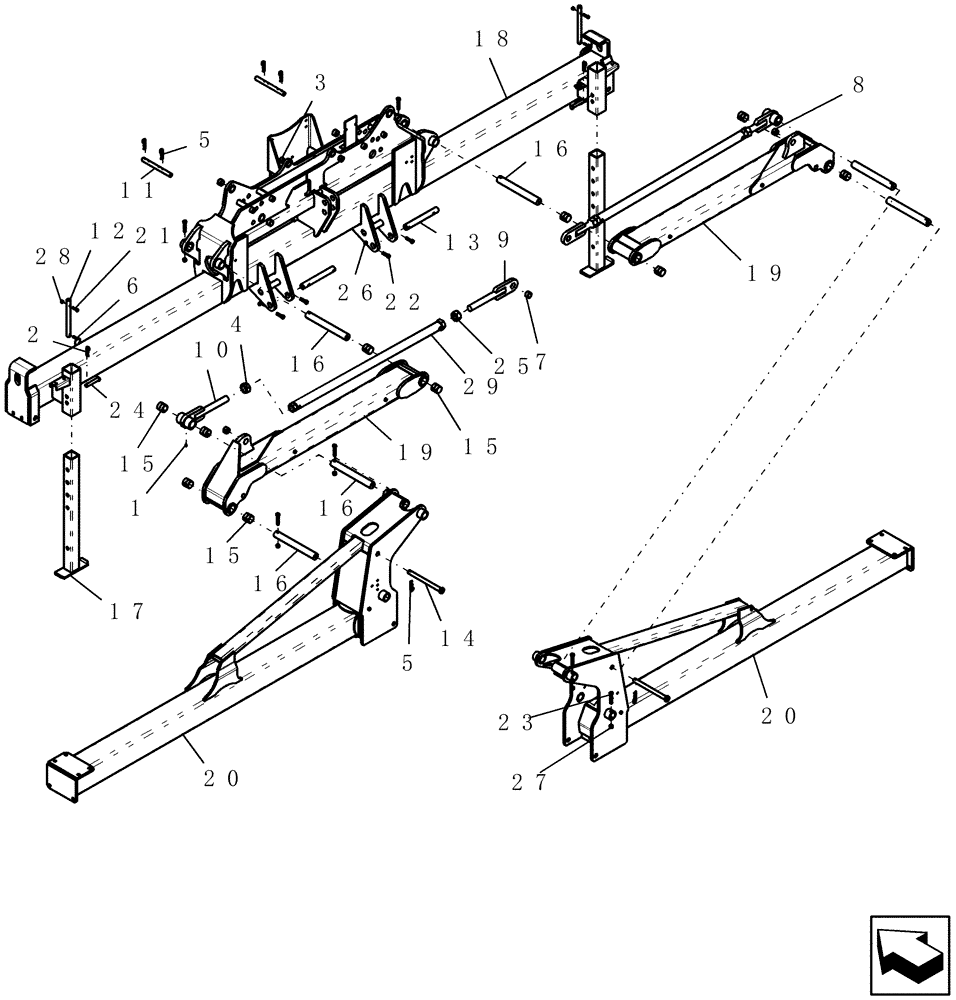

Схема запчастей Case IH 1200 - (F.10.E[07]) - MAIN FRAME, 12 ROW WIDE MOUNTED STACKER ASN CBJ036001 F - Frame Positioning
5
15
16
29
25
20
15
4
7
17
21
10
19
16
27
3
16
19
20
23
12
1
9
6
14
16
26
15
18
8
24
5
22
13
28
11
2

Артикул

Название

Примечание

Количество

1

87414

LUBE NIPPLE,1/4" - 28

2шт.

2

87327559

COTTER PIN

9/64" x 2 15/16"

2шт.

3

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

2шт.

4

425-1024

NUT,1 1/2"-6, G5

2шт.

5

87045537

HAIR PIN COTTER

.148 x 3 5/16"

6шт.

6

6425

LINCH PIN

7/16" x 1 3/8"

2шт.

7

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

4шт.

8

87505190

BUSHING

tension 1 1/2" x 1 1/4" x 1"

4шт.

9

87690808

CLEVIS

adjustable LH

2шт.

10

87564620

CLEVIS

threaded adjuster RH

2шт.

11

87565221

PIN

gull wing lock

2шт.

12

87565222

PIN

wing lock

2шт.

13

87566119

PIN

lower 3 point

2шт.

14

87566123

PIN

rigid toolbar

2шт.

15

87594339

BUSHING

tension 2 x 1 3/4 x 2 long

12шт.

16

87630548

PIN

44.45 mm x 350 mm hardened

6шт.

17

87566136

STAND

8 row wide and 16 row narrow stacker

2шт.

18

87648743

FRAME

12 row wide 36-38 stacker center

1шт.

19

87648742

LIFT ARM

link parallel

2шт.

20

87648741

BEAM

wing

2шт.

21

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

22

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

23

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

6шт.

24

86632566

HEADED PIN,3/4" x 4 1/2", G5

2шт.

25

87597952

NUT,Hex, 1-1/2" - 6, LH Thd, Gr 5

1 1/2"-6 G5 LH thread

2шт.

26

86632537

THIN NUT,1/2"-13, GB, Thin

4шт.

27

87333862

NUT

1/2"-13, GB

6шт.

28

87039402

NUT,3/8"-16, GB

2шт.

29

87648740

TUBE,1411 mm L

linkage

2шт.

Выбрано товаров: 29
