Запчасти Case IH 1200 (F.10.E[06]) - MAIN FRAME, 12 ROW WIDE MOUNTED STACKER BSN CBJ036000 F - Frame Positioning

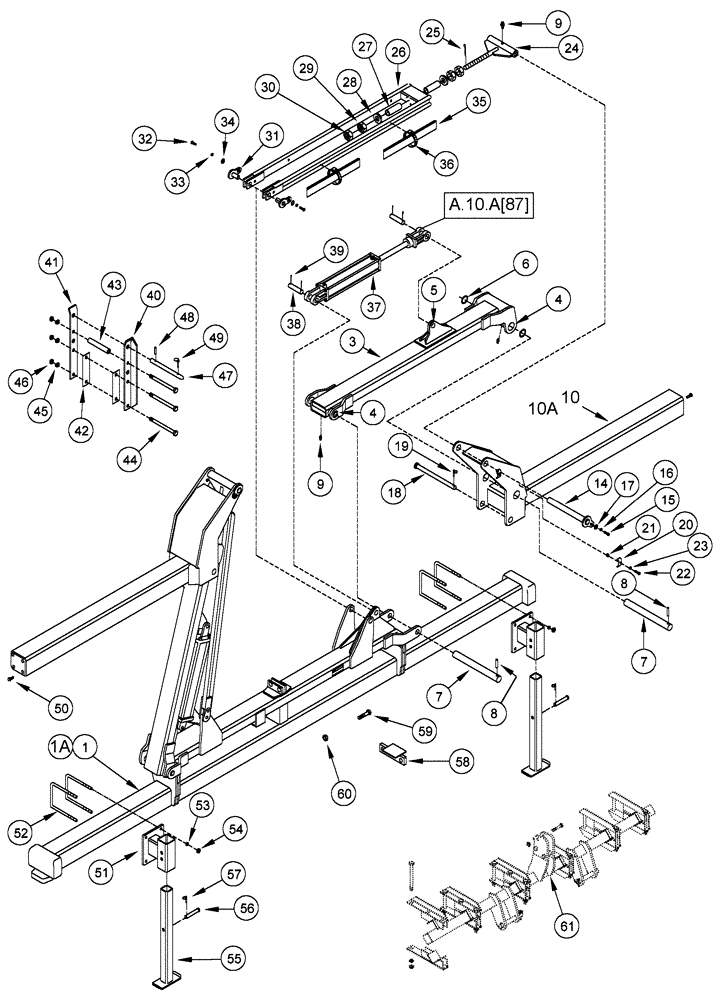

Схема запчастей Case IH 1200 - (F.10.E[06]) - MAIN FRAME, 12 ROW WIDE MOUNTED STACKER BSN CBJ036000 F - Frame Positioning
19
49
4
57
32
1a
8
45
9
38
9
20
16
33
41
21
43
53
10
36
26
14
54
29
47
10a
22
37
15
44
52
18
51
42
7
56
31
5
58
24
a.10.a[87]
50
6
60
30
34
59
39
7
1
17
55
46
40
48
23
3
4
28
27
61
35
8
25

Артикул

Название

Примечание

Количество

1

330609A1

FRAME

stacker bar, center section

1шт.

36" Spacing

1шт.

1a

330550A1

FRAME

12 row wide 38" and 40" stacker, center section

1шт.

12 Row Wide

1шт.

38 & 40" Spacing

1шт.

3

330556A1

FRAME

12 row wide, 36", 38" and 40" planter

2шт.

36, 38 & 40" Spacing

1шт.

4

356913A1

BUSHING

2.125" od x 1.754" id x 2"

4шт.

Not Shown

1шт.

5

356912A1

BUSHING

1 1/4" id x 1 1/2" od x 1" long

1шт.

Not Shown

1шт.

6

355965A1

BUSHING

2 1/2" od x 1 3/4" x 10 ga

8шт.

7

337382A1

PIN,44.45mm OD x 411.18mm L

wing hinge

4шт.

8

86624095

PIN,12.7mm OD x 50.8mm L

4шт.

9

87414

LUBE NIPPLE,1/4" - 28

6шт.

10

330610A1

FRAME

stacker bar wing

1шт.

36" Spacing

1шт.

10a

330555A1

FRAME

12 row 38" and 40" wing

1шт.

38 & 40" Spacing

1шт.

14

337364A1

PIN,38.1mm OD x 352.55mm L

wing top attachment

2шт.

15

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

17

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

18

337378A1

PIN

wing lock

2шт.

19

A61560

LOCK PIN

Klik

2шт.

20

355977A1

CLAMP

stacker bar hose

4шт.

21

356106A1

SPACER

stacker bar hose clamp

4шт.

22

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

23

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

12шт.

24

330558A1

TURNBUCKLE

linkage leveler 900'

2шт.

25

88182

COTTER PIN,1/4" OD x 2" L

2шт.

26

330611A1

FRAME

linkage for 12R36

2шт.

27

PL

PROCURE LOCALLY

SPACER Turnbuckle

4шт.

28

87016392

WASHER,1.38" ID x 2.5" OD x 0.16" Thk

4шт.

29

NSS

NOT SOLD SEPARAT

nut Hex, 1 3/8"-6

4шт.

30

NSS

NOT SOLD SEPARAT

nut Jam, 1 3/8"-6, Right Hand Thread

4шт.

31

337380A1

PIN,25.4mm OD x 213mm L

1" x 4 1/4" with flag

4шт.

32

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

34

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

35

337368A1

CHANNEL

hyd hose

4шт.

36

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

4шт.

37

324548A1

CYLINDER

5" x 24", Years: -31-JUL-02, Serial Range: -CBJ0001760

2шт.

37

86989791

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 609.6mm Stroke

5" x 24", double acting, Start Year: 01-AUG-02, Start Serial: CBJ0001763

2шт.

38

439278A1

CLEVIS PIN

1" x 3" with keeper pins

2шт.

39

86523851

COTTER PIN,5/32" x 1 1/4"

4шт.

40

337366A1

BRACKET

swing truss rest upright

2шт.

41

337367A1

BRACKET

swing truss rest upright

2шт.

42

337387A1

PLATE

wear

2шт.

43

356107A1

BUSHING

swing truss rest spacer

2шт.

44

280441

BOLT,Hex, 3/4" - 10 x 9", Gr 5

6шт.

45

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

6шт.

46

280954

NUT,3/4"-10, G5

7шт.

47

337385A1

PIN

swing truss rest

2шт.

48

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

2шт.

49

A61560

LOCK PIN

Klik

2шт.

50

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

8шт.

51

330562A1

SLEEVE

double bar stand

2шт.

52

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

4шт.

53

12034871

WASHER

5/8"

8шт.

54

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.

55

330503A1

STAND

8 row wide and 12 row narrow stacker bar

2шт.

12 Row Narrow

1шт.

8 Row Wide

1шт.

56

355976A1

PIN,19.05mm OD x 126.64mm L

7" x 7" standard x 4 3/16"

2шт.

57

A61560

LOCK PIN

Klik

2шт.

58

337388A1

BRACKET

tie back-valve mount

1шт.

59

86622977

BOLT,Hex, 1" - 8 x 3 1/4", Gr 8

2шт.

60

86755

NUT,1"-8, GB

2шт.

61

REF

INSTRUCTION

hitch assembly

1шт.

62

1330108CX

SEAL,304.8mm L

Trim Edge Black, 250' Roll

1шт.

Not Shown

1шт.
