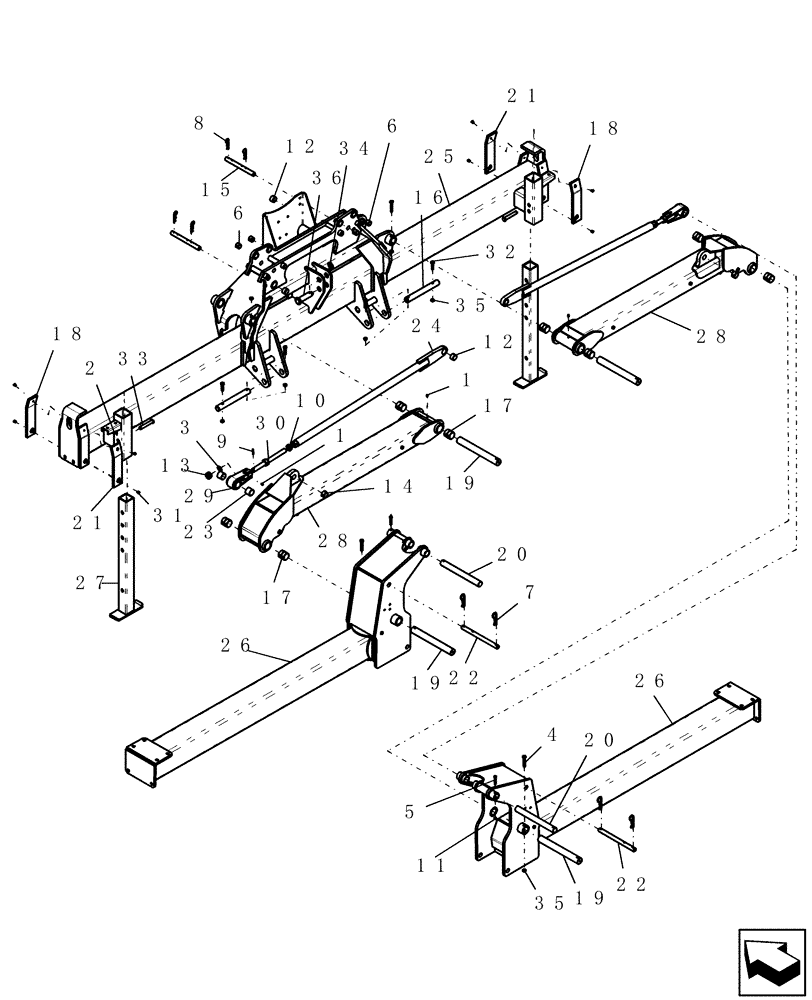

Запчасти Case IH 1200 (F.10.E[05]) - MAIN FRAME, 12 ROW NARROW MOUNTED STACKER ASN CBJ036001 F - Frame Positioning

1

87414

LUBE NIPPLE,1/4" - 28

6шт.

2

87327559

COTTER PIN

9/64" x 2 15/16"

2шт.

3

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

2шт.

4

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

5

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

6

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

4шт.

7

3682

HAIR PIN COTTER

.243" x 4"

4шт.

8

87045537

HAIR PIN COTTER

.148 x 3 5/16"

4шт.

9

87406

LOCK PIN,6.35mm OD x 38.1mm L, Slotted

2шт.

10

87553819

JAM NUT

1"-8 Hex, Jam

2шт.

11

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

12

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

4шт.

13

7827

SLOTTED NUT,1"-8, G2

2шт.

14

87505190

BUSHING

tension 1 1/2" x 1 1/4" x 1"

2шт.

15

87565221

PIN

gull wing lock

2шт.

16

87566119

PIN

lower 3 point

2шт.

17

87594339

BUSHING

tension 2 x 1 3/4 x 2 long

8шт.

18

87623822

GUIDE

uhmw 1/2" x 3" wing rear lf

2шт.

19

87630548

PIN

44.45 mm x 350 mm hardened

4шт.

20

87630549

PIN

1 1/2" x 13 9/32"

2шт.

21

87630550

GUIDE

uhmw 1/2" x 3" wing rf lr

2шт.

22

87653801

PIN,25.4mm OD x 340mm L

1" x 11 7/16"

2шт.

23

87686636

BUSHING,1-1/2" ID x 1-3/4" OD x 1-1/2" Thk

composite 1 3/4" x 1 1/2" x 1 1/2"

4шт.

24

87630535

LIFT ARM

tension arm 12 row narrow

2шт.

25

87623831

FRAME

12 row narrow stacker bar

1шт.

26

87623833

BEAM

wing, 12 row narrow

2шт.

27

87566136

STAND

8 row wide and 16 row narrow stacker

2шт.

28

87630534

LIFT ARM

12 row narrow parallel

2шт.

29

87630536

COUPLING

T, tension link

2шт.

30

87565220

STUD

tension link adjust

2шт.

31

151-572

RIVET,Pop, 1/4" x 1 1/4"

8шт.

32

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

33

86632566

HEADED PIN,3/4" x 4 1/2", G5

2шт.

34

372907R91

LINCH PIN

linch 7/16" x 2" heavy duty

1шт.

35

86632537

THIN NUT,1/2"-13, GB, Thin

8шт.

36

392211R2

PIN

link

1шт.
