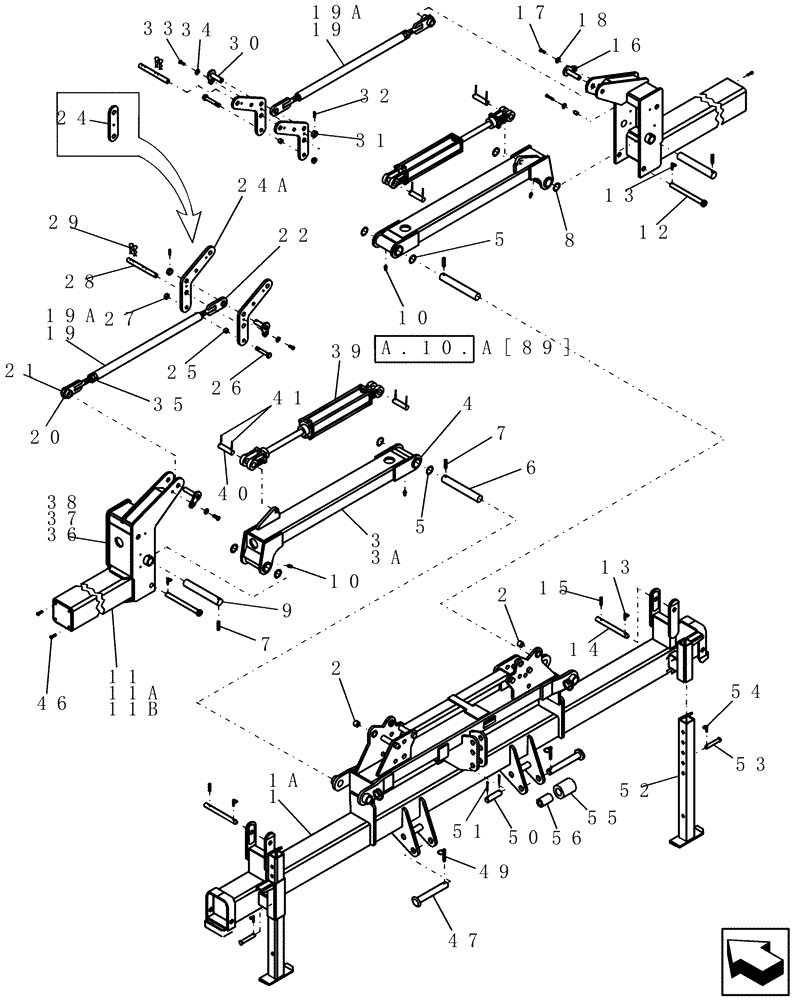

Запчасти Case IH 1200 (F.10.E[03]) - MAIN FRAME, 8 ROW WIDE AND 12 ROW NARROW MOUNTED STACKER BSN CBJ036000 F - Frame Positioning

1

330498A1

FRAME

package, 8 row wide, 36" stacker, center section

1шт.

8 Row Wide

1шт.

8 Row Wide - 36" Spacing

1шт.

1a

330516A1

FRAME

package, 12 row narrow, center section

1шт.

12 Row Narrow

1шт.

Shown

1шт.

2

355963A1

BUSHING

1-1/4" od x 1" id x 1"

2шт.

3

330500A1

FRAME

8 row wide, 36" stacker swing truss

2шт.

8 Row Wide

1шт.

8 Row Wide - 36" Spacing

1шт.

3a

330519A1

FRAME

12 row narrow stacker, wing truss

2шт.

12 Row Narrow

1шт.

4

356913A1

BUSHING

2.125" od x 1.754" id x 2"

4шт.

Not Shown

1шт.

5

355965A1

BUSHING

2 1/2" od x 1 3/4" x 10 ga

8шт.

6

355979A1

PIN

stacker bar center truss

2шт.

7

86624095

PIN,12.7mm OD x 50.8mm L

4шт.

8

355964A1

BUSHING

1 1/2" od x 1 3/4" od x 14 ga

4шт.

9

355978A1

PIN

stacker bar wing attachment

2шт.

10

87414

LUBE NIPPLE,1/4" - 28

6шт.

11

330499A1

FRAME

8 row wide, 36" stacker wing

2шт.

11a

330767A1

BAR

stacker wing

2шт.

8 Row Wide

1шт.

38 & 40" Spacing

1шт.

11b

330517A1

FRAME

12 row narrow, stacker wing

2шт.

12

355966A1

PIN

stacker bar wing lock

2шт.

13

A61560

LOCK PIN

Klik

4шт.

14

337363A1

PIN,25.4mm OD x 285.75mm L

swing truss rest

2шт.

15

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

2шт.

16

355973A1

PIN,25.4mm OD x 107.95mm L

truss cylinder

2шт.

17

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

18

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

19

330506A1

LINK

8 row wide, 36" stacker bar

2шт.

8 Row Wide - 36" Spacing

1шт.

19a

330520A1

LINK

12 row narrow stacker bar

2шт.

12 Row Narrow

1шт.

20

330502A1

ADJUSTMENT SCREW

8 row wide and 12 row narrow stacker bar adjuster

2шт.

12 Row Narrow

1шт.

8 Row Wide

1шт.

21

355963A1

BUSHING

1-1/4" od x 1" id x 1"

2шт.

22

330501A1

ADJUSTMENT SCREW

8 row wide and 12 row narrow stacker bar adjuster

2шт.

12 Row Narrow

1шт.

8 Row Wide

1шт.

24

330521A1

STRAP

stacker bar float

4шт.

8 Row Wide

1шт.

24a

332356A1

STRAP

12 row narrow stacker float

4шт.

Shown

1шт.

25

355968A1

BUSHING

bar, float strap

2шт.

26

382101

BOLT,Hex, M20 x 2.5 x 80mm, Cl 8.8

2шт.

27

264031

NUT,M20 x 2.5, Cl 10

2шт.

28

355967A1

PIN,25.4mm OD x 254mm L

stacker bar float lock

2шт.

29

PL

PROCURE LOCALLY

PIN Hair Clip, 11/64" x 3 3/4"

4шт.

30

355980A1

PIN

stacker bar linkage

2шт.

31

355975A1

COLLAR

pin cylinder

2шт.

32

86624089

PIN,7.94mm OD x 38.1mm L

2шт.

33

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

34

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

35

425-1118

NUT,1 1/8"-12, G5

2шт.

36

355977A1

CLAMP

stacker bar hose

2шт.

37

355972A1

BUSHING

spacer, hose clamp

2шт.

38

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

39

302286A1

CYLINDER

4" x 24", Years: -25-JUL-03

2шт.

39

86989790

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 609.6mm Stroke

4" x 24", double acting, Start Year: 26-JUL-03

2шт.

40

439278A1

CLEVIS PIN

1" x 3" with keeper pins

2шт.

41

86523851

COTTER PIN,5/32" x 1 1/4"

4шт.

46

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

8шт.

47

188536A1

HITCH PIN,36.3mm OD x 233mm L

hitch

2шт.

49

372907R91

LINCH PIN

linch 7/16" x 2" heavy duty

3шт.

50

392211R2

PIN

link

1шт.

51

80752

COTTER PIN,1/4" x 2 1/2"

2шт.

52

330503A1

STAND

8 row wide and 12 row narrow stacker bar

2шт.

12 Row Narrow

1шт.

8 Row Wide

1шт.

53

355976A1

PIN,19.05mm OD x 126.64mm L

7" x 7" standard x 4 3/16"

2шт.

54

A61560

LOCK PIN

Klik

2шт.

55

599801R1

SPACER

pin, inner

2шт.

56

599802R1

SPACER

pin outer

2шт.

57

1330108CX

SEAL,304.8mm L

Trim Edge Black, 250' Roll

1шт.

Not Shown

1шт.
