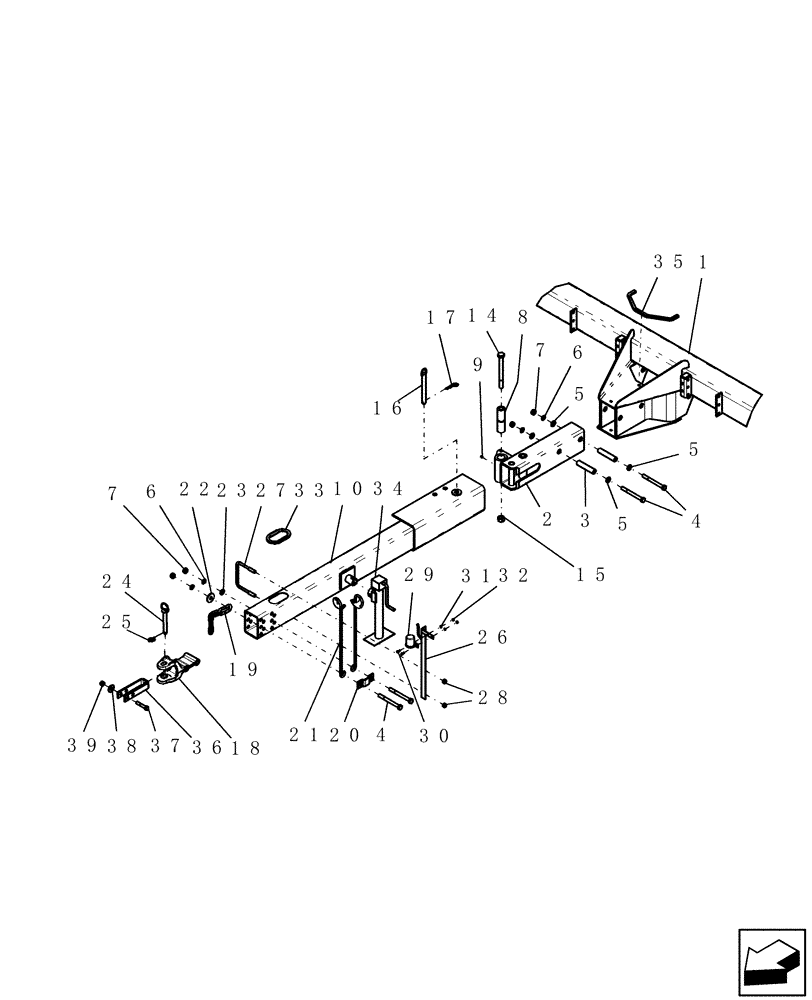

Запчасти Case IH 1200 (F.10.E[01]) - MAIN FRAME AND FOLDING HITCH, 8 ROW RIGID TRAILING BSN CBJ036114 F - Frame Positioning

1

87504802

KIT

frame, 8 row trailing planter

1шт.

2

391657A1

TOW BAR

tube

1шт.

3

1250748C2

SPACER

2шт.

4

281036

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

4шт.

5

86624162

WASHER,0.81" ID x 1.5" OD x 0.18" Thk

4шт.

6

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

7

280954

NUT,3/4"-10, G5

4шт.

8

1250754C1

SPACER

pivot

1шт.

9

87414

LUBE NIPPLE,1/4" - 28

1шт.

10

87502638

HITCH

pole, folding, with decals

1шт.

11

1277910C2

CAUTION DECAL

1шт.

Not Shown

1шт.

12

220447A1

WARNING DECAL

Avoid Injury

1шт.

Not Shown

1шт.

13

220321A1

WARNING DECAL

Non-Power Implement

1шт.

Not Shown

1шт.

14

86622975

BOLT,Hex, 1" - 8 x 10", Gr 8

1шт.

15

9626600

NUT,1"-8, GC

1шт.

16

1250775C2

PIN

assembly, 1" tongue

1шт.

17

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

1шт.

18

1279040C1

CLEVIS

hitch

1шт.

19

100682C3

CHAIN (AG)

10,000 lb safety, Years: -01-MAR-06

1шт.

19

87398923

CHAIN

safety 10,100 lb, Start Year: 01-APR-06

1шт.

20

137098C1

SUPPORT

bracket, pump mounting

1шт.

21

1279237C1

SUPPORT

hose

2шт.

22

R52105

WASHER,19.45mm ID x 63.5mm OD x 6mm Thk

19.45 mm id x 63.5 mm od

1шт.

23

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

24

1277850C1

HITCH PIN,36.88mm OD x 239mm L

Assy

1шт.

25

270184

LINCH PIN,6.35mm OD

1/4" x 1-3/4", Klik

1шт.

26

404915A1

SUPPORT

hose assembly

1шт.

27

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

us 5/8"-11 x 7" x 6 1/4", G5, 2" thread

1шт.

28

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

29

382110A1

CONTACT HOUSING

cap, Cole Hersee seven pin

1шт.

30

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

31

80682

LOCK WASHER,1/4"

2шт.

32

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

33

1330108CX

SEAL,304.8mm L

Trim Edge Black, 250' Roll

1шт.

34

119354C1

JACK

side crank

1шт.

35

1330108CX

SEAL,304.8mm L

Trim Edge Black, 250' Roll

1шт.

36

1279163C1

CLEVIS COUPLING

safety chain

1шт.

37

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

38

86624159

WASHER,0.78" ID x 2" OD x 0.18" Thk

1шт.

39

86639566

NUT,5/8"-11, GB

2шт.
