Запчасти Case IH 1200 (F.10.B[05]) - GULL WING ATTACHMENT HYDRAULICS - 12 ROW WIDE AND 16 ROW MOUNTED STACKER F - Frame Positioning

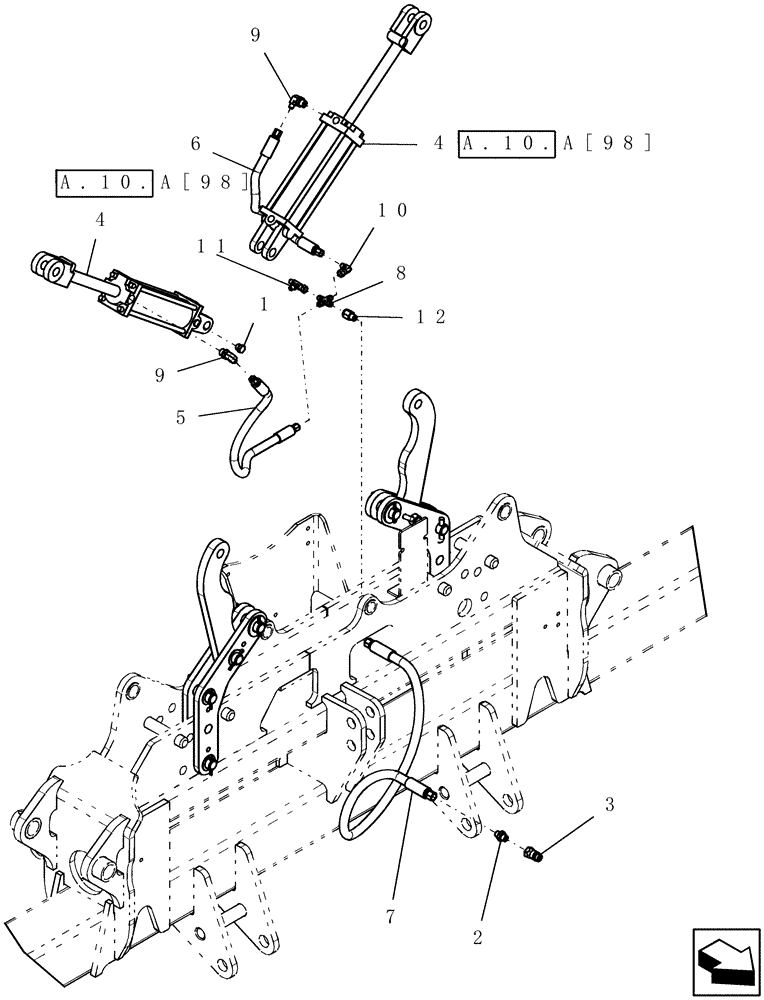

Схема запчастей Case IH 1200 - (F.10.B[05]) - GULL WING ATTACHMENT HYDRAULICS - 12 ROW WIDE AND 16 ROW MOUNTED STACKER F - Frame Positioning
9
2
8
4
10
9
1
4
7
5
6
3
12
11

Артикул

Название

Примечание

Количество

1

9479

PLUG

fitting aluminum breather 1/2" mb c/w o-ring

2шт.

2

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

3

87506450

QUICK MALE COUPLING

1/2"m-tip x 1/2" fb poppet style

1шт.

4

87660741

HYDRAULIC CYLINDER,31.75mm Rod, 254mm Stroke

3" x 10" 3000 psi, no pins, single acting

2шт.

5

1270453C1

HYDRAULIC HOSE

3/8" x 35" long

1шт.

6

1270453C1

HYDRAULIC HOSE

3/8" x 35" long

1шт.

7

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

1/2" x 50" fl

1шт.

8

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

1шт.

9

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

2шт.

10

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

11

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

12

87411460

REDUCER

steel 1/2" mj x 3/8" fj

1шт.

Выбрано товаров: 12
