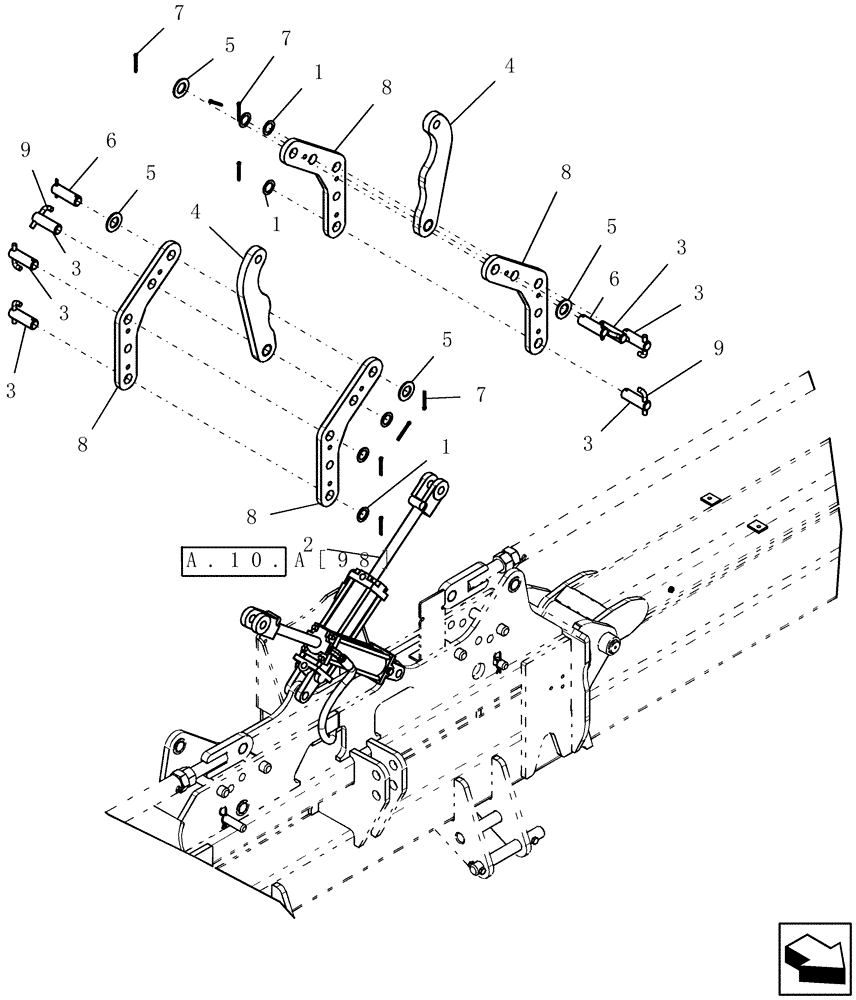

Запчасти Case IH 1200 (F.10.B[04]) - GULL WING ATTACHMENT LINKAGE - 12 ROW WIDE AND 16 ROW MOUNTED STACKER F - Frame Positioning

1

87325445

WASHER,1.25" ID x 1.88" OD x 0.07" Thk

1 1/4" id 1 7/8" 14ga

6шт.

2

87660741

HYDRAULIC CYLINDER,31.75mm Rod, 254mm Stroke

3" x 10" 3000 psi, no pins, single acting

2шт.

3

87565223

PIN

31.7 x 70.3 mm hardened

6шт.

4

87739810

PLATE

gull lever arm 12 row wide and 16 row

2шт.

5

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

4шт.

6

87630552

PIN

31.75 mm x 72 mm

2шт.

7

88182

COTTER PIN,1/4" OD x 2" L

10шт.

8

87739812

PIVOT PLATE

gull wing 12 row wide and 16 row narrow

4шт.

9

408033A1

PIN

J lock 1/2" x 3 3/8"

6шт.
