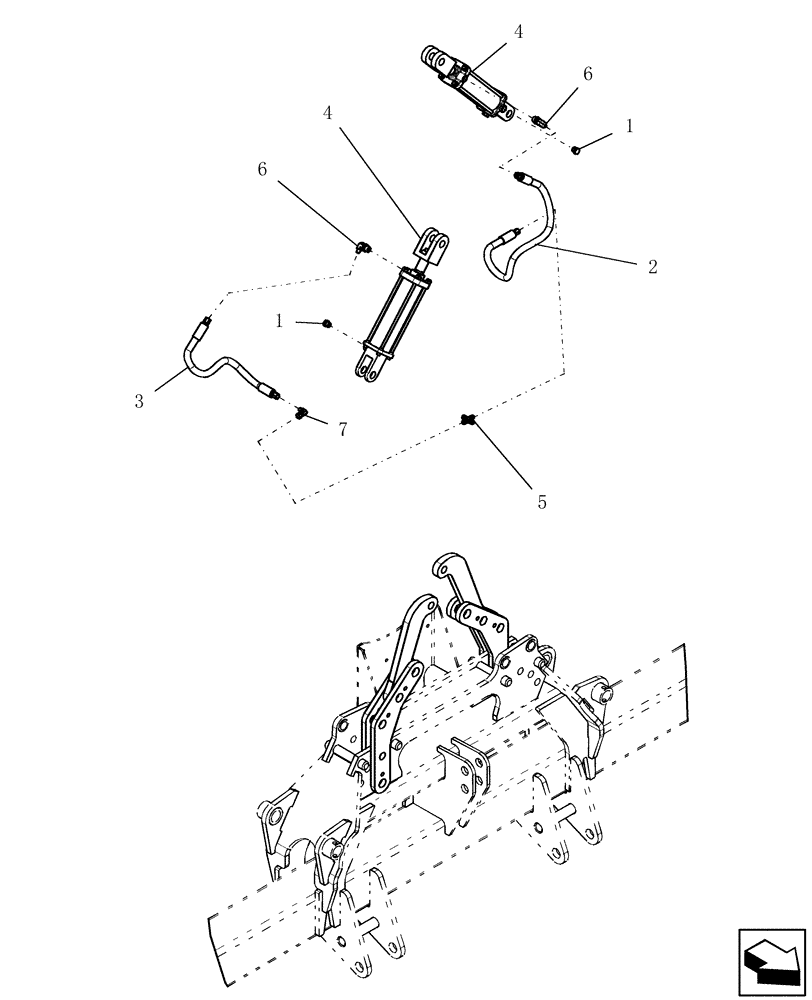

Запчасти Case IH 1200 (F.10.B[03]) - GULL WING ATTACHMENT HYDRAULICS - 12 ROW NARROW ASN CBJ036001 F - Frame Positioning

1

9479

PLUG

fitting aluminum breather 1/2" mb c/w o-ring

2шт.

2

1270453C1

HYDRAULIC HOSE

3/8" x 35" long

1шт.

3

1270453C1

HYDRAULIC HOSE

3/8" x 35" long

1шт.

4

87671455

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 203.2mm Stroke

2 1/2" x 8", 3000 psi, no pins

2шт.

5

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

1шт.

6

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

2шт.

7

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.
