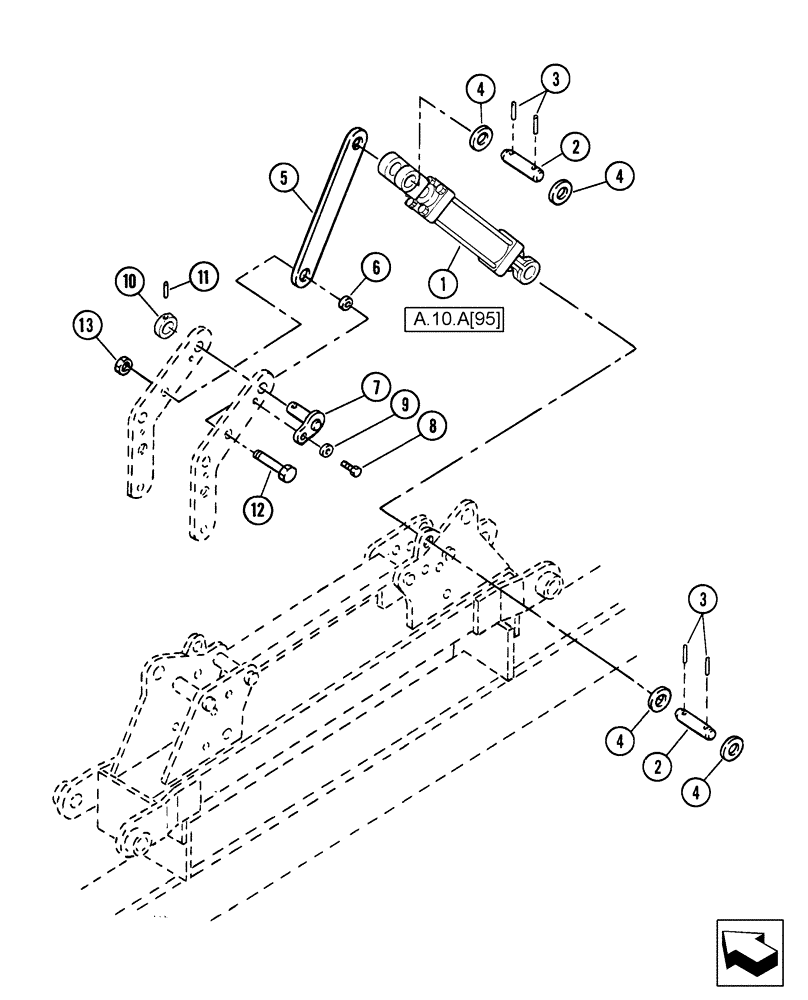

Запчасти Case IH 1200 (F.10.B[01]) - GULL WING ATTACHMENT LINKAGE, 12 ROW NARROW BSN CBJ036000 F - Frame Positioning

0

357203A2

KIT

12 row narrow, gull wing

1шт.

1

357157A1

HYDRAULIC CYLINDER,Double Acting, 203.2mm Stroke

64 mm (2 1/2") id x 203 mm (8") stroke

2шт.

2

NSS

NOT SOLD SEPARAT

pin

1шт.

3

NSS

NOT SOLD SEPARAT

pin Roll

2шт.

4

NSS

NOT SOLD SEPARAT

washer

2шт.

5

356568A1

LINK

12 row narrow stacker bar, gull wing

2шт.

12 Row Narrow

1шт.

6

355968A1

BUSHING

bar, float strap

2шт.

7

355980A1

PIN

stacker bar linkage

4шт.

8

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

9

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

10

355975A1

COLLAR

pin cylinder

2шт.

11

86624089

PIN,7.94mm OD x 38.1mm L

2шт.

12

382101

BOLT,Hex, M20 x 2.5 x 80mm, Cl 8.8

4шт.

13

832-41320

NUT,M20 x 2.5, Cl 10

4шт.
