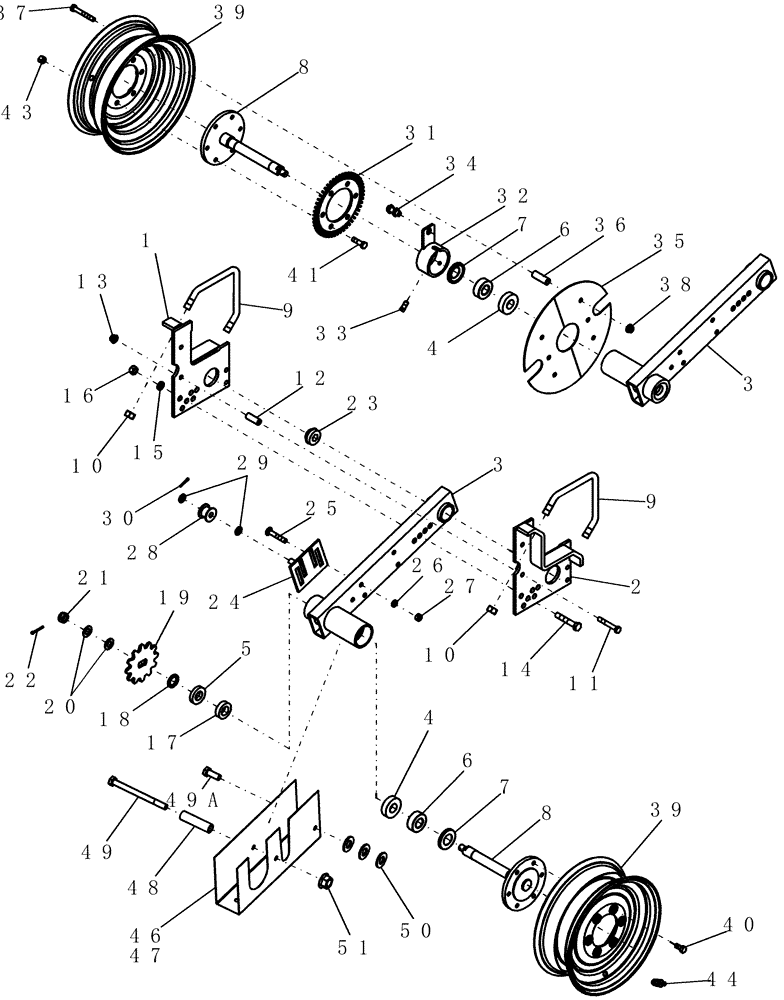

Запчасти Case IH 1200 (D.20.B[11]) - DRIVE WHEELS - SINGLE ARM, MOUNTED RIGID AND STACKER (BSN CBJ036114) D - Travel

1

191971A2

SUPPORT

wheel mount, LH

1шт.

2

191972A2

SUPPORT

wheel mount, RH

1шт.

3

233116A1

ARM

assembly with bearing cups installed

1шт.

4

51200379

BEARING CUP,69.9mm OD x 18.95mm W

#2523

1шт.

5

36723

BEARING CUP,59.16mm OD x 11.81mm W

#LM67010

1шт.

6

1264322C91

ROLLER BEARING

#2582

1шт.

7

137231C1

SEAL

drive wheel shaft

1шт.

8

134117C4

SHAFT

drive wheel

1шт.

9

192263A1

SPECIAL BOLT,V, 3/4" - 10, 7" x 7"

V 3/4"-10 x 7"

2шт.

10

280954

NUT,3/4"-10, G5

4шт.

11

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

4шт.

12

23885K

SPACER,3/4" Tube x 2 1/16"

4шт.

13

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

14

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

15

12034871

WASHER

5/8"

1шт.

16

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

17

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

with seal, spindle inner

1шт.

18

134120C4

SPACER

1шт.

19

1277736C1

SPROCKET

drive wheel, 12 tooth

1шт.

20

86624157

WASHER,0.78" ID x 1.5" OD x 0.06" Thk

2шт.

21

425-1212

SLOTTED NUT,3/4"-10, G5

1шт.

22

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

23

134181C92

BALL BEARING,2.125" OD x 0.046"

ball, 7/8" hex bore

1шт.

24

193948A1

IDLER

wheel drive

1шт.

25

280818

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

2шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

27

280431

NUT,1/2"-13, G5

2шт.

28

1277726C1

ROLLER,48mm OD x 34mm L

idler

1шт.

29

86624154

WASHER,0.66" ID x 1.12" OD x 0.05" Thk

2шт.

30

394818

COTTER PIN,M5 x 25

1шт.

31

373803A1

SPROCKET

wheel speed sensor

1шт.

32

329502A1

BRACKET

speed sensor

1шт.

33

86624113

SET SCREW,Sq Hd, 1/2" - 13 x 3/4"

2шт.

34

324049A1

SENSOR

speed hall

1шт.

35

356929A1

COVER

wheel, 6 row trailing

2шт.

36

417151A1

SPACER,1/2" Pipe x 2.441"

4шт.

37

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

4шт.

38

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

39

349203A1

WHEEL

15 X 5 6H with valve guard

1шт.

40

198056

WHEEL BOLT,1/2" - 20 x 1.031"

6шт.

41

86622972

BOLT,Spcl, Hex, 1/2" - 20 x 2 1/4", Gr 8, Full Thd

6шт.

43

F23214

WHEEL NUT

hub wheel - h517 & h617

6шт.

44

810769C1

VALVE

tire stem VS/936

1шт.

46

428926A1

GASKET

attachment, planter wheel chain guard

1шт.

46

147233C3

SUPPORT

chain guard LH

1шт.

47

147234C3

SUPPORT

chain guard RH

1шт.

48

147232C3

SPACER

chain guard

4шт.

49

9627857

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

1шт.

49a

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

50

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

6шт.

51

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

52

86977690

LOCK WASHER,Ext Tooth, 5/8"

2шт.

Not Shown - for use with sensor 324049A1

1шт.
