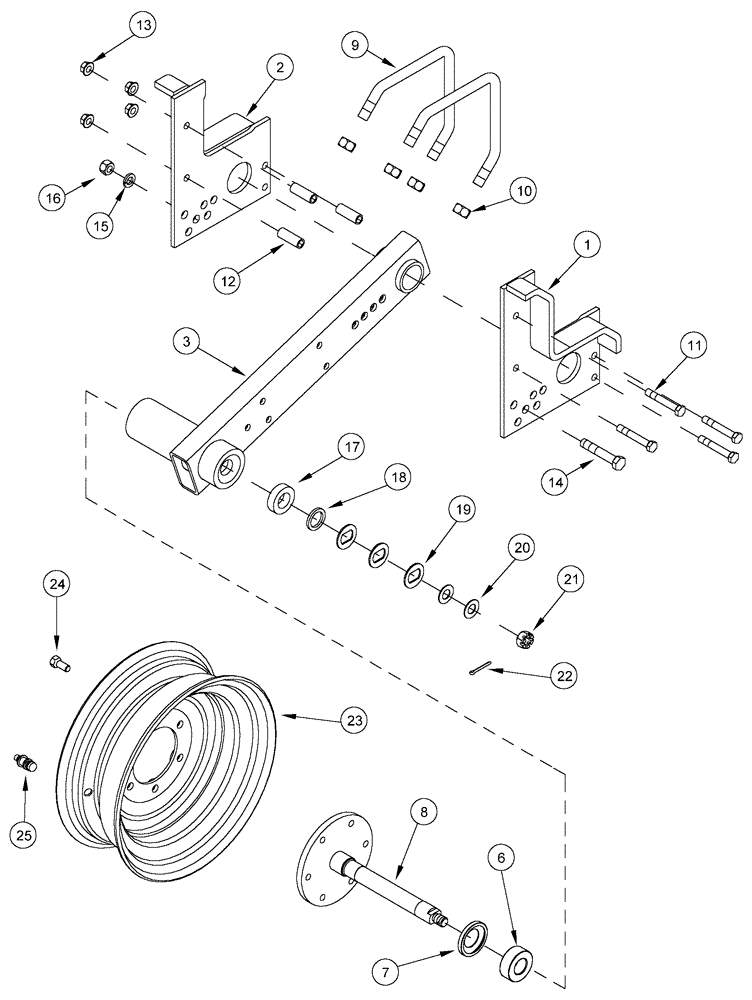

Запчасти Case IH 1200 (D.20.B[01]) - CARRYING WHEELS - SINGLE ARM (BSN CBJ036114) D - Travel

1

191972A2

SUPPORT

wheel mount, RH

1шт.

2

191971A2

SUPPORT

wheel mount, LH

1шт.

3

233116A1

ARM

assembly with bearing cups installed

1шт.

Includes ref 4 and 5

1шт.

4

51200379

BEARING CUP,69.9mm OD x 18.95mm W

#2523

1шт.

Not Shown

1шт.

5

36723

BEARING CUP,59.16mm OD x 11.81mm W

#LM67010

1шт.

Not Shown

1шт.

6

1264322C91

ROLLER BEARING

#2582

1шт.

7

137231C1

SEAL

drive wheel shaft

1шт.

8

134117C4

SHAFT

drive wheel

1шт.

9

87508091

SPECIAL BOLT

V 3/4"-10 x 7" G5

2шт.

10

280954

NUT,3/4"-10, G5

4шт.

11

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

4шт.

12

23885K

SPACER,3/4" Tube x 2 1/16"

4шт.

13

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

14

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

15

12034871

WASHER

5/8"

1шт.

16

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

17

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

with seal, spindle inner

1шт.

18

134120C4

SPACER

1шт.

19

141271C1

WASHER

slotted

3шт.

20

86624157

WASHER,0.78" ID x 1.5" OD x 0.06" Thk

2шт.

21

425-1212

SLOTTED NUT,3/4"-10, G5

1шт.

22

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

23

349203A1

WHEEL

15 X 5 6H with valve guard

1шт.

24

198056

WHEEL BOLT,1/2" - 20 x 1.031"

6шт.

25

810769C1

VALVE

tire stem VS/936

1шт.
