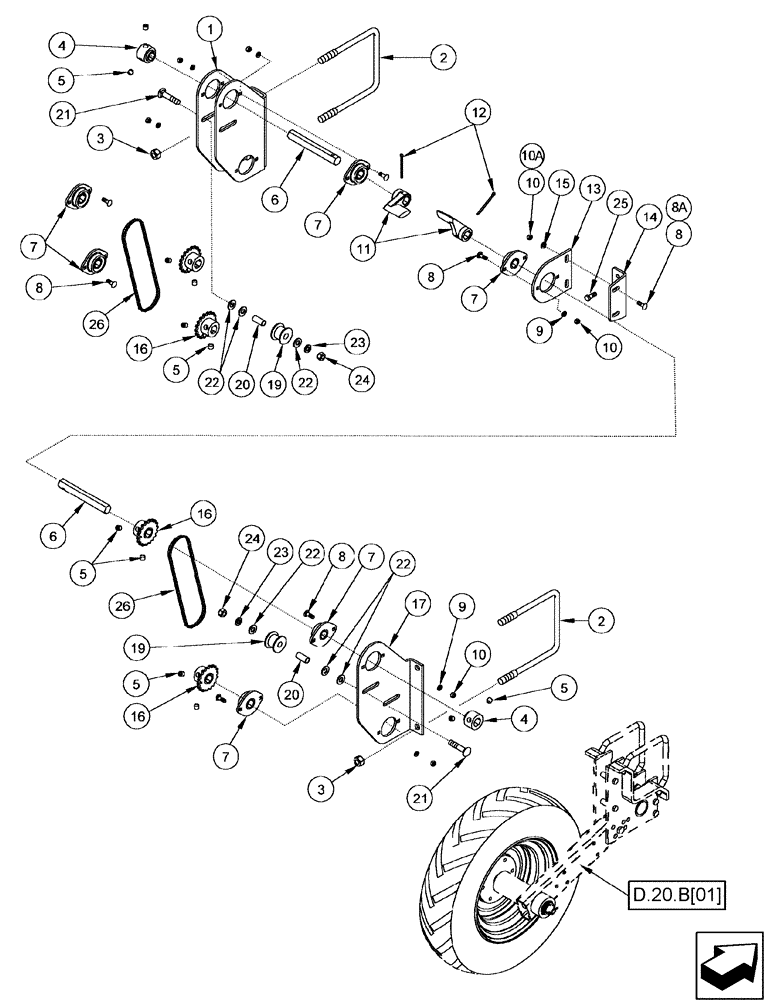

Запчасти Case IH 1200 (D.13.B[25]) - CROSS OVER DRIVE - MOUNTED STACKER (BSN CJB0001233) D - Travel

1

336032A2

BRACKET

single pawl drive support

2шт.

12 Row Narrow

1шт.

8 Row Wide

1шт.

1

328182A1

BRACKET

drive support LH

3шт.

12 Row Narrow and 12 Row Wide

1шт.

8 Row Wide - 36 & 40" Spacing

1шт.

2

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

1шт.

3

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

4

87461085

SPROCKET

collar locking

4шт.

5

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

20шт.

6

328058A1

SHAFT

hex 7/8" x 7"

4шт.

12 Row Narrow

1шт.

8 Row Wide

1шт.

6a

328060A2

DRIVE SHAFT

hex 7/8" x 260 mm

4шт.

12 Row Wide

1шт.

7

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

12шт.

8

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

24шт.

8a

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

9

80681

LOCK WASHER,5/16"

24шт.

10

9635082

NUT,5/16" - 18, Gr 5

24шт.

10a

88902

NUT,3/8"-16

4шт.

11

303578A1

COUPLING

drive

4шт.

12

86523959

COTTER PIN,3/16" x 2 1/2"

4шт.

13

323417A1

PLATE

bearing support

2шт.

14

323418A1

BRACKET

bearing support

2шт.

15

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

16

103681A1

SPROCKET

18 tooth

8шт.

17

323765A1

BRACKET

drive support RH

1шт.

12 Row Narrow

1шт.

8 Row Wide

1шт.

Shown

1шт.

17

328183A1

BRACKET

drive support RH

3шт.

12 Row Wide

1шт.

17

323359A1

BRACKET

drive support LH

1шт.

Not Shown

1шт.

19

1277726C1

ROLLER,48mm OD x 34mm L

idler

4шт.

20

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

chain idler

4шт.

21

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

4шт.

22

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

12шт.

23

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

24

9628503

NUT,3/8"-16, G5

4шт.

25

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

26

336670A3

CHAIN (AG)

cross over drive, use 57 links from 475879R91 bulk chain, plus (1) 241-2314 connecting link

4шт.

Use 57 Links From 475879R91 Bulk Chain, Plus, (1) 241-2314 Connecting Link

1шт.

26

475879R91

CHAIN (AG)

#41 - 10' s/p roller

1шт.

26

44428

CONNECTING LINK

#41 single pitch connecting

1шт.
