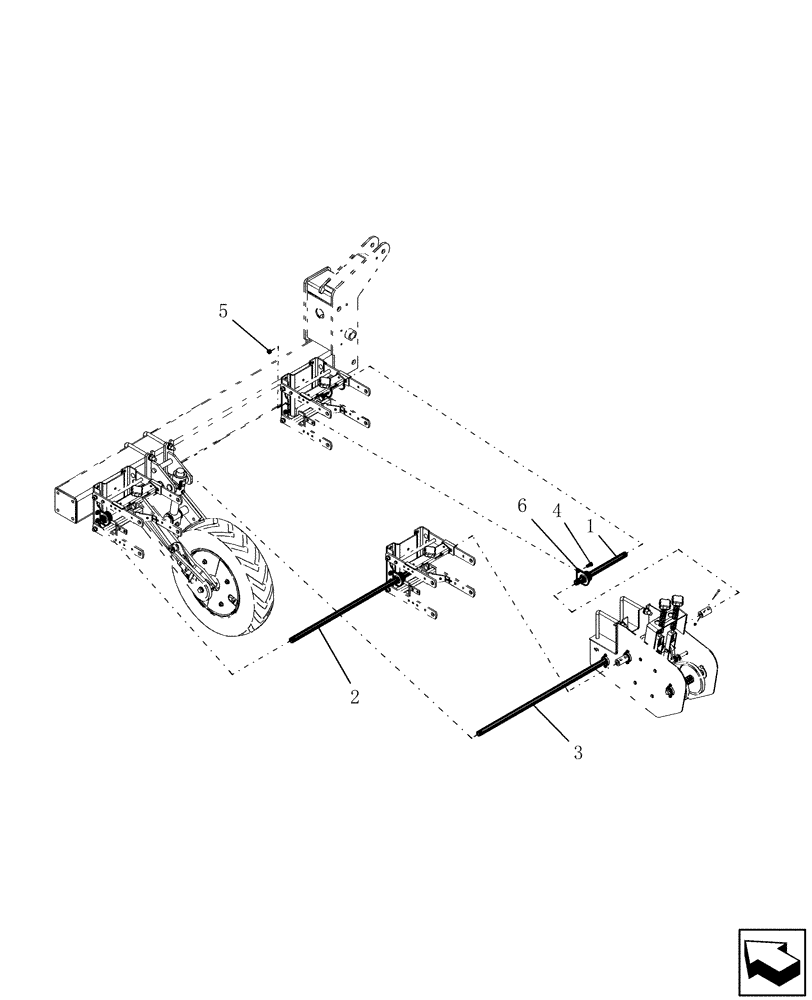

Запчасти Case IH 1200 (D.13.B[22]) - 3 TRANSMISSION DRIVE SYSTEM - MOUNTED STACKER D - Travel

1

449390A1

SHAFT

22 mm hex x 1200 mm

2шт.

12 Row Wide

1шт.

1

449391A1

SHAFT

22 mm hex x 1550 mm

2шт.

12 Row Narrow

1шт.

2

449391A1

SHAFT

22 mm hex x 1550 mm

2шт.

12 Row Wide

1шт.

2

449391A1

SHAFT

22 mm hex x 1550 mm

2шт.

12 Row Narrow

1шт.

3

449392A1

SHAFT

22 mm hex x 400 mm

2шт.

3

450014A1

SHAFT

22 mm hex x 525 mm

2шт.

12 Row Wide

1шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

6

413712A1

BEARING ASSY,1.90625" OD x 1.875"

12 tooth with bearing

1шт.
