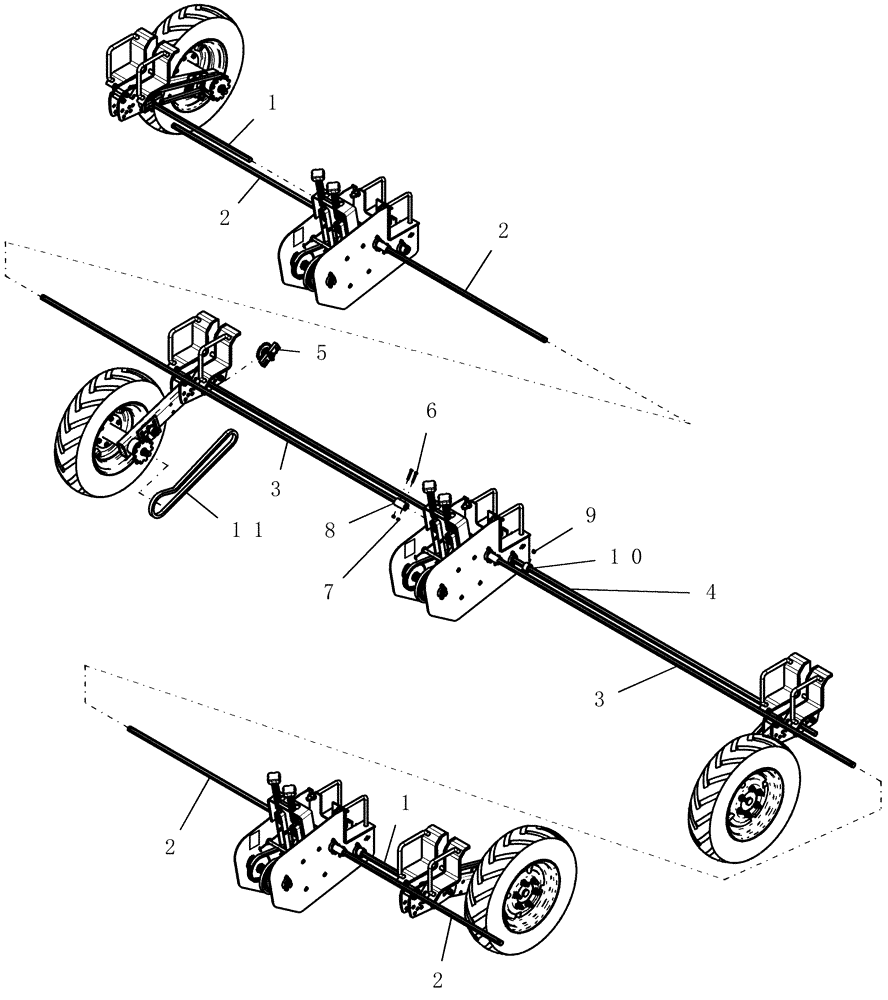

Запчасти Case IH 1200 (D.13.B[19]) - DRIVE SYSTEM - 16R MOUNTED STACKER MECH D - Travel

1

87594460

SHAFT

7/8" hex x 900 mm

2шт.

2

449390A1

SHAFT

22 mm hex x 1200 mm

4шт.

3

402955A1

DRIVE SHAFT

7/8" hex x 2660 mm

2шт.

4

128984A1

SHAFT

drive, hex 22 mm (7/8") x 4597 mm (181") long

1шт.

5

1277925C92

RATCHET

23 tooth LH

2шт.

6

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

12шт.

7

280129

NUT,1/4"-20

12шт.

8

400583A1

COUPLING,22.48mm ID x 38.1mm OD x 70mm L

seed drive

6шт.

9

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

18шт.

10

87461085

SPROCKET

collar locking

9шт.

11

1277739C91

CHAIN (AG)

primary wheel drive, no. 2050, use 45 links from 569089R91 bulk chain and (1) 1277928C91 connecting link

4шт.

11

569089R91

CHAIN (AG),10' L, 1.0" Pitch

#2050 - 10' d/p roller

1шт.

11

1277928C91

LINK

connecting #2050

1шт.
