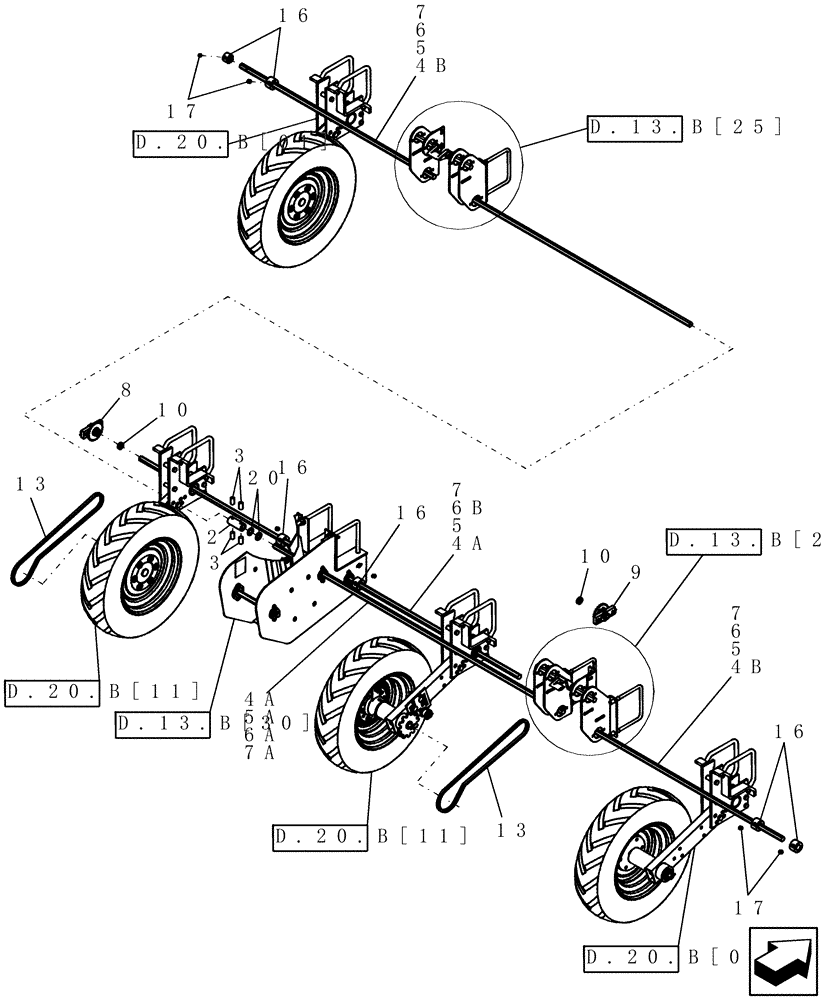

Запчасти Case IH 1200 (D.13.B[16]) - DRIVE SYSTEM - 8R AND 12R MOUNTED STACKER (BSN CBJ036000) D - Travel

2

1254283C1

COUPLING

7/8" hex shaft

1шт.

3

86624120

SET SCREW,3/8" - 16 x 3/8"

4шт.

4

325588A3

SHAFT

hex 7/8" x 63"

1шт.

8 Row Wide

1шт.

4a

325591A3

SHAFT

hex 7/8" x 80"

1шт.

8 Row Wide

1шт.

4b

90560C1

SHAFT

Drive, Hex, 22 (7/8) x 1360 mm (53-35/64 inch) Long

2шт.

8 Row Wide

1шт.

36" Spacing

1шт.

4b

328858A2

SHAFT

hex 7/8" x 69"

2шт.

8 Row Wide

1шт.

38 & 40" Spacing

1шт.

4c

325590A1

SHAFT

hex 7/8" x 105"

1шт.

8 Row Wide

1шт.

5

325591A3

SHAFT

hex 7/8" x 80"

4шт.

12 Row Narrow

1шт.

5a

325592A2

SHAFT

hex 7/8" x 93"

1шт.

12 Row Narrow

1шт.

6

325592A2

SHAFT

hex 7/8" x 93"

3шт.

12 Row Narrow

1шт.

36" Spacing

1шт.

6a

325593A3

SHAFT

hex 7/8" x 117"

1шт.

12 Row Narrow

1шт.

36" Spacing

1шт.

6b

325590A1

SHAFT

hex 7/8" x 105"

1шт.

12 Row Wide

1шт.

36" Spacing

1шт.

7

325590A1

SHAFT

hex 7/8" x 105"

4шт.

12 Row Wide

1шт.

38 & 40" Spacing

1шт.

7a

325593A3

SHAFT

hex 7/8" x 117"

1шт.

8 Row Wide

1шт.

38 & 40" Spacing

1шт.

8

1277926C92

RATCHET

23 tooth RH

1шт.

9

1277925C92

RATCHET

23 tooth LH

1шт.

10

1277812C3

SPACER

double sprocket

2шт.

13

1277739C91

CHAIN (AG)

primary wheel drive, no. 2050, use 45 links from 569089R91 bulk chain and (1) 1277928C91 connecting link

2шт.

13

569089R91

CHAIN (AG),10' L, 1.0" Pitch

#2050 - 10' d/p roller

1шт.

13

1277928C91

LINK

connecting #2050

1шт.

16

87461085

SPROCKET

collar locking

10шт.

17

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

36шт.

20

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

2шт.
