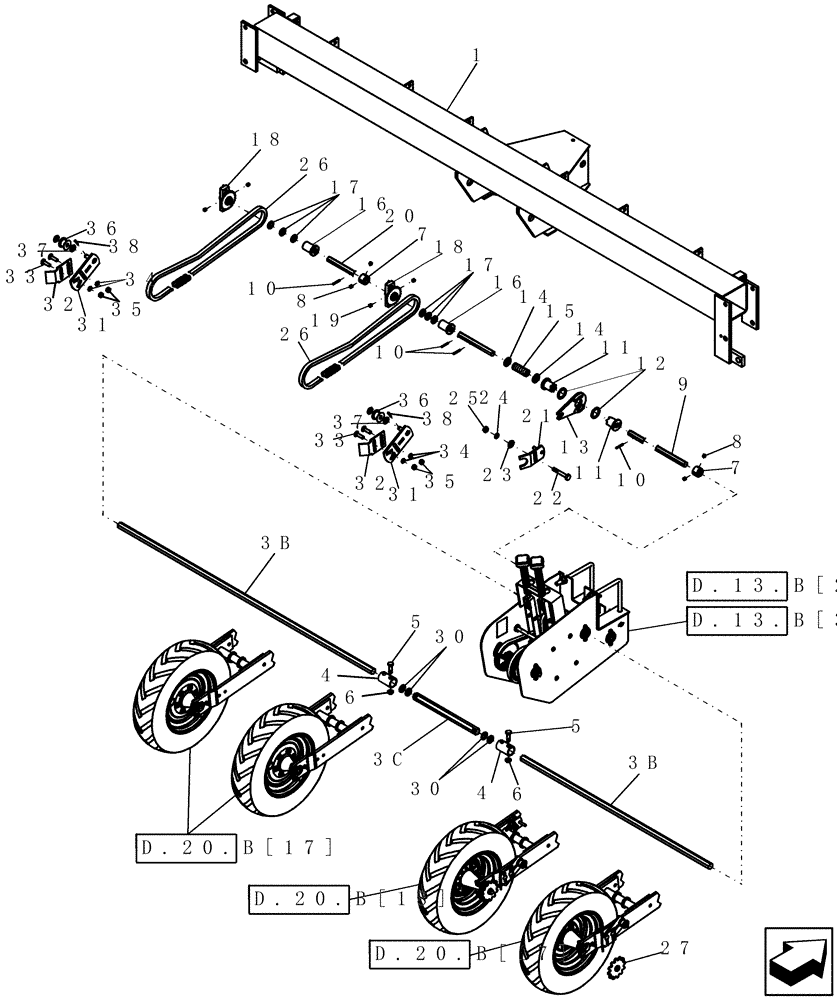

Запчасти Case IH 1200 (D.13.B[08]) - DRIVE SYSTEM - 6R RIGID TRAILING MECH (BSN CBJ022936) D - Travel

1

87504800

KIT

frame, 6 row trailing planter

1шт.

3

132423A1

BAR

drive shaft, hex, 22 (7/8") x 3962 mm (156") long

1шт.

Used with transmission 322842A5

1шт.

3b

405407A1

SHAFT

hex 7/8" x 1920 mm

2шт.

Used with transmission 402452A1

1шт.

3c

402451A1

SHAFT

hex, 7/8" x 13 15/16" with 2 holes

1шт.

Used with transmission 402452A1

1шт.

4

400583A1

COUPLING,22.48mm ID x 38.1mm OD x 70mm L

seed drive

2шт.

5

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

6

280129

NUT,1/4"-20

4шт.

7

87461085

SPROCKET

collar locking

5шт.

Used with transmission 322842A5

1шт.

7a

87461085

SPROCKET

collar locking

1шт.

Used with transmission 402452A1

1шт.

8

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

10шт.

Used with transmission 322842A5

1шт.

8a

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

Used with transmission 402452A1

1шт.

9

90559C1

SHAFT

Drive, Hex, 22 (7/8") x 800 mm (31 1/2") long

1шт.

10

86624099

PIN,1/4" x 1 3/4", Coiled

4шт.

11

1264313C1

CLUTCH

drive LH

2шт.

12

1267994C2

THRUST WASHER,42.06mm ID x 57.15mm OD x 2.7mm Thk

clutch

2шт.

13

87502661

PLATE

clutch throw out

1шт.

14

86624172

WASHER,1.03" ID x 1.75" OD x 0.12" Thk

2шт.

15

1264302C1

SPRING

clutch .148 wire x 1 3/8" od x 4.9" long closed and ground

1шт.

16

90335C2

BUSHING

drive shaft

2шт.

17

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

6шт.

18

1277925C92

RATCHET

23 tooth LH

2шт.

19

483-15012

SET SCREW,Hex Soc, 1/2"-13 x 3/4"

2шт.

20

90558C2

BAR

primary input

1шт.

21

87461084

BRACKET

cast clutch throw out

1шт.

22

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

1шт.

23

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

24

12034871

WASHER

5/8"

1шт.

25

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

26

1277740C91

CHAIN (AG)

A2050 main drive (Trail), use 55 links from 569089R91 bulk chain plus 1-1277928C91 connecting link

2шт.

26

569089R91

CHAIN (AG),10' L, 1.0" Pitch

#2050 - 10' d/p roller

1шт.

26

1277928C91

LINK

connecting #2050

1шт.

27

1277737C1

SPROCKET

12 tooth

4шт.

30

86624168

WASHER,1.03" ID x 1.5" OD x 0.03" Thk

1шт.

31

96140C3

PLATE

drive wheel idler

2шт.

32

256695A1

SCRAPER

chain

2шт.

33

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

4шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

35

280431

NUT,1/2"-13, G5

4шт.

36

1277726C1

ROLLER,48mm OD x 34mm L

idler

2шт.

37

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

4шт.

38

394818

COTTER PIN,M5 x 25

2шт.
