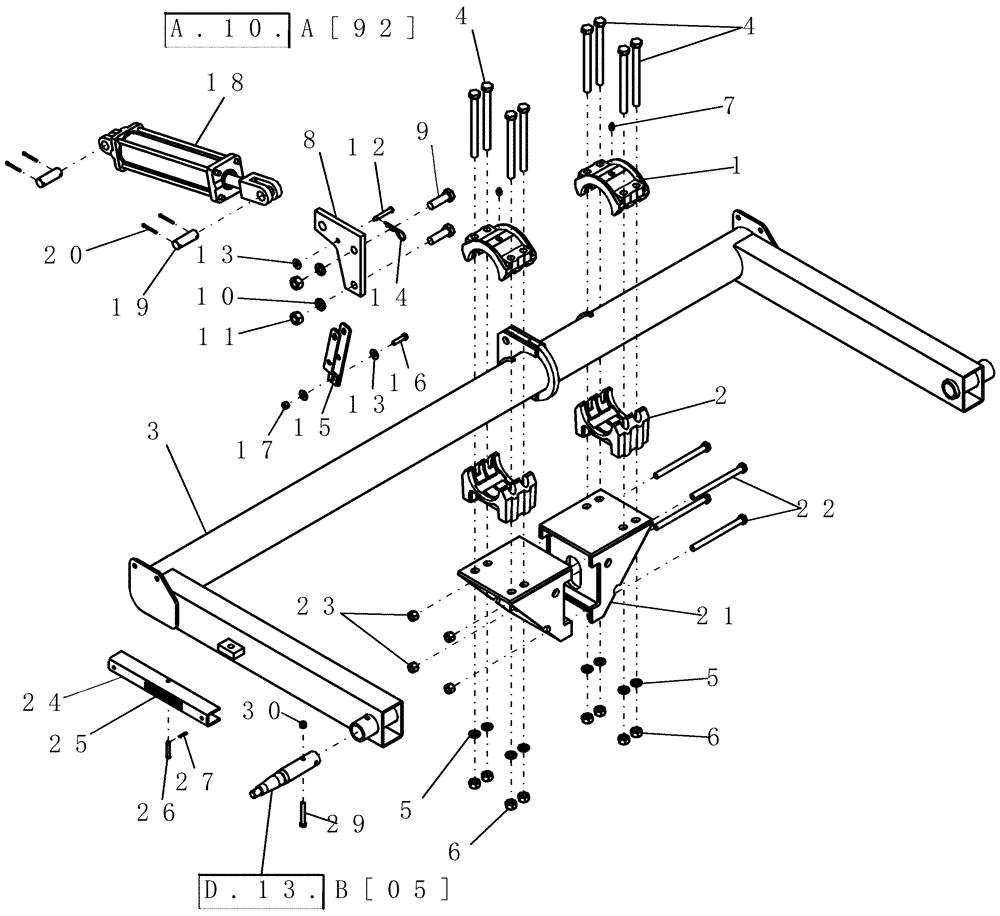

Запчасти Case IH 1200 (D.13.B[04]) - ENDWISE TRANSPORT AXLE, 8RN - RIGID TRAILING (BSN CBJ022936) D - Travel

0

395772A1

BLOCK

tube bearing

2шт.

1

NSS

NOT SOLD SEPARAT

block Tube Bearing, Upper

1шт.

2

NSS

NOT SOLD SEPARAT

block Tube Bearing, Lower

1шт.

3

394572A1

AXLE

transport

1шт.

4

426-14160

BOLT,Hex, 7/8" - 9 x 10", Gr 8

8шт.

5

87341

LOCK WASHER,7/8"

8шт.

6

280881

NUT,7/8"-9, G8

8шт.

7

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

8

95735C2

ANCHOR

plate, cylinder

1шт.

9

86979387

BOLT,Hex, 1" - 8 x 3 1/2", Gr 8

2шт.

10

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

2шт.

11

86511609

NUT,1"-8, G8

2шт.

12

147404C1

PIN,12.7mm OD x 83mm L

pointed, 1/2" x 3 1/4"

1шт.

13

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

3шт.

14

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

1шт.

15

403532A1

LOCK

transport

1шт.

16

281058

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

17

86992215

LOCK NUT,1/2"-13, GC

1шт.

18

1282329C91

HYDRAULIC CYLINDER

4" x 16", Years: -06-JUL-01

1шт.

18

414702A1

HYDRAULIC CYLINDER

4" x 16" 3000 psi without pins, Years: 07-JUL-01-31-DEC-03

1шт.

18

86989789

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

4" x 16", 3000 psi, no pins, Start Year: 01-JAN-04

1шт.

19

1252319C1

PIN,31.75mm OD x 96mm L

cylinder 1 1/4"

2шт.

20

88182

COTTER PIN,1/4" OD x 2" L

4шт.

21

91279C1

BRACKET

transport

2шт.

22

426-12152

BOLT,Hex, 3/4" - 10 x 9-1/2", Gr 8

4шт.

23

280375

NUT,3/4"-10, GC

4шт.

24

1254284C92

STOP

cylinder bracket with decal

1шт.

25

1254230C2

WARNING DECAL

1шт.

26

86624082

HEADED PIN,3/8" x 2 1/2", G2

1шт.

27

86624096

COTTER PIN,Int, 3/16 x .080"

1шт.

29

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

30

230-4248

LOCK NUT,1/2"-13, GA

2шт.
