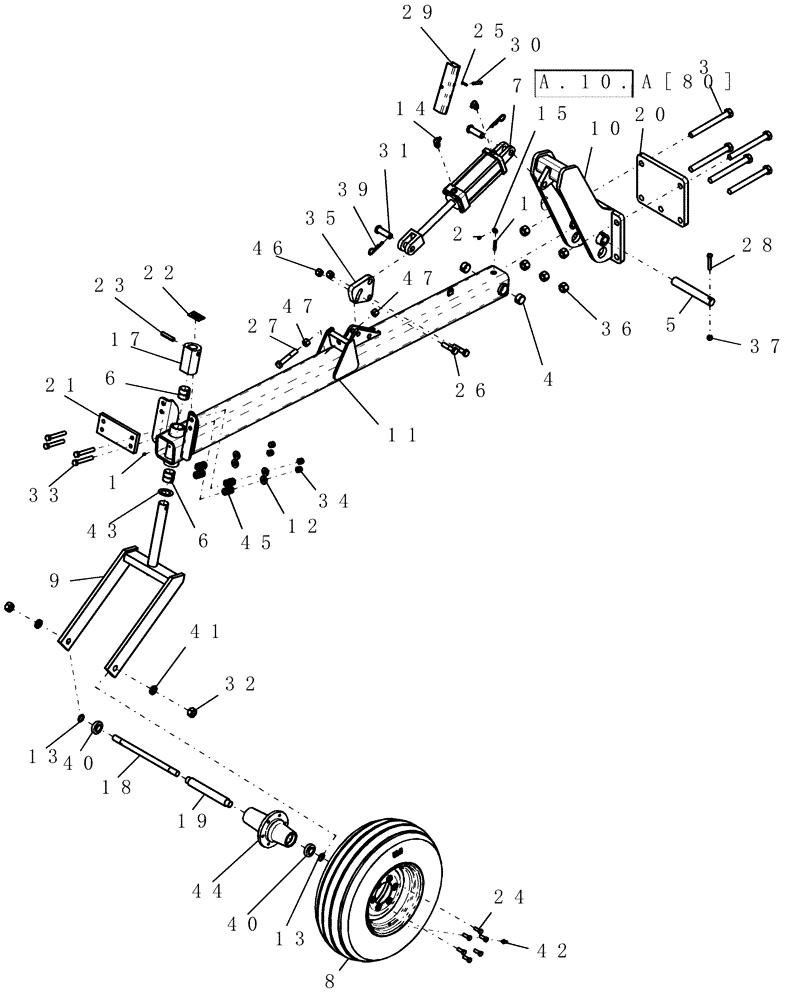

Запчасти Case IH 1200 (D.13.B[03]) - LIFT ASSIST WHEELS - 16 ROW MOUNTED STACKER D - Travel

1

87414

LUBE NIPPLE,1/4" - 28

2шт.

2

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

3

87014472

BOLT

Hex, 1"-8 x 10", G8

10шт.

4

22093

BUSHING,1-1/2" ID x 1-3/4" OD x 1" Thk

tension 1 3/4" x 1 1/2" x 1"

4шт.

5

87582450

PIN

38.1 x 239 mm

2шт.

6

87594339

BUSHING

tension 2 x 1 3/4 x 2 long

4шт.

7

87660742

HYDRAULIC CYLINDER,31.75mm Rod, 254mm Stroke

3 1/2" x 8" 3000 psi

2шт.

8

24831SNA

WHEEL ASSY

with tire 9.5L-14 6PR

2шт.

9

222679A1

YOKE

UNIVERSAL JOINT YOKE assist wheel pivot

2шт.

10

87582703

BRACKET

assist wheel

2шт.

11

87582704

TUBE,849.2 mm L

wheel assist

2шт.

12

86624156

WASHER,0.66" ID x 1.5" OD x 0.19" Thk

8шт.

13

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

4шт.

14

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

4шт.

15

105412

ELBOW,90 Degree, 1/8" NPT

2шт.

16

221-1109

PIPE,Nipple, 1/8" NPT x 2"

2шт.

17

222677A1

CAM

snubber

2шт.

18

541759R3

ROD

axle

2шт.

19

541758R1

TUBE

spacer

2шт.

20

87582452

PLATE

bolt mounting

4шт.

21

137881A1

BAR

cam follower

2шт.

22

1264465C1

PRODUCT GRAPHIC

caution, for safe transport

2шт.

23

86624086

PIN,5/8" x 3", Coiled

2шт.

24

277538A1

BOLT,1/2" - 20 x 1.42"

hex conical, 1/2"-20 x 1 5/32"

12шт.

25

86624096

COTTER PIN,Int, 3/16 x .080"

2шт.

26

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

27

87593246

BOLT

Hex, 3/4"-10 x 4 1/2", G5 Full Thread

2шт.

28

280620

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

29

87413203

BRACKET

with decal, cylinder stop

2шт.

ns

1254230C2

WARNING DECAL

2шт.

29

87413403

BRACKET

cylinder stop French

2шт.

ns

141614A2

DECAL

cylinder stop (French)

2шт.

30

86624081

HEADED PIN,9.53mm OD x 57.15mm L

2шт.

31

87023161

HEADED PIN,1" x 3"

4шт.

32

9849633

NUT,1"-8, G5

4шт.

33

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

8шт.

34

85700693

NUT,5/8" - 11, Gr C

8шт.

35

87582702

LUG

lower cylinder adjuster

2шт.

36

87304132

NUT,1"-8, GC

10шт.

37

87333862

NUT

1/2"-13, GB

2шт.

39

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

4шт.

40

1973497C1

BALL BEARING,30mm ID x 62mm OD x 24mm W

ball

4шт.

41

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

4шт.

42

810768C1

VALVE

tire stem VS/936

2шт.

43

462997R2

WASHER

wear

2шт.

44

541757R1

HUB

6 bolt

2шт.

45

137969A1

SPRING

die 1 1/4" od x 5/8" id x 2" long

8шт.

46

280375

NUT,3/4"-10, GC

4шт.

47

280954

NUT,3/4"-10, G5

4шт.
