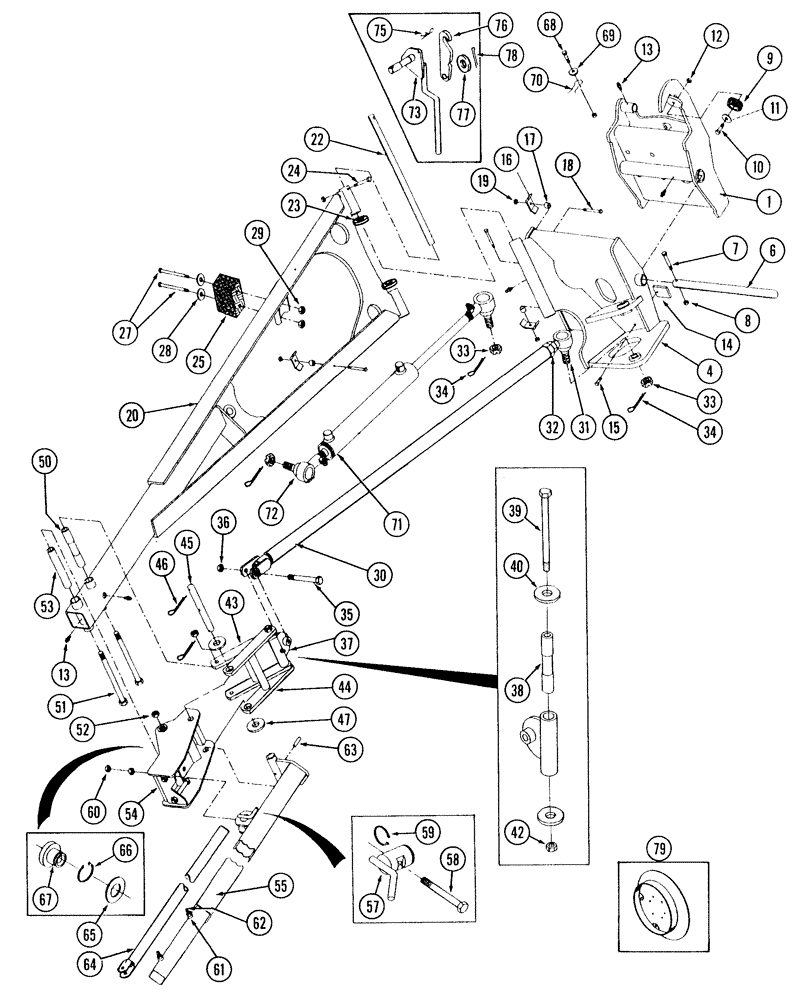

Запчасти Case IH 1200 (A.10.A[05]) - ROW MARKER- FOLDING, 8 ROW WIDE AND 12 ROW NARROW MOUNTED STACKER BSN CBJ036000 A - Distribution Systems

1

332809A1

ARM

marker rear fold LH

1шт.

Shown

1шт.

1a

332810A1

ARM

marker, rear fold RH

1шт.

Not Shown

1шт.

1b

1254154C2

WARNING DECAL

2шт.

Not Shown

1шт.

4

332771A1

ARM

marker, rear fold pivot mount LH

1шт.

Shown

1шт.

4

332772A1

ARM

marker, rear fold pivot mount RH

1шт.

Not Shown

1шт.

6

356323A1

PIN

1300 marker mounting

1шт.

7

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

8

87030549

NUT,M10 x 1.5, Cl 10

1шт.

9

337125A1

BUMPER

2 1/2" diameter, rubber

1шт.

10

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

11

140017

WASHER,M10 x 20mm OD x 2mm Thk

1шт.

12

87030549

NUT,M10 x 1.5, Cl 10

2шт.

13

87414

LUBE NIPPLE,1/4" - 28

8шт.

14

337132A1

PLATE

marker mounting tab

2шт.

15

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

4шт.

16

337126A1

CLAMP

hydraulic hose

4шт.

17

337127A1

SPACER

hose clamp

4шт.

18

86625002

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8, Full Thd

4шт.

19

43362

NUT,M8 x 1.25, Cl 10

4шт.

20

332755A1

ARM

marker main

1шт.

Shown

1шт.

20

332773A1

ARM

marker, 1393 rear fold RH

1шт.

Not Shown

1шт.

22

356323A1

PIN

1300 marker mounting

1шт.

23

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

24

87023162

PIN,9.53mm OD x 44.45mm L

1шт.

25

337124A1

BUMPER

rubber stop

1шт.

27

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

2шт.

28

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

29

412672

NUT,Hex, M12 x 1.75, Cl 10

2шт.

30

333663A1

STRUT

1393 marker

1шт.

31

357197A1

BALL JOINT

male RH

1шт.

32

425-1118

NUT,1 1/8"-12, G5

1шт.

33

87432

SLOTTED NUT,3/8"-16

3шт.

34

80708

COTTER PIN,1/8" x 1 1/2"

3шт.

35

394674

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8, Full Thd

1шт.

36

412066

NUT,M16 x 2.0, Cl 8

1шт.

37

333650A1

BRACKET

marker strut attachment RH

1шт.

38

357206A1

BUSHING

marker strut

1шт.

39

86624001

BOLT,Hex, M16 x 220mm, Cl 8.8

1шт.

40

86624167

WASHER,25.81mm ID x 44.45mm OD x 0.91mm Thk

2шт.

42

412066

NUT,M16 x 2.0, Cl 8

1шт.

43

333640A1

LINK

1393 rear fold marker

1шт.

44

333641A1

LINK

1300 rear fold marker

1шт.

45

356324A1

PIN

1300 marker pivot box

1шт.

46

88182

COTTER PIN,1/4" OD x 2" L

2шт.

47

356326A1

BUSHING

1 1/2" od x 1" id x 14 ga

4шт.

50

337134A1

BUSHING

marker inner

1шт.

51

382358

BOLT,Hex, M16 x 2 x 200mm, Cl 8.8

2шт.

52

392530

NUT,M16, Cl 10

2шт.

53

337136A1

BUSHING

pivot box inner

1шт.

54

332811A1

PIVOT

box, rear fold marker

1шт.

55

357200A1

ARM

second marker

1шт.

Shown

1шт.

55

332763A1

ARM

marker, 1393 second RH

1шт.

Not Shown

1шт.

57

333651A1

TRUNNION

1300 marker shear bolt

1шт.

58

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

3шт.

59

103-11125

SNAP RING,#125, Ext

1шт.

60

43362

NUT,M8 x 1.25, Cl 10

3шт.

61

86632558

JAM NUT,Jam, 1/2"-13, G5

2шт.

62

86512816

SET SCREW,Sq Hd, 1/2" - 13 x 1 1/2", Cup Pt

set 1/2"-13 x 1 1/2" square head

2шт.

63

86624090

PIN,9.53mm OD x 38.1mm L

1шт.

64

333032A1

TUBE

marker, extension

1шт.

65

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

66

129164

SNAP RING,#75, Ext

1шт.

67

356898A1

PIN

marker, shear bolt alignment

1шт.

68

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

69

337128A1

BUSHING

clip retainer

1шт.

70

PL

PROCURE LOCALLY

PIN Hair Clip, 51/64"

1шт.

71

332758A1

HYDRAULIC CYLINDER

51 mm (2") id x 305 mm (12") Stroke, Years: -31-OCT-01

1шт.

71

87501757

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 457.2mm Stroke

1300 marker, no ball joints, Start Year: 01-NOV-01

1шт.

72

332759A1

BALL JOINT

Orthman pn 339-849

2шт.

Includes nut and cotterpin

1шт.

73

356907A1

BRACKET

manual pivot hook LH

1шт.

Shown

1шт.

74

356906A1

BRACKET

manual pivot hook RH

1шт.

Not Shown

1шт.

75

PL

PROCURE LOCALLY

PIN Hair Clip, 11/64" x 3 3/4"

1шт.

76

356908A1

BRACKET

hook, manual pivot

1шт.

77

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

78

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

79

REF

INSTRUCTION

disc assembly - marker

1шт.
