(A.50.A[38]) - ELECTRICAL - RADAR ADAPTER HARNESS 87528965

Запчасти Case IH 1200 (A.50.A[38]) - ELECTRICAL - RADAR ADAPTER HARNESS 87528965 A - Distribution Systems

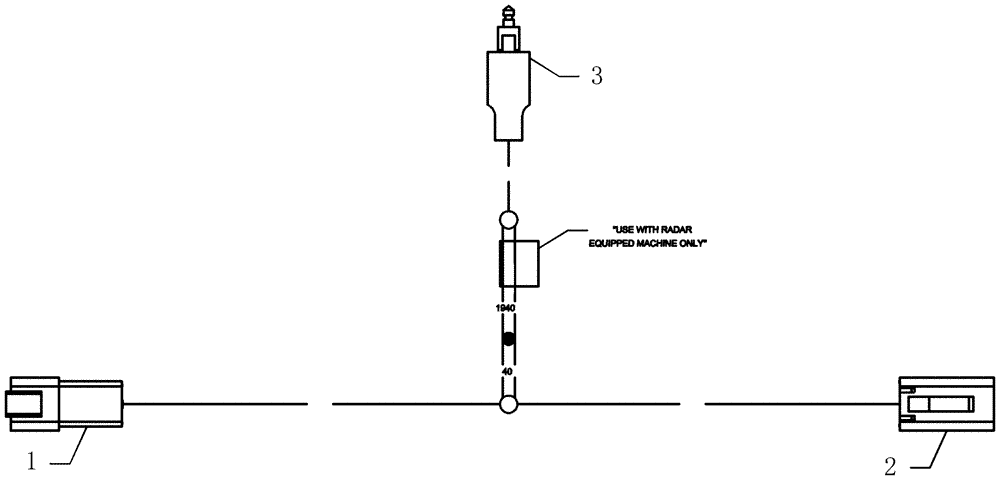

Схема запчастей Case IH 1200 - (A.50.A[38]) - ELECTRICAL - RADAR ADAPTER HARNESS 87528965 A - Distribution Systems
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87528965

HARNESS

wire, radar adapter MX Magnum

1шт.

1

225350C1

ELEC CONNECTOR,Male, 6 Pin

6 pin type LY

1шт.

2

225351C1

ELEC CONNECTOR,Female, 6 Pin

Plastic 6c Plug

1шт.

3

300656A1

POWER SOCKET,1 Pole

1шт.

Выбрано товаров: 4
