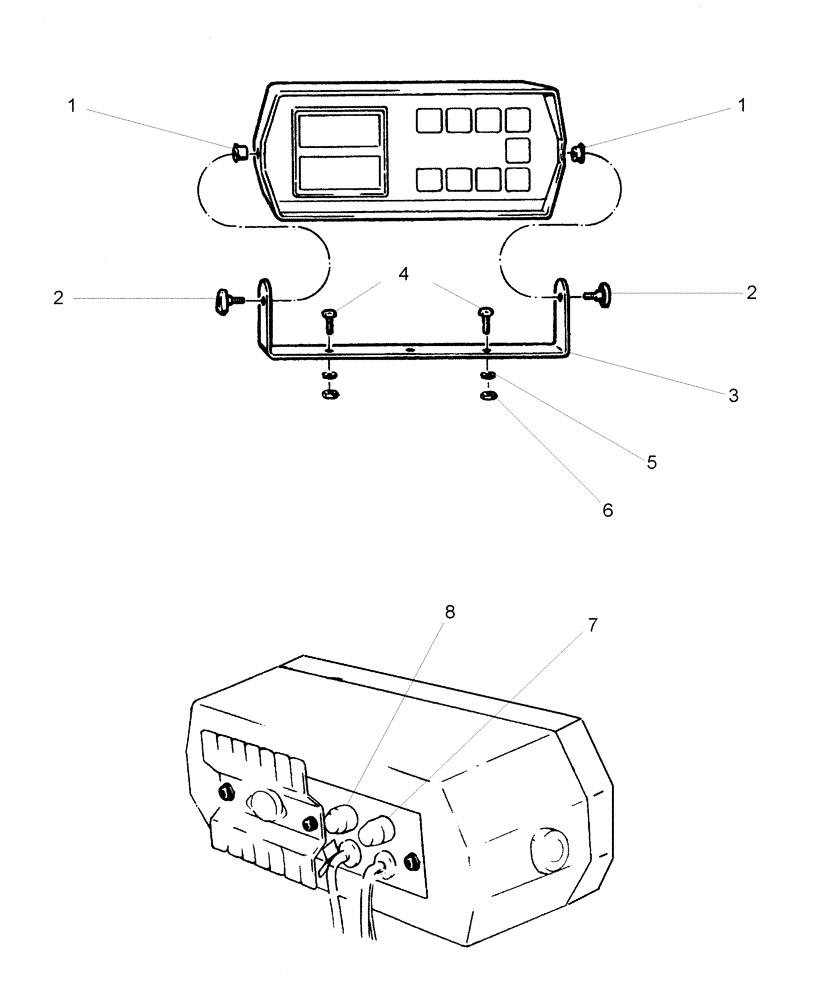

Запчасти Case IH 1200 (A.50.A[32]) - ELECTRICAL - EARLY RISER II - PLANTER MONITOR (BSN CBJ025391) A - Distribution Systems

0

414487A1

MODULE

Early Riser II monitor, Serial Range: -CBJ025391

1шт.

87548618R

REMAN-INSTR CLUSTER

1200 (Serial Range: -CBJ025391) PLANTER MONITOR (BSN CBJ025391) (11/01-7/08), Reman for new PN 414487A1

1шт.

87548618C

CORE-CLUSTER, INSTR

Return Number

1шт.

1

414494A1

KIT

package, Early Riser II hardware

1шт.

2

414494A1

KIT

package, Early Riser II hardware

1шт.

3

86990578

BRACKET

Early Riser II, SM9000

1шт.

4

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1шт.

5

80682

LOCK WASHER,1/4"

1шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

7

86705047

FUSE,2 Amp, Type 3AG

1шт.

8

86705048

FUSE,5 Amp, Type 3AG

1шт.

100

A48888

BULB

instrument

1шт.

Not Shown

1шт.
