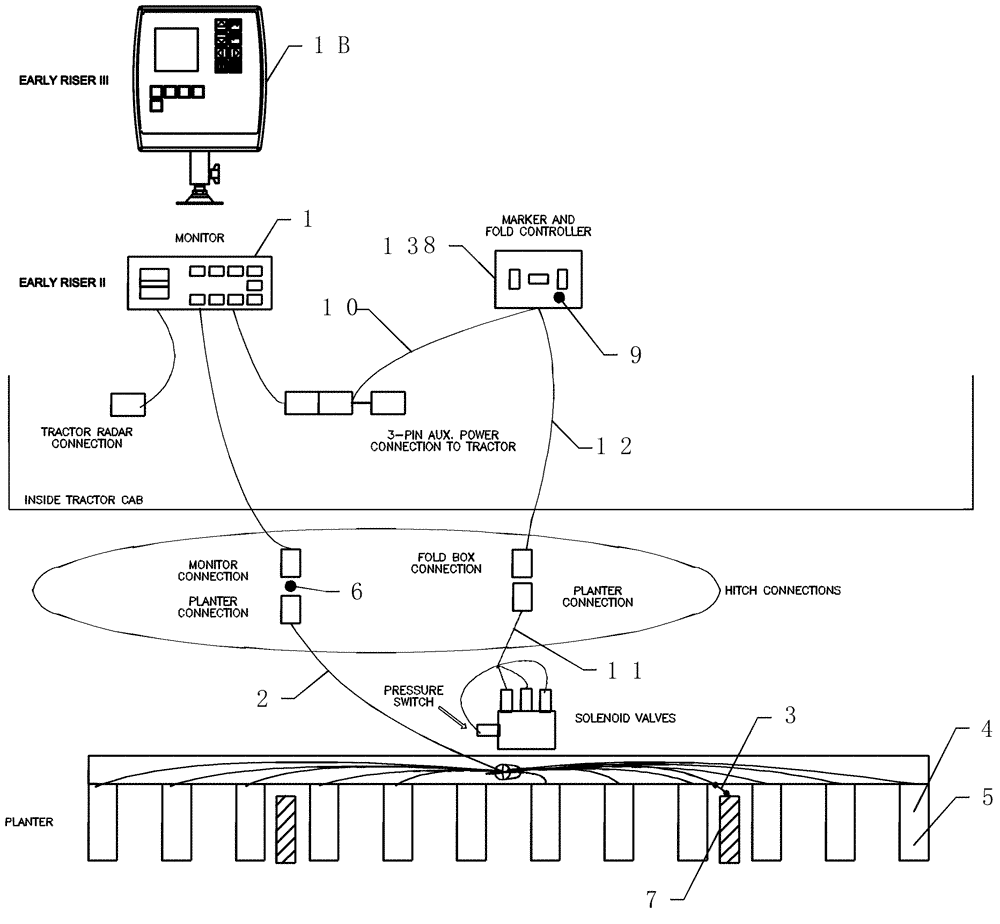

Запчасти Case IH 1200 (A.50.A[30]) - ELECTRICAL - EARLY RISER II & III - PLANTER MONITOR LAYOUT & MARKER/FOLD CONTROLLER A - Distribution Systems

1

414487A1

MODULE

Early Riser II monitor, Serial Range: -CBJ025391

1шт.

87548618R

REMAN-INSTR CLUSTER

1200 (Serial Range: -CBJ025391) (11/01-7/08), Reman for new PN 414487A1

1шт.

87548618C

CORE-CLUSTER, INSTR

Return Number

1шт.

1b

87548618

MODULE

Early Riser III monitor, Start Serial: CBJ025392

1шт.

87548618R

REMAN-INSTR CLUSTER

1200 (Start Serial: CBJ025392) (11/01-7/08)

1шт.

87548618C

CORE-CLUSTER, INSTR

Return Number

1шт.

2

414489A1

HARNESS

6 row Early Riser II and III monitor

1шт.

2

414490A1

HARNESS

8 row Early Riser II and III monitor

1шт.

2

414491A1

HARNESS

12 row Early Riser II and III monitor

1шт.

2

87593384

HARNESS

16 row Early Riser III monitor

1шт.

3

436521A1

ADAPTER

wiring harness plug

1шт.

4

404831A1

SENSOR

hi rate seed

1шт.

5

87688051

TUBE,737, 400 mm L

Seed

1шт.

6

418649A1

HARNESS

6' Early Riser II extension

1шт.

6

418650A1

HARNESS

15' Early Riser II extension

1шт.

7

324049A1

SENSOR

speed hall

1шт.

8

429061A1

MODULE

fold box

1шт.

9

441799A1

DECAL

warning - marker control box

1шт.

10

429062A1

HARNESS

power, fold box

1шт.

11

429063A1

HARNESS

signal, fold box

1шт.

12

429431A1

HARNESS

extension, fold box

1шт.

13

435076A1

KIT

bracket, fold box mounting

1шт.

14

86977690

LOCK WASHER,Ext Tooth, 5/8"

2шт.

Not Shown - for use with sensor 324049A1

1шт.
