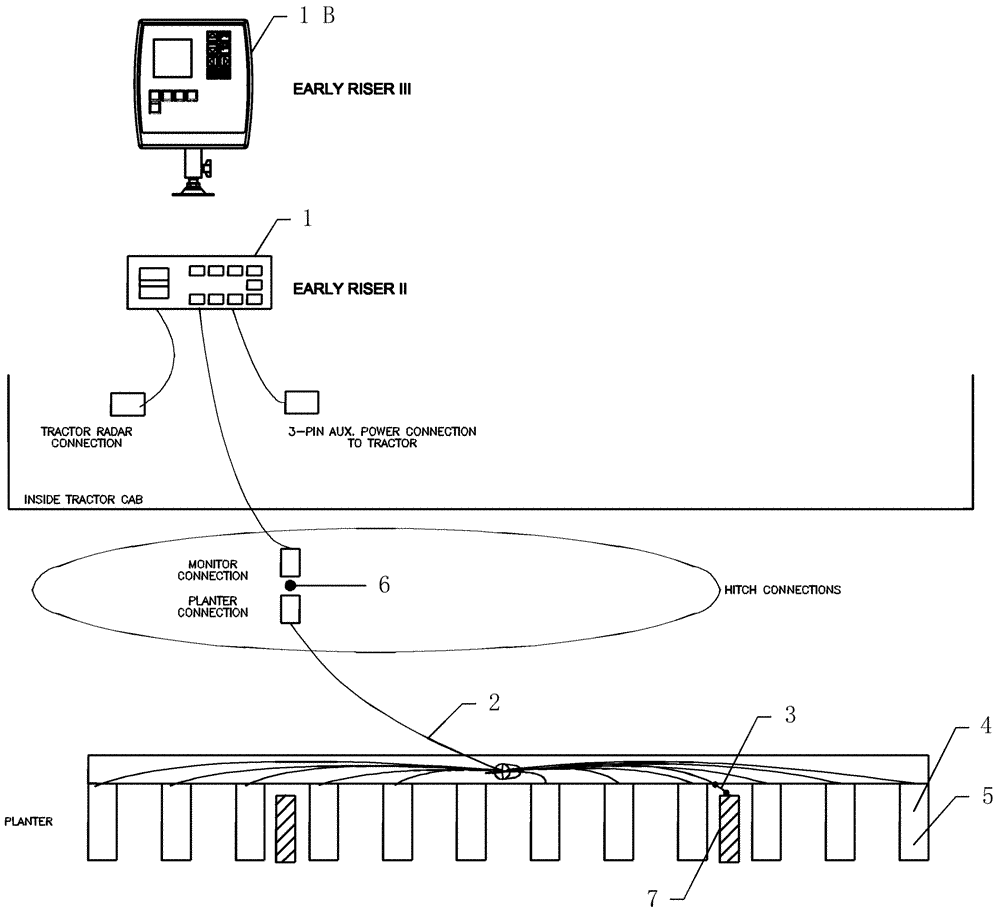

Запчасти Case IH 1200 (A.50.A[27]) - ELECTRICAL - EARLY RISER II & III - CASE PLANTER MONITOR LAYOUT A - Distribution Systems

1

414487A1

MODULE

Early Riser II monitor, Serial Range: -CBJ025391

1шт.

87548618R

REMAN-INSTR CLUSTER

1200 (Serial Range: -CBJ025391) (11/01-7/08), Reman for new PN 414487A1

1шт.

87548618C

CORE-CLUSTER, INSTR

Return Number

1шт.

1b

87548618

MODULE

Early Riser III monitor, Start Serial: CBJ025392

1шт.

87548618R

REMAN-INSTR CLUSTER

1200 (Start Serial: CBJ025392) (11/01-7/08)

1шт.

87548618C

CORE-CLUSTER, INSTR

Return Number

1шт.

2

414489A1

HARNESS

6 row Early Riser II and III monitor

1шт.

2

414490A1

HARNESS

8 row Early Riser II and III monitor

1шт.

2

414491A1

HARNESS

12 row Early Riser II and III monitor

1шт.

2

87593384

HARNESS

16 row Early Riser III monitor

1шт.

3

436521A1

ADAPTER

wiring harness plug

1шт.

4

404831A1

SENSOR

hi rate seed

1шт.

5

87688051

TUBE,737, 400 mm L

Seed

1шт.

6

418649A1

HARNESS

6' Early Riser II extension

1шт.

6

418650A1

HARNESS

15' Early Riser II extension

1шт.

7

324049A1

SENSOR

speed hall

1шт.

8

86977690

LOCK WASHER,Ext Tooth, 5/8"

2шт.

Not Shown - for use with sensor 324049A1

1шт.
