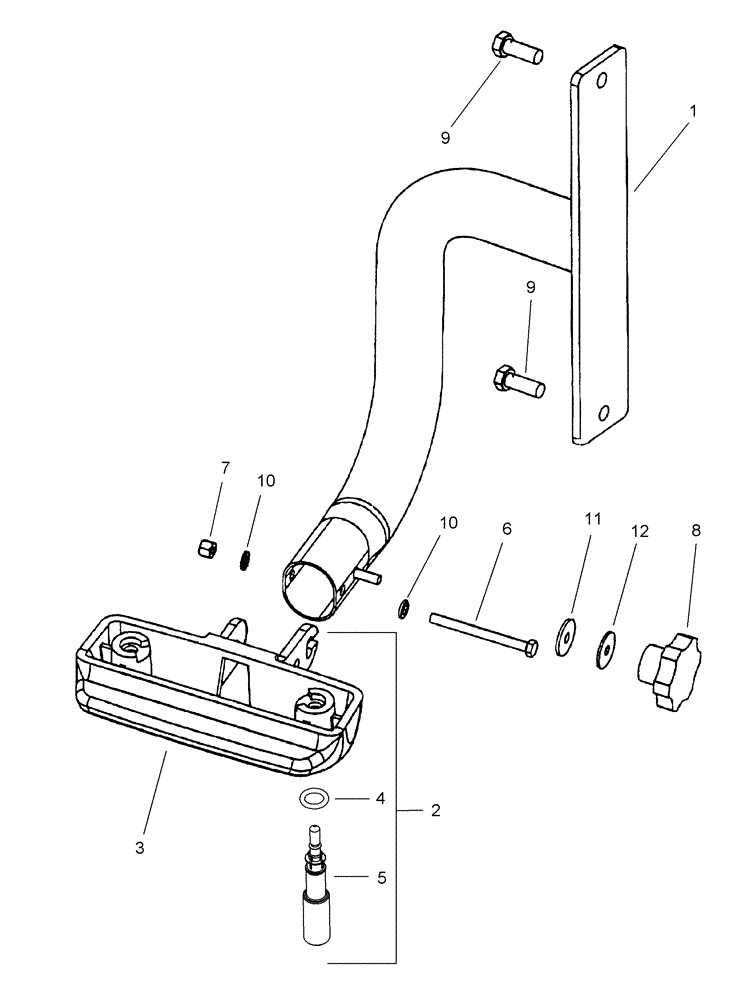

Запчасти Case IH 1200 (A.50.A[25]) - ELECTRICAL - ADVANCED FARMING SYSTEMS CDU/ECDU MOUNTING, 9100, 9200 AND 9300 SERIES STEIGER TRACTORS A - Distribution Systems

1

296635A1

BRACKET

mounting, tractor CDU

1шт.

2

349024A1

BRACKET

CDU/ECDU mounting

1шт.

3

297126A2

BRACKET

CDU/ECDU mounting

1шт.

4

49861

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

2шт.

5

349023A1

SCREW

retractable

2шт.

6

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

1шт.

7

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

1шт.

8

319729A1

KNOB

M6-1 female brass insert

1шт.

9

87023124

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

11

319725A1

RUBBER WASHER

25 mm od x 7 mm id x 2 mm thick

1шт.

12

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.
