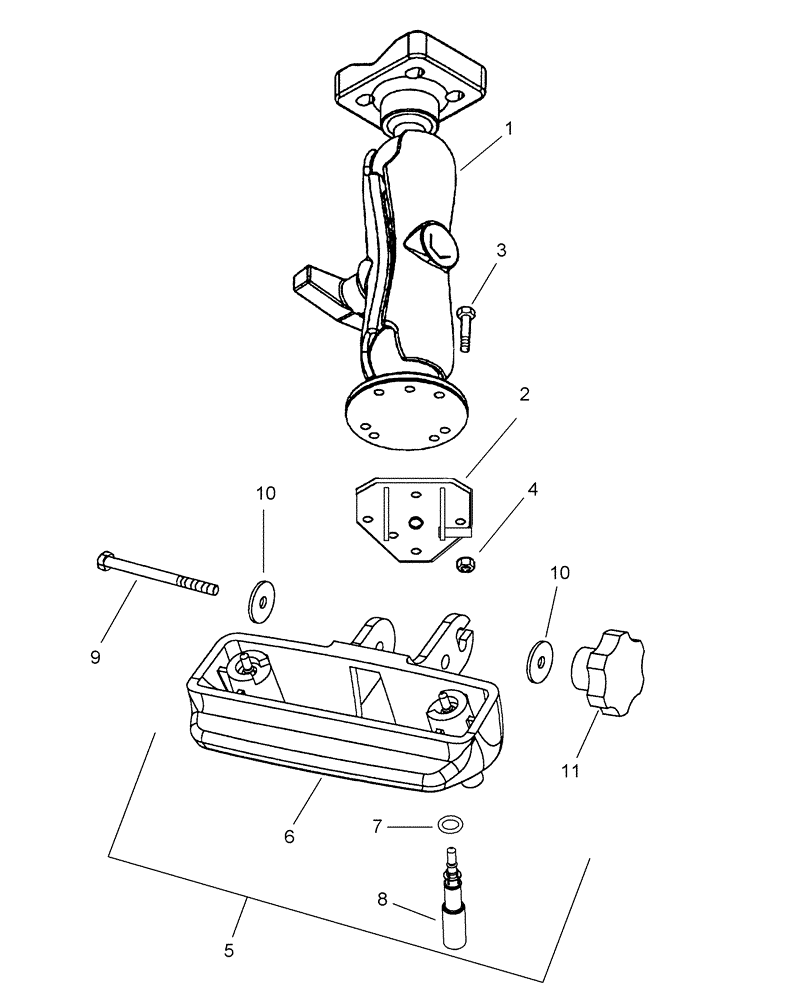

Запчасти Case IH 1200 (A.50.A[24]) - ELECTRICAL - ADVANCED FARMING SYSTEMS CDU/ECDU MOUNTING, WITH BALL AND SOCKET MOUNTING BRACKET A - Distribution Systems

1

407450A1

BRACKET

monitor mount

1шт.

2

404668A1

BASE

CDU/ECDU mounting

1шт.

3

86625179

SCREW,Hex, #10 - 24 x 3/4"

3шт.

4

86632551

NUT,#10-24, GB

3шт.

5

349024A1

BRACKET

CDU/ECDU mounting

1шт.

6

297126A2

BRACKET

CDU/ECDU mounting

1шт.

7

49861

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

2шт.

8

349023A1

SCREW

retractable

2шт.

9

412108

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8, Full Thd

1шт.

10

319725A1

RUBBER WASHER

25 mm od x 7 mm id x 2 mm thick

2шт.

11

319729A1

KNOB

M6-1 female brass insert

1шт.
