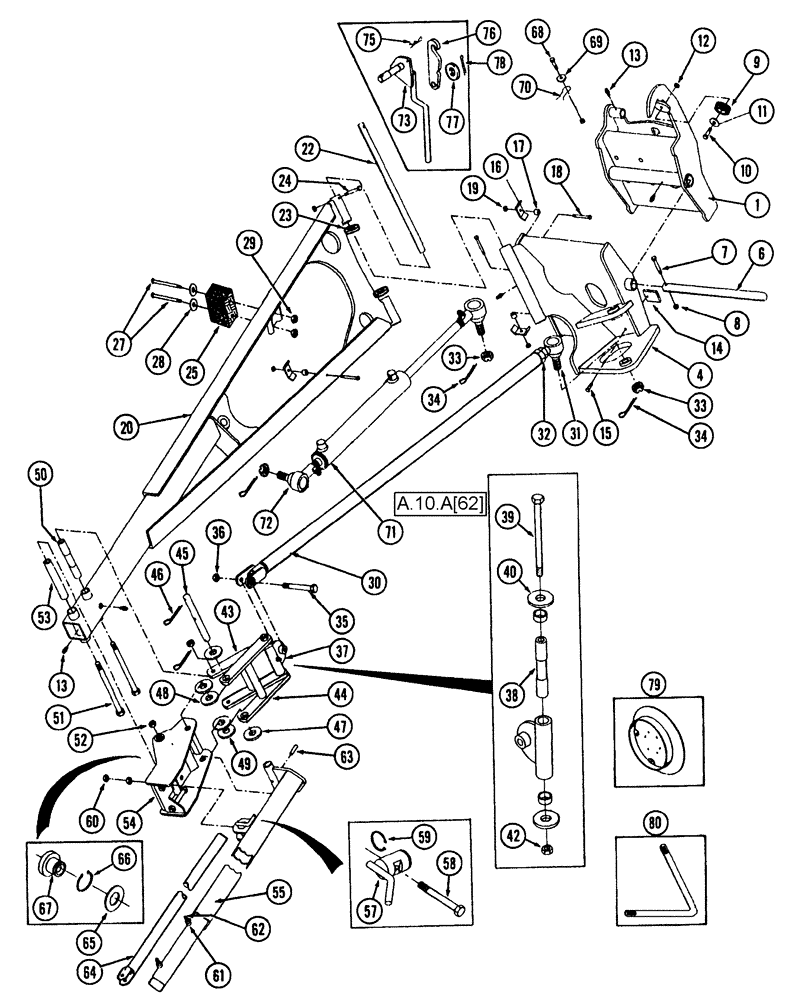

Запчасти Case IH 1200 (A.10.A[03]) - ROW MARKER- FOLDING, 12 ROW WIDE MOUNTED STACKER BSN CBJ036000 A - Distribution Systems

1

334263A1

BRACKET

rear fold marker mount

1шт.

Shown

1шт.

1a

334256A1

BRACKET

12 row rear fold

1шт.

12 Row Wide

1шт.

Not Shown

1шт.

1b

1254154C2

WARNING DECAL

2шт.

Not Shown

1шт.

3

356912A1

BUSHING

1 1/4" id x 1 1/2" od x 1" long

2шт.

Not Shown

1шт.

4

334265A1

MOUNTING PARTS

rear fold marker pivot

1шт.

Shown

1шт.

4

334259A1

MOUNTING PARTS

rear fold marker pivot

1шт.

Not Shown

1шт.

6

337130A1

PIN,31.75mm OD x 501.65mm L

1 1/4" x 19 3/4", marker pivot

1шт.

7

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

8

87030549

NUT,M10 x 1.5, Cl 10

1шт.

9

337125A1

BUMPER

2 1/2" diameter, rubber

1шт.

10

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

11

140017

WASHER,M10 x 20mm OD x 2mm Thk

1шт.

12

87030549

NUT,M10 x 1.5, Cl 10

2шт.

13

87414

LUBE NIPPLE,1/4" - 28

7шт.

14

337132A1

PLATE

marker mounting tab

2шт.

15

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

4шт.

16

337126A1

CLAMP

hydraulic hose

3шт.

17

337127A1

SPACER

hose clamp

3шт.

18

86625002

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8, Full Thd

3шт.

19

43362

NUT,M8 x 1.25, Cl 10

3шт.

20

334266A1

ARM

rear fold marker main LH

1шт.

Shown

1шт.

20

334261A1

ARM

rear fold marker main RH

1шт.

Not Shown

1шт.

22

337131A1

PIN,25.4mm OD x 546.1mm L

1" x 21 1/2", marker

1шт.

23

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

24

87023162

PIN,9.53mm OD x 44.45mm L

1шт.

25

337124A1

BUMPER

rubber stop

1шт.

27

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

2шт.

28

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

29

412672

NUT,Hex, M12 x 1.75, Cl 10

2шт.

30

357199A1

STRUT

Orthman marker

1шт.

31

357197A1

BALL JOINT

male RH

1шт.

32

425-1118

NUT,1 1/8"-12, G5

1шт.

33

87432

SLOTTED NUT,3/8"-16

3шт.

34

80708

COTTER PIN,1/8" x 1 1/2"

3шт.

35

394674

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8, Full Thd

1шт.

36

832-41316

NUT,M16 x 2, Cl 10

1шт.

37

333650A1

BRACKET

marker strut attachment RH

1шт.

38

357207A1

BUSHING

inner marker

1шт.

39

86622969

BOLT,Hex, M16 x 250mm, Cl 8.8

1шт.

40

86624167

WASHER,25.81mm ID x 44.45mm OD x 0.91mm Thk

2шт.

41

357208A1

BUSHING

split

4шт.

Not Shown

1шт.

42

412066

NUT,M16 x 2.0, Cl 8

1шт.

43

334268A1

LINK

rear fold marker small

1шт.

44

334267A1

LINK

rear fold marker large

1шт.

45

337133A1

PIN,25.4mm OD x 231.9mm L

1" x 9 1/8", marker mount

1шт.

46

88182

COTTER PIN,1/4" OD x 2" L

2шт.

47

356326A1

BUSHING

1 1/2" od x 1" id x 14 ga

2шт.

48

356327A1

BUSHING

1 1/2" od x 1" id x 18 ga

2шт.

49

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

2шт.

50

337134A1

BUSHING

marker inner

1шт.

51

382358

BOLT,Hex, M16 x 2 x 200mm, Cl 8.8

2шт.

52

392530

NUT,M16, Cl 10

2шт.

53

337136A1

BUSHING

pivot box inner

1шт.

54

332811A1

PIVOT

box, rear fold marker

1шт.

55

334264A1

ARM

rear fold marker second

1шт.

Shown

1шт.

55

334257A1

ARM

rear fold marker

1шт.

Not Shown

1шт.

57

333651A1

TRUNNION

1300 marker shear bolt

1шт.

58

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

3шт.

59

40974

SNAP RING,#125, Ext

1шт.

60

43362

NUT,M8 x 1.25, Cl 10

3шт.

61

86632558

JAM NUT,Jam, 1/2"-13, G5

2шт.

62

86512816

SET SCREW,Sq Hd, 1/2" - 13 x 1 1/2", Cup Pt

set 1/2"-13 x 1 1/2" square head

2шт.

63

86624090

PIN,9.53mm OD x 38.1mm L

1шт.

64

374793A1

TUBE

extension fold toolbar

1шт.

65

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

66

129164

SNAP RING,#75, Ext

1шт.

67

356898A1

PIN

marker, shear bolt alignment

1шт.

68

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

69

337128A1

BUSHING

clip retainer

1шт.

70

PL

PROCURE LOCALLY

PIN - HAIR CLIP, 51/64"

1шт.

71

414710A1

STEERING CYLINDER

2 1/2" x 18", Years: -31-OCT-01

1шт.

71

87501758

HYDRAULIC CYLINDER

1394 marker 2 1/2" x 18", Start Year: 01-NOV-01

1шт.

72

332759A1

BALL JOINT

Orthman pn 339-849

2шт.

Includes nut and cotterpin

1шт.

73

356907A1

BRACKET

manual pivot hook LH

1шт.

Shown

1шт.

73

356906A1

BRACKET

manual pivot hook RH

1шт.

Not Shown

1шт.

75

PL

PROCURE LOCALLY

PIN Hair Clip, 11/64" x 3 3/4"

1шт.

76

356908A1

BRACKET

hook, manual pivot

1шт.

77

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

78

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

79

REF

INSTRUCTION

disc assembly - marker

1шт.

80

374953A1

BOLT

mount V

1шт.

81

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

Not Shown

1шт.

82

86512372

SERRATED NUT,Flg, USR, 3/4"-10

2шт.

Not Shown

1шт.
