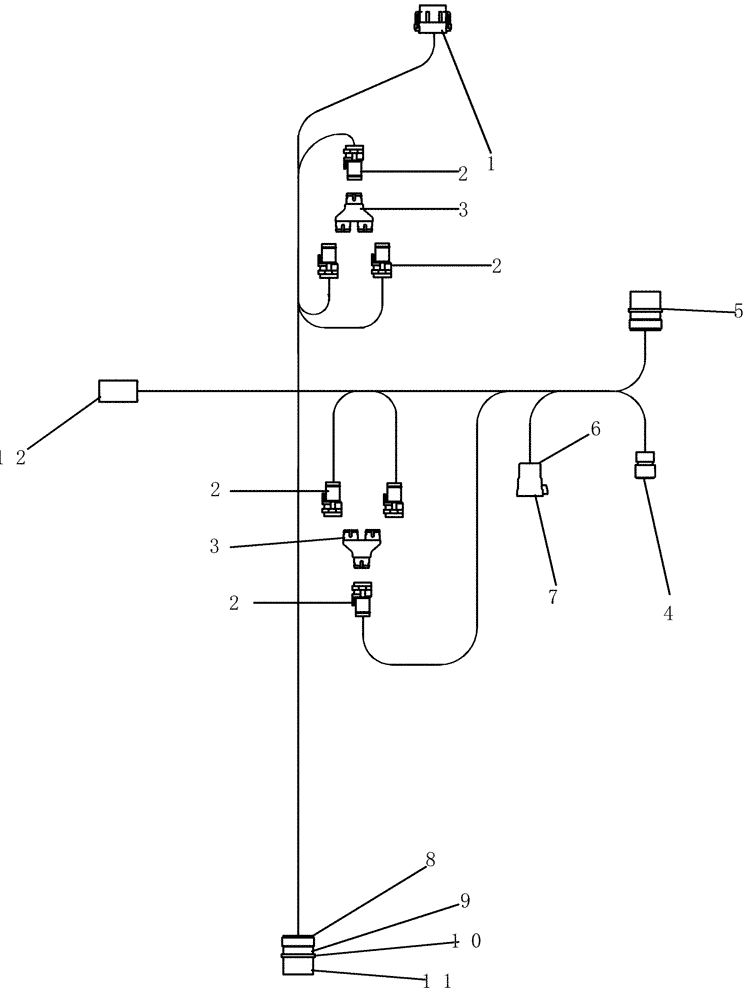

Запчасти Case IH 1200 (A.50.A[13]) - ELECTRICAL - ADVANCED FARMING SYSTEMS UNIVERSAL TRACTOR HARNESS 400480A1 A - Distribution Systems

0

400480A1

HARNESS

basic, generic tractor

1шт.

1

87700156

CONTACT HOUSING,Female, 12 Pole

Deutsch 12 way dtm plug, grey

1шт.

2

298496A1

ELEC CONNECTOR,4 Pin

ITT Cannon CLC plug 4 Pin

6шт.

3

298495A1

ELEC CONNECTOR,4 Pin

ITT Cannon Y splice

2шт.

4

87675194

MULTIPOLE CONNECTOR,Female, 3 Pole

plastic 3c plug

1шт.

5

310057A1

ELEC CONNECTOR,Male, 9 Pin

Deutsch HD10 series Receptacle

1шт.

6

297910A1

ELEC CONNECTOR,Female, 5 Pin

Packard 280 metri-pack, 5-way

1шт.

7

293256A2

RELAY,12V

12v 40 amp weatherproof

1шт.

8

352506A1

ELEC CONNECTOR,Male, 9 Pin

metal 9c receptacle

1шт.

9

51200012

LOCK WASHER

split 1 3/4" id x 3/32" tk

1шт.

10

459329C1

NUT

1 11/16"-18 aluminum 3/16" thick

1шт.

11

245041C1

CAP

dust 23 cond plug Deutsch

1шт.

12

86622300

ELEC CONNECTOR

4-cav Plug DT Series

1шт.
