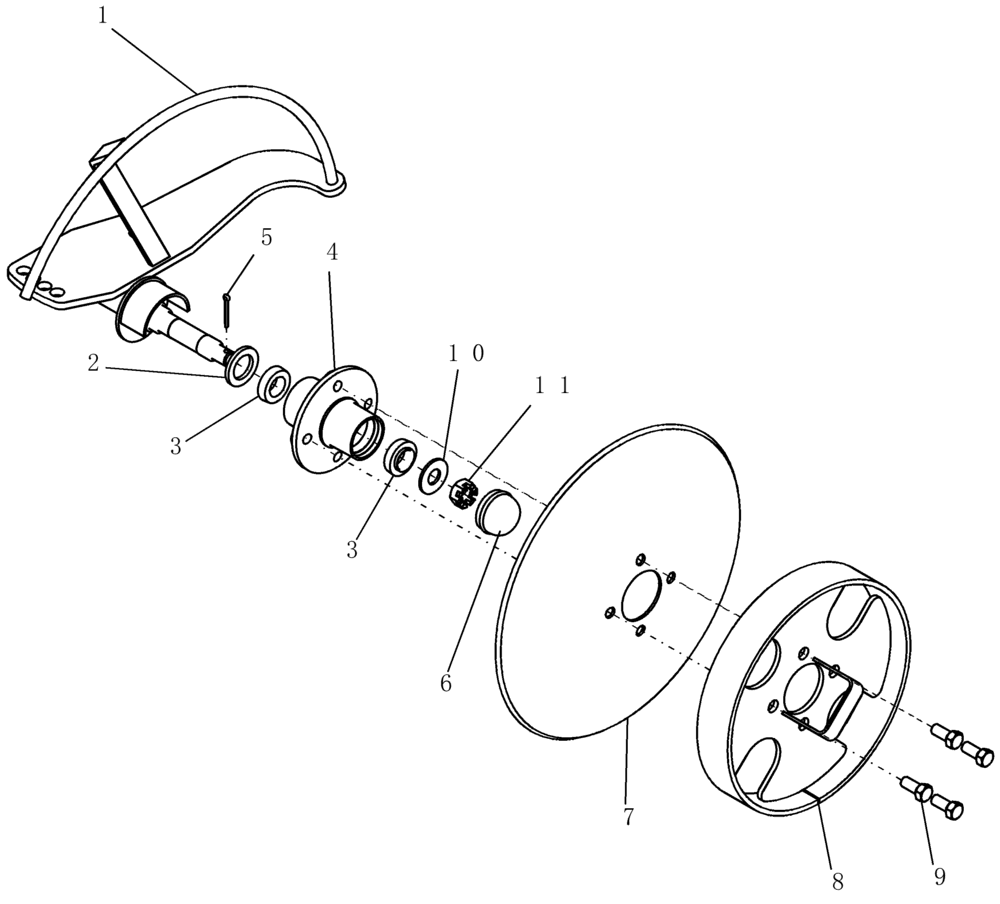

Запчасти Case IH 1200 (A.10.A[02]) - MARKER DISC ASSEMBLY, MOUNTED STACKER FRAMES ASN CBJ036001 A - Distribution Systems

0

87557031

DISC

endmarker RH

1шт.

0

87557030

DISC

endmarker LH

1шт.

1

87410959

GUARD

disc endmarker RH

1шт.

1

87410958

GUARD

disc endmarker LH

1шт.

2

432625A1

OIL SEAL

SE10

1шт.

3

132710

BEARING CONE,25.4mm ID x 14.73mm W

TM#L44643

2шт.

4

87412999

HUB

H211 assembly with cups and bolts

1шт.

5

86523851

COTTER PIN,5/32" x 1 1/4"

1шт.

6

9702386

DUST CAP

hub H211

1шт.

7

87557023

DISC

16" smooth marker

1шт.

8

87557028

RING

depth band

1шт.

9

87417305

BOLT

1/2"-20 x 1", G5, WB55

4шт.

10

86012106

WASHER

spindle wa10 .75 id

1шт.

11

88886

SLOTTED NUT,3/4"-16

11шт.

12

1581

BEARING CUP

H211 Hub

2шт.
