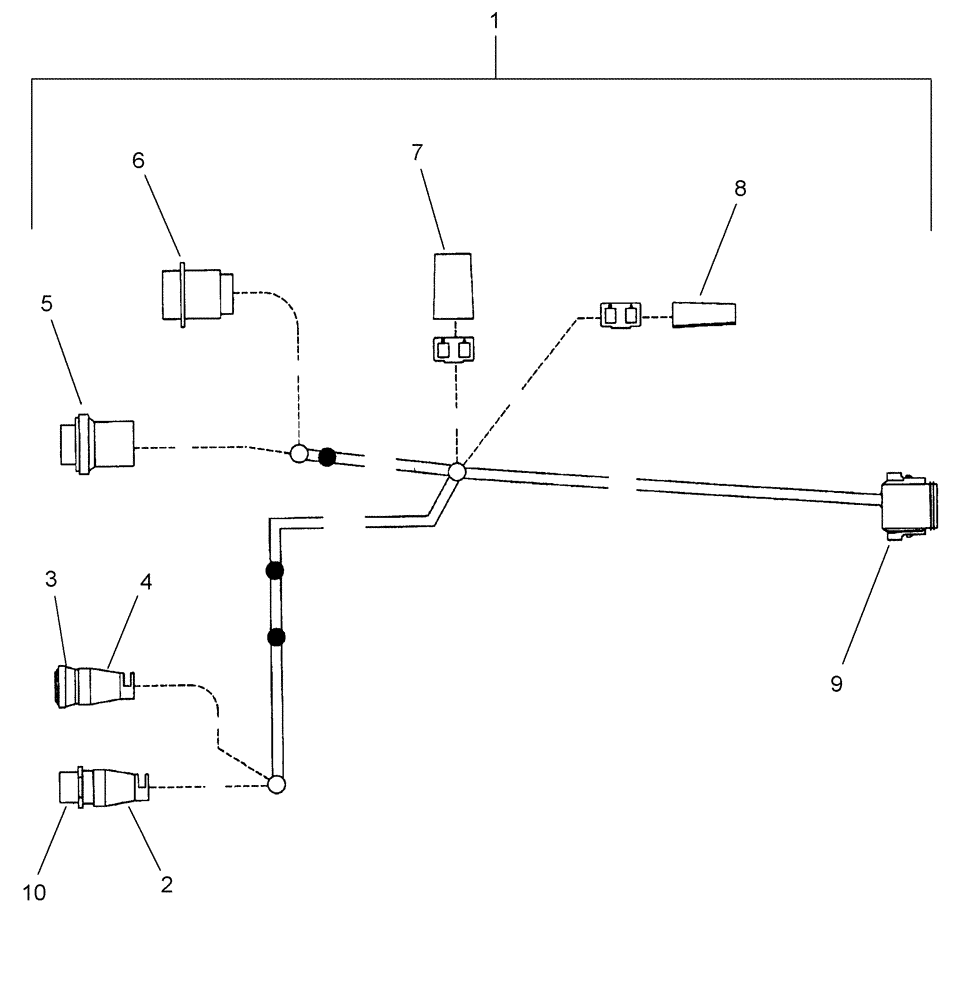

Запчасти Case IH 1200 (A.50.A[06]) - ELECTRICAL - ADVANCED FARMING SYSTEMS ADAPTER HARNESS - 247365A2 A - Distribution Systems

1

247365A2

HARNESS

AFS adapter

1шт.

2

247725A1

ELEC CONNECTOR

electrical

1шт.

3

247723A1

ELEC CONNECTOR,Male, 4 Pin

electrical

1шт.

4

247725A1

ELEC CONNECTOR

electrical

1шт.

5

87675194

MULTIPOLE CONNECTOR,Female, 3 Pole

plastic 3c plug

1шт.

6

225164C1

ELEC CONNECTOR

plastic 3c receptacle

1шт.

7

247676A1

MULTIPOLE CONNECTOR,Female, 2 Pin

switched fuse

1шт.

8

247676A1

MULTIPOLE CONNECTOR,Female, 2 Pin

switched fuse

1шт.

9

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

plastic 8C plug

1шт.

10

247724A1

ELEC CONNECTOR,Female, 4 Pin

electrical

1шт.
