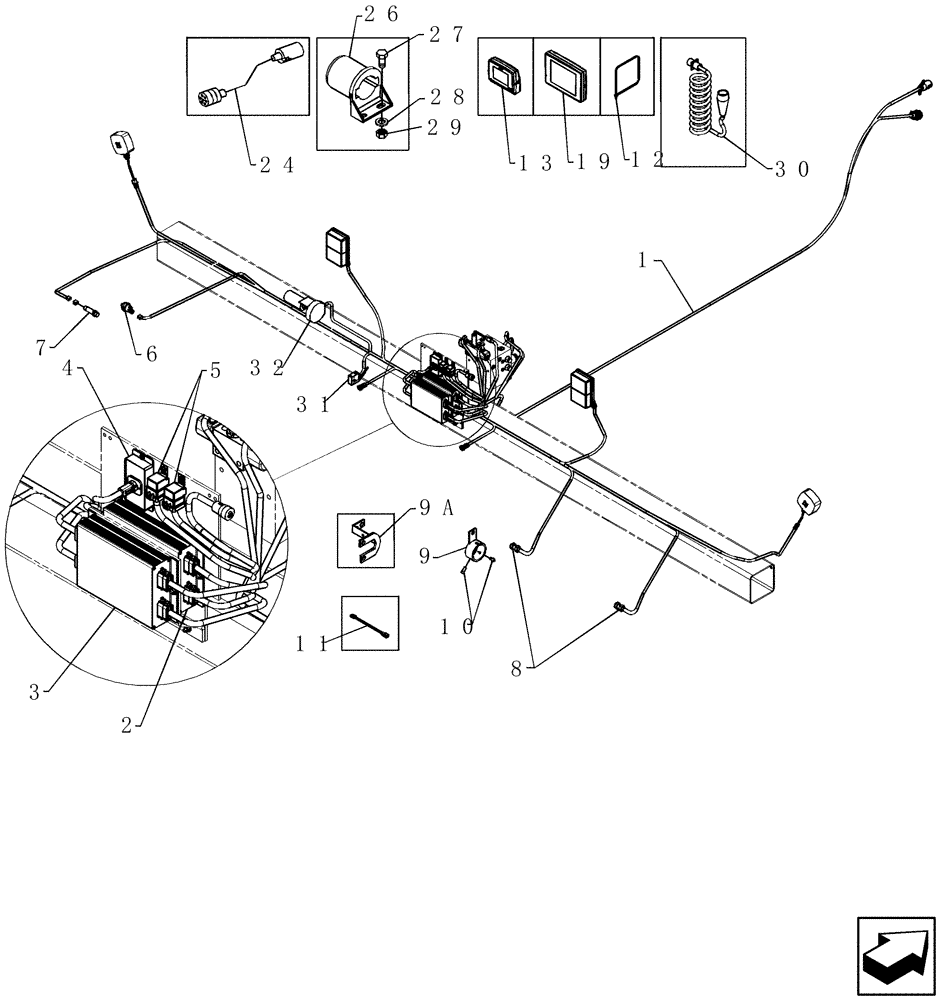

Запчасти Case IH 1200 (A.50.A[04]) - ELECTRICAL - HARNESS, AFS MONITOR/ CONTROLLER SYSTEM - RIGID TRAILING (VARIABLE RATE) A - Distribution Systems

1

87421383

HARNESS

6 and 8 row narrow trailing planter, hydraulic drive

1шт.

2

405514A1

CONTROL

module, monitor interface

1шт.

2

405514A1R

REMAN ELECT CONTROL

1200 CASE IH ADVANCED SEED METER PLANTER, module, monitor interface (11/01-7/08)

1шт.

2

405514A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

405513A1

CONTROL

module, multi channel

1шт.

3

405513A1R

REMAN-MODULE

Module - Multi Channel

1шт.

3

405513A1C

CORE-MODULE

CORE-MODUL Return Number, MODULE

1шт.

4

284638A2

ELEC CONNECTOR,4 Pin

terminator, ASM monitor

1шт.

5

293256A2

RELAY,12V

12v 40 amp weatherproof

1шт.

6

404625A1

SENSOR

vacuum, Years: -01-MAY-07

1шт.

6

87539925

SENSOR

vacuum assembly, Start Year: 01-JUN-07

1шт.

6

87505308

CAP

vacuum, Years: -01-MAY-07

1шт.

6

87613344

CAP

vacuum, Start Year: 01-JUN-07

1шт.

6

87505318

CLAMP

hose

1шт.

7

404197A1

SENSOR

bin level

1шт.

8

324049A1

SENSOR

speed hall

2шт.

9

329502A1

BRACKET

speed sensor

1шт.

9a

309065A1

BRACKET

speed sensor

1шт.

9b

367004A3

BRACKET

wheel sensor mount

1шт.

Not Shown

1шт.

10

86624113

SET SCREW,Sq Hd, 1/2" - 13 x 3/4"

2шт.

11

323322A1

HARNESS

Cyclo chem, extension

1шт.

12

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

20шт.

13

436515A1

CONTROL MONITOR

package, service kit CDU

1шт.

19

436516A1

SERVICE KIT

universal display plus

1шт.

23a

86976851

SOFTWARE

card, data flash 32 mb

1шт.

Not Shown

1шт.

24

352457A1

HARNESS

extension for culter cart

1шт.

24

255316A1

HARNESS

extension

1шт.

If used

1шт.

25

355955A1

HARNESS

cyclo cooling

1шт.

Not Shown

1шт.

26

382110A1

CONTACT HOUSING

cap, Cole Hersee seven pin

1шт.

27

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

28

80682

LOCK WASHER,1/4"

2шт.

29

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

30

1983416C2

SWITCH

calibration

2шт.

31

404202A1

SENSOR

rotary position

1шт.

32

296164A2

SENSOR

application rate

1шт.

33

86977690

LOCK WASHER,Ext Tooth, 5/8"

2шт.

Not Shown - for use with sensor 324049A1

1шт.
