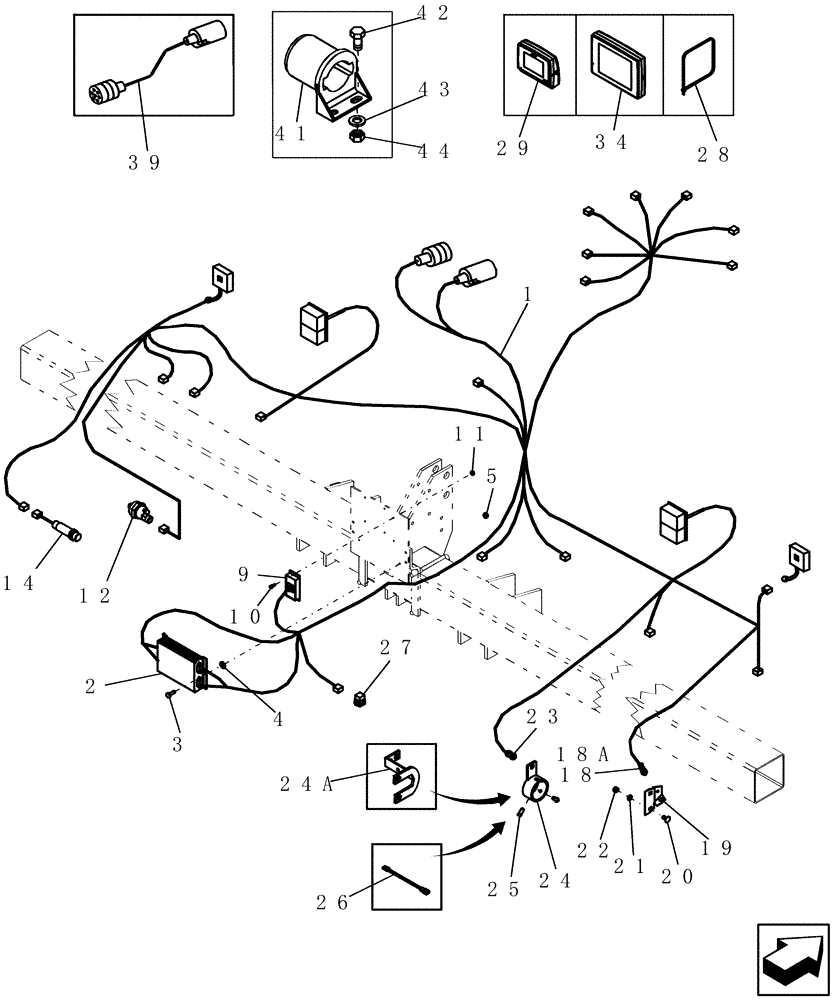

Запчасти Case IH 1200 (A.50.A[02]) - ELECTRICAL - HARNESS, AFS MONITORING/ CONTROLLER SYSTEM (MECH DRIVE) (AFTER NOVEMBER, 2003) A - Distribution Systems

1

87424357

HARNESS

rigid and stacker planters, mechanical drive

1шт.

1

87424356

HARNESS

6 and 8 row narrow trailing planter, mechanical drive

1шт.

2

405514A1

CONTROL

module, monitor interface

1шт.

2

405514A1R

REMAN ELECT CONTROL

1200 CASE IH ADVANCED SEED METER PLANTER, module, monitor interface (11/01-7/08)

1шт.

2

405514A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

4

88538

LOCK WASHER,Ext-Int Tooth, 1/4"

2шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

9

284638A2

ELEC CONNECTOR,4 Pin

terminator, ASM monitor

1шт.

10

86624117

SCREW,Hex, #10 - 24 x 1/2"

2шт.

11

87304

NUT,#10-24

2шт.

12

404625A1

SENSOR

vacuum, Years: -01-MAY-07

1шт.

12

87539925

SENSOR

vacuum assembly, Start Year: 01-JUN-07

1шт.

12

87505308

CAP

vacuum, Years: -01-MAY-07

1шт.

12

87613344

CAP

vacuum, Start Year: 01-JUN-07

1шт.

12

87505318

CLAMP

hose

1шт.

14

404197A1

SENSOR

bin level

1шт.

18

177499A2

LIMIT SWITCH

plunger

2шт.

18a

188603A1

JAM NUT

dress M16 x 2 x 4

2шт.

Not Shown

1шт.

19

323990A2

BRACKET

implement status switch

2шт.

20

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

22

280431

NUT,1/2"-13, G5

4шт.

23

324049A1

SENSOR

speed hall

1шт.

24

329502A1

BRACKET

speed sensor

1шт.

24a

309065A1

BRACKET

speed sensor

1шт.

Rigid Trailing

1шт.

24b

367004A3

BRACKET

wheel sensor mount

1шт.

Rigid Mounted and Mounted Stacker

1шт.

Not Shown

1шт.

25

86624113

SET SCREW,Sq Hd, 1/2" - 13 x 3/4"

2шт.

Rigid Mounted

1шт.

26

323322A1

HARNESS

Cyclo chem, extension

1шт.

Rigid Mounted

1шт.

27

293256A2

RELAY,12V

12v 40 amp weatherproof

1шт.

28

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

20шт.

29

436515A1

CONTROL MONITOR

package, service kit CDU

1шт.

34

436516A1

SERVICE KIT

universal display plus

1шт.

38a

86976851

SOFTWARE

card, data flash 32 mb

1шт.

Not Shown

1шт.

39

352457A1

HARNESS

extension for culter cart

1шт.

For service of internal twisted quad wire cable, order 362093A1 bulk cable

1шт.

39

255316A1

HARNESS

extension

1шт.

40

355955A1

HARNESS

cyclo cooling

1шт.

Not Shown

1шт.

41

382110A1

CONTACT HOUSING

cap, Cole Hersee seven pin

1шт.

42

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

43

80682

LOCK WASHER,1/4"

2шт.

44

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

45

86977690

LOCK WASHER,Ext Tooth, 5/8"

2шт.

Not Shown - for use with sensor 324049A1

1шт.
