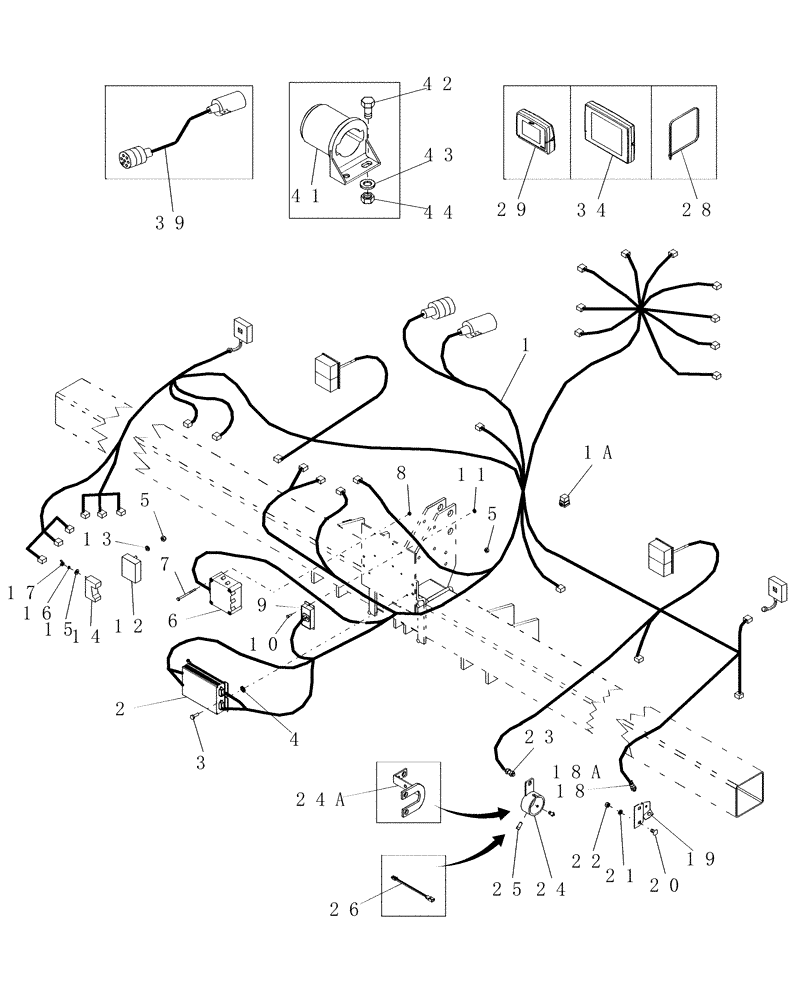

Запчасти Case IH 1200 (A.50.A[01]) - ELECTRICAL - HARNESS, AFS MONITORING/ CONTROLLER SYSTEM (MECH DRIVE) (UP TO OCTOBER, 2003) A - Distribution Systems

1

323803A3

HARNESS

ASM Main, 8 & 12 Row

1шт.

Rigid Mounted and Mounted Stacker

1шт.

1

337534A3

HARNESS

main ASM 6 & 8 row trailing

1шт.

Rigid Trailing

1шт.

1a

293256A2

RELAY,12V

12v 40 amp weatherproof

1шт.

2

330315A2

PRINTED CIRCUIT BOAR

monitor interface controller, Years: -31-DEC-02

1шт.

2

405514A1R

REMAN ELECT CONTROL

1200 CASE IH ADVANCED SEED METER PLANTER, monitor interface controller (11/01-7/08), Reman for New PN 330315A2

1шт.

2

405514A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

405514A1

CONTROL

module, monitor interface, Start Year: 01-JAN-03

1шт.

2

405514A1R

REMAN ELECT CONTROL

1200 CASE IH ADVANCED SEED METER PLANTER, module, monitor interface (11/01-7/08)

1шт.

2

405514A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

4

88538

LOCK WASHER,Ext-Int Tooth, 1/4"

2шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

6

293807A5

MODULE

gateway, bin level, Serial Range: -CBJ0018589

1шт.

7

280492

BOLT,Hex, 1/4" - 20 x 3 1/2", Gr 5

4шт.

8

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

9

284638A2

ELEC CONNECTOR,4 Pin

terminator, ASM monitor

1шт.

10

86624117

SCREW,Hex, #10 - 24 x 1/2"

2шт.

11

87304

NUT,#10-24

2шт.

12

1336005C4

SENSOR

air pressure

1шт.

12

NSS

NOT SOLD SEPARAT

sensor air pressure

1шт.

12a

357704A1

AIR HOSE,3.30 mm ID x 914.00 mm

Air pressure

1шт.

Not Shown

1шт.

13

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

3шт.

13a

86624008

FITTING,1/8" Hose x 1/8" NPTF, Barbed

1шт.

Not Shown

1шт.

13b

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

14

1336023C2

SENSOR

hopper level

1шт.

15

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

16

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

17

129-900

WING NUT,Locking, #10-32

2шт.

18

177499A2

LIMIT SWITCH

plunger

2шт.

18a

188603A1

JAM NUT

dress M16 x 2 x 4

2шт.

Not Shown

1шт.

19

323990A2

BRACKET

implement status switch

2шт.

20

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

22

280431

NUT,1/2"-13, G5

4шт.

23

324049A1

SENSOR

speed hall

1шт.

24

329502A1

BRACKET

speed sensor

1шт.

24a

309065A1

BRACKET

speed sensor

1шт.

Rigid Trailing

1шт.

24b

367004A3

BRACKET

wheel sensor mount

1шт.

Rigid Mounted and Mounted Stacker

1шт.

Not Shown

1шт.

25

86624113

SET SCREW,Sq Hd, 1/2" - 13 x 3/4"

2шт.

Rigid Mounted and Mounted Stacker

1шт.

26

323322A1

HARNESS

Cyclo chem, extension

1шт.

Rigid Mounted

1шт.

28

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

20шт.

29

436515A1

CONTROL MONITOR

package, service kit CDU

1шт.

34

436516A1

SERVICE KIT

universal display plus

1шт.

38a

86976851

SOFTWARE

card, data flash 32 mb

1шт.

Not Shown

1шт.

39

352457A1

HARNESS

extension for culter cart

1шт.

For service of internal twisted quad wire cable, order 362093A1 bulk cable

1шт.

39

255316A1

HARNESS

extension

1шт.

40

355955A1

HARNESS

cyclo cooling

1шт.

Not Shown

1шт.

41

382110A1

CONTACT HOUSING

cap, Cole Hersee seven pin

1шт.

42

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

43

80682

LOCK WASHER,1/4"

2шт.

44

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

45

86977690

LOCK WASHER,Ext Tooth, 5/8"

2шт.

Not Shown - for use with sensor 324049A1

1шт.
