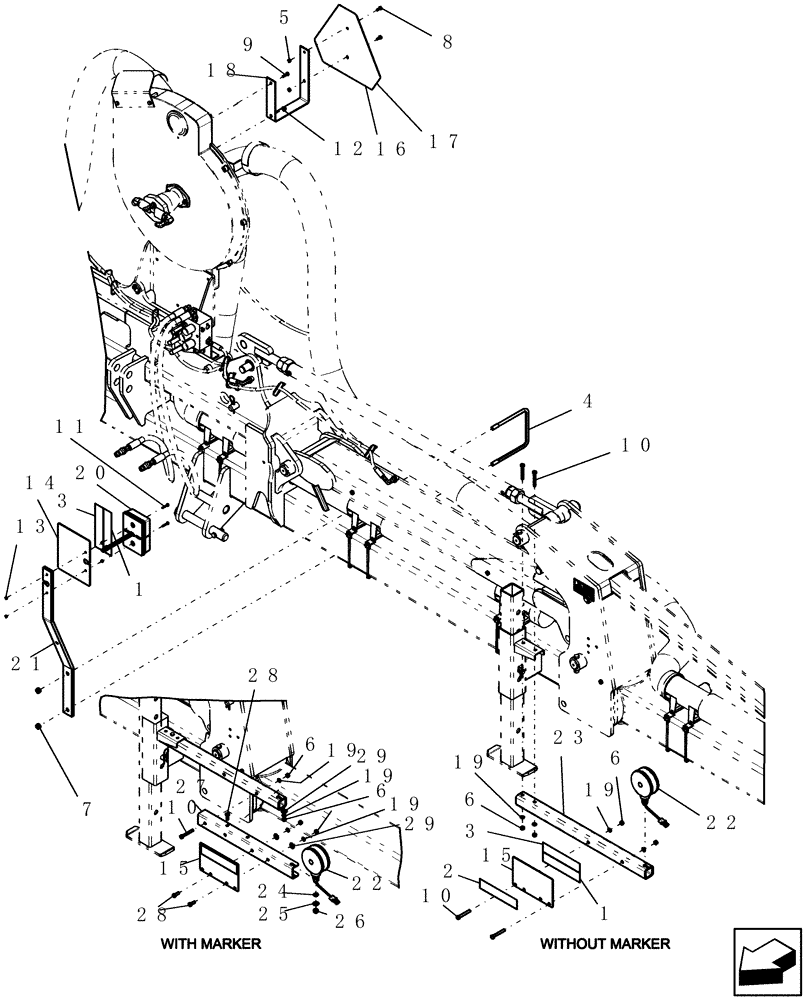

Запчасти Case IH 1200 (A.40.A[05]) - ELECTRICAL - SAFETY LIGHTING, ALL MOUNTED STACKER PLANTERS ASN CBJ036001 A - Distribution Systems

1

311863A1

REFLECTOR

Retroreflective Red

4шт.

2

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25"

2шт.

3

311865A1

REFLECTOR

fluorescent orange

4шт.

4

133351A1

U-BOLT,1/2" - 13 x 179.20mm W x 210mm L

us 1/2"-13 7" wide x 8 1/4" deep with 1 3/8" thread

2шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

6

9628503

NUT,3/8"-16, G5

8шт.

7

280431

NUT,1/2"-13, G5

4шт.

8

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

9

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

10

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

8шт.

11

86508566

BOLT,Hex, M5 x 30mm, Cl 8.8

4шт.

12

247780

SERRATED NUT,Flg, USR, 3/8"-16

10шт.

13

87016571

NUT,M5, Cl 5

8шт.

14

416851A1

BRACKET

plate, reflector support with decals

2шт.

15

416849A1

PLATE

reflector support

2шт.

16

311858A1

DECAL

SMV Emblem

1шт.

17

311859A1

TRAFFIC SIGN

plate - SMV

1шт.

18

362211A1

BRACKET

SMV Sign Mounting

1шт.

19

80680

LOCK WASHER,3/8 0.381 CST ZND

17шт.

20

307122A1

LAMP

stop, tail and turn

2шт.

21

87406672

BRACKET

tail light

2шт.

22

87564157

WARNING LIGHT

assembly amber

2шт.

23

307394A2

TUBE,1008 mm Length

warning light mount

2шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

25

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

26

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

27

87690801

BRACKET

light mount extension

2шт.

Used with marker only

1шт.

28

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

29

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.
