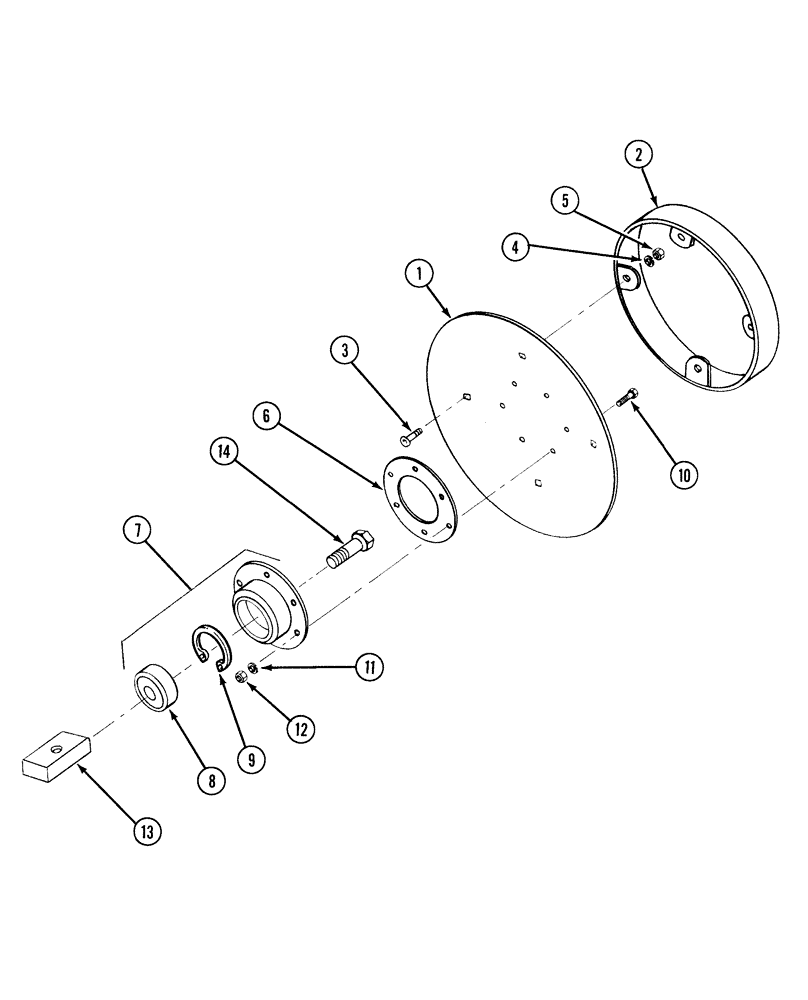

Запчасти Case IH 1200 (A.10.A[01]) - MARKER DISC ASSEMBLY, MOUNTED STACKER FRAMES BSN CBJ036000 A - Distribution Systems

0

357205A1

KIT

disc assembly Orthman 14" marker, No longer available

2шт.

1

357103A1

DISC

14"

1шт.

2

357102A1

BAND

marker disc, depth control

1шт.

3

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

4

280542

LOCK WASHER,8.43mm ID x 15.49mm OD x 0.86mm Thk

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

4шт.

6

357106A1

GASKET

Orthman marker

1шт.

7

357105A1

BEARING ASSY,0.85"

with hub, Orthman marker

1шт.

8

369108A1

BALL BEARING,0.75" ID

3/4" bore, cylinder od (206KPP16)

1шт.

9

101-21237

SNAP RING,#237, 2.537", Int

1шт.

10

86511443

BOLT,Hex Serr, 1/4" - 20 x 1", 5SPL, Full Thd

6шт.

11

86529539

LOCK WASHER,Int Tooth, 1/4"

6шт.

12

7770

NUT,Hex, 1/4 - 20, Cl 5

6шт.

13

357104A1

BLOCK

marker bearing

1шт.

14

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.
