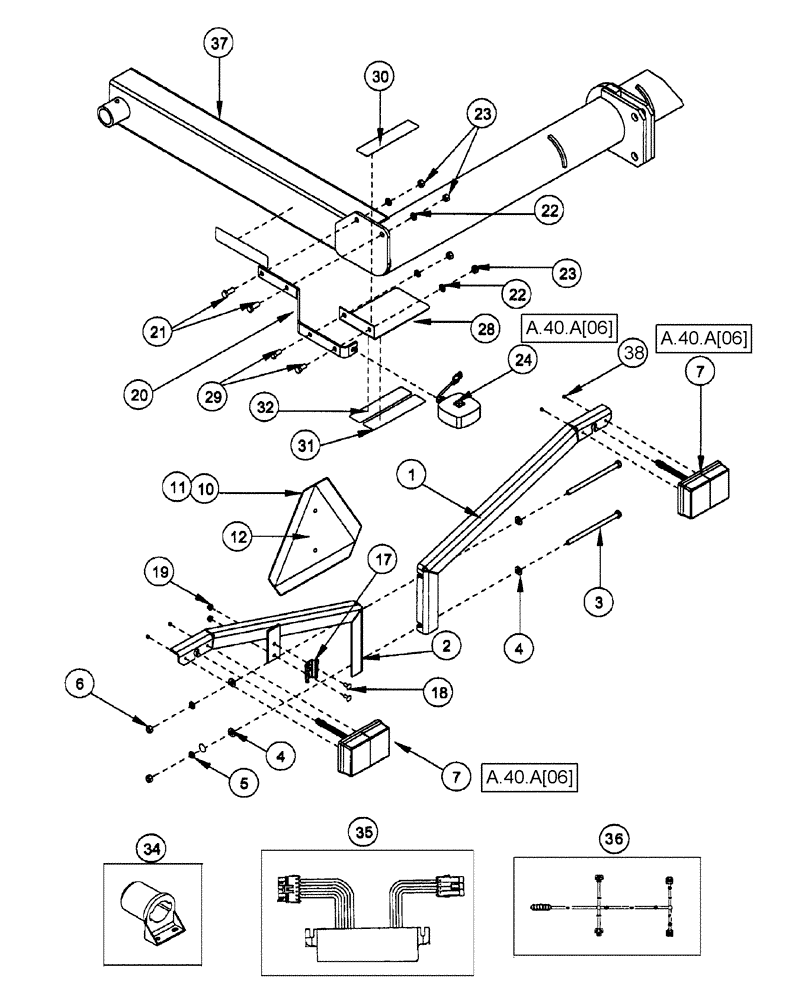

Запчасти Case IH 1200 (A.40.A[04]) - ELECTRICAL - SAFETY LIGHTING SYSTEM, ENDWISE TRANSPORT ATTACHMENT, RIGID TRAILING PLANTERS BSN CBJ022936 A - Distribution Systems

1

393331A1

BRACKET

light RH

1шт.

2

393333A1

BRACKET

light with sign mounting LH

1шт.

3

280214

BOLT,Hex, 1/2" - 13 x 8 1/2", Gr 5

2шт.

4

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

6

280431

NUT,1/2"-13, G5

2шт.

7

307122A1

LAMP

stop, tail and turn

2шт.

10

311862A1

PLATE

assembly, slow moving vehicle

1шт.

10

311861A1

SUPPORT

SMV sign

1шт.

Not Shown

1шт.

11

86547710

EMBLEM

KIT SMV

1шт.

11

NSS

NOT SOLD SEPARAT

plate Mounting, Slow Moving Vehicle Decal

1шт.

12

311858A1

DECAL

SMV Emblem

1шт.

13

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

Not Shown

1шт.

14

NSS

NOT SOLD SEPARAT

rivet, Service With 440-1258 & 425-104

2шт.

Not Shown

1шт.

15

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

2шт.

Not Shown

1шт.

16

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

Not Shown

1шт.

17

847590

BRACKET

socket, female, SMV emblem

1шт.

18

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

19

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

20

433380A1

BAR

EWT light support

2шт.

21

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

23

280431

NUT,1/2"-13, G5

8шт.

24

192052A1

REPAIR KIT

warning light (2 wire)

2шт.

24

NSS

NOT SOLD SEPARAT

lamp Warning, Order Kit 192052A1 Above

1шт.

25

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

Not Shown

1шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

Not Shown

1шт.

27

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

Not Shown

1шт.

28

416853A1

PLATE

reflector support

2шт.

28

433383A1

PLATE

reflector

2шт.

29

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

30

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25"

4шт.

31

311865A1

REFLECTOR

fluorescent orange

2шт.

32

311863A1

REFLECTOR

Retroreflective Red

2шт.

32a

1989613C1

SEAL

trim edge 20 1/2"

2шт.

Not Shown

1шт.

32a

196707C1

SEAL

strip, door opening edge

1шт.

Not Shown

1шт.

33

401326A1

HARNESS

endwise transport light -, Serial Range: tractor-module

1шт.

Not Shown

1шт.

34

382110A1

CONTACT HOUSING

cap, Cole Hersee seven pin

1шт.

35

402333A1

CONTROL

module, transport lighting

1шт.

36

401327A1

HARNESS

endwise transport light -, Serial Range: module-planter

1шт.

37

REF

INSTRUCTION

axle - transport

1шт.

38

87016571

NUT,M5, Cl 5

4шт.
