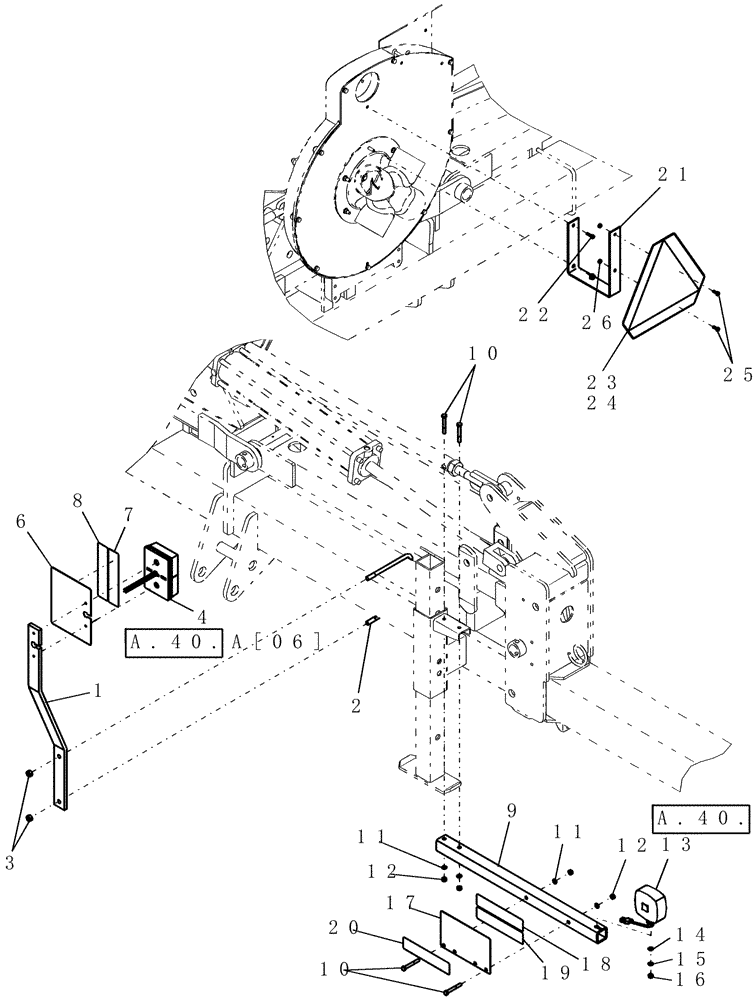

Запчасти Case IH 1200 (A.40.A[03]) - ELECTRICAL - SAFETY LIGHTING SYSTEM, 8 ROW WIDE, 12 ROW NARROW AND 16 ROW MOUNTED STACKERS BSN CBJ036000 A - Distribution Systems

1

87406672

BRACKET

tail light

2шт.

2

133351A1

U-BOLT,1/2" - 13 x 179.20mm W x 210mm L

us 1/2"-13 7" wide x 8 1/4" deep with 1 3/8" thread

2шт.

3

280431

NUT,1/2"-13, G5

4шт.

4

307122A1

LAMP

stop, tail and turn

2шт.

5

87016571

NUT,M5, Cl 5

4шт.

Not Shown

1шт.

6

416851A1

BRACKET

plate, reflector support with decals

2шт.

7

311863A1

REFLECTOR

Retroreflective Red

2шт.

8

311865A1

REFLECTOR

fluorescent orange

2шт.

9

307394A2

TUBE,1008 mm Length

warning light mount

2шт.

10

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

8шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

12

9628503

NUT,3/8"-16, G5

8шт.

13

192052A1

REPAIR KIT

warning light (2 wire)

2шт.

14

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

16

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

17

416849A1

PLATE

reflector support

2шт.

Includes 311863A1, 311864A1 and 311865A1

1шт.

18

311863A1

REFLECTOR

Retroreflective Red

1шт.

19

311865A1

REFLECTOR

fluorescent orange

1шт.

20

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25"

1шт.

21

362211A1

BRACKET

SMV Sign Mounting

1шт.

22

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

23

86547710

EMBLEM

KIT SMV

1шт.

23

NSS

NOT SOLD SEPARAT

plate Mounting, Slow Moving Vehicle Decal

1шт.

24

311858A1

DECAL

SMV Emblem

1шт.

25

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.
