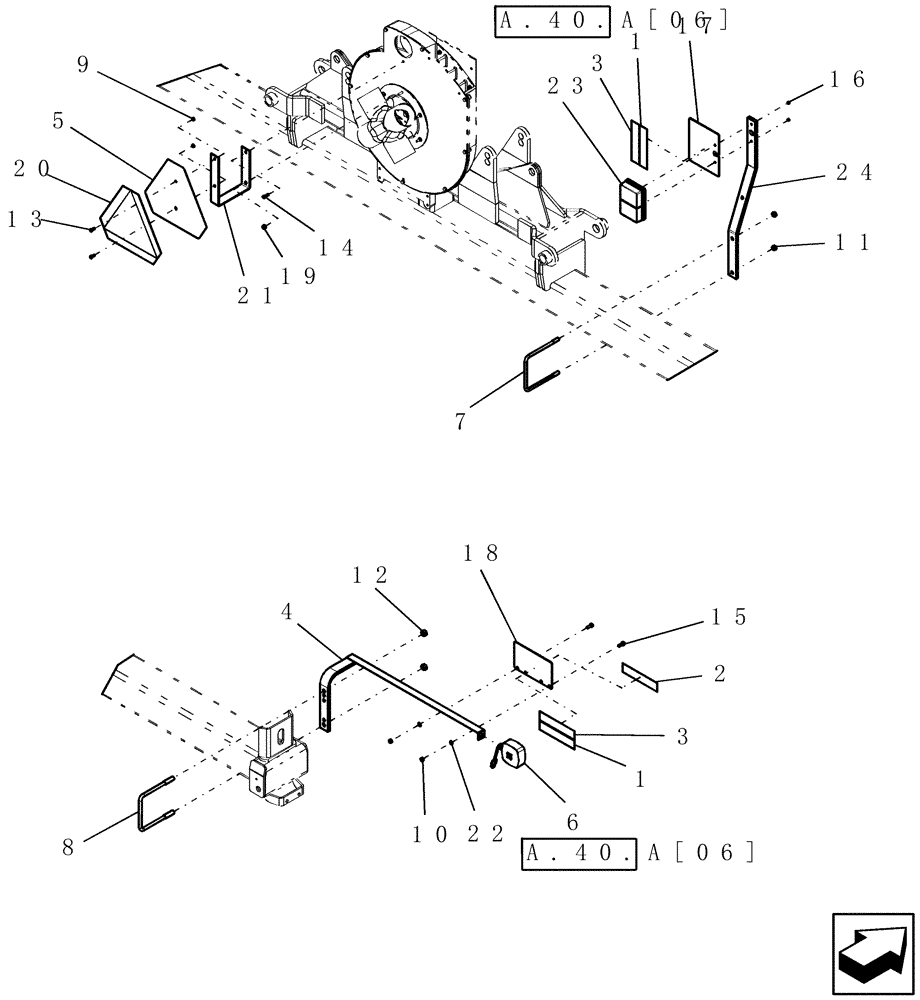

Запчасти Case IH 1200 (A.40.A[01]) - ELECTRICAL - SAFETY LIGHTING SYSTEM, ALL RIGID MOUNTED FRAMES (AND 12 ROW WIDE STACKER BSN CBJ036000) A - Distribution Systems
№
Артикул
Название
Примечание
Количество
1
311863A1
REFLECTOR
Retroreflective Red
4шт.
2
311865A1
REFLECTOR
fluorescent orange
2шт.
3
311864A1
REFLECTOR
Retroreflective Amber 1.375" x 7.25"
4шт.
4
1333945C5
BRACKET
safety light LH
1шт.
8 Row
1шт.
40" Spacing
1шт.
Rigid Mounted
1шт.
4
323669A1
BRACKET
safety light RH
1шт.
12 Row Wide
1шт.
Shown
1шт.
8 Row
1шт.
30, 36 & 38" Spacing
1шт.
Rigid Mounted
1шт.
4
1333944C5
BRACKET
safety light RH
1шт.
8 Row
1шт.
40" Spacing
1шт.
Rigid Mounted
1шт.
Not Shown
1шт.
4
323670A1
BRACKET
safety light LH
1шт.
12 Row Wide
1шт.
30, 36 & 38" Spacing
1шт.
Rigid Mounted
1шт.
Not Shown
1шт.
Used on Mounted Stacker 12 Row Wide Only
1шт.
6
NSS
NOT SOLD SEPARAT
light warning
2шт.
6
192052A1
REPAIR KIT
warning light (2 wire)
2шт.
7
133351A1
U-BOLT,1/2" - 13 x 179.20mm W x 210mm L
us 1/2"-13 7" wide x 8 1/4" deep with 1 3/8" thread
2шт.
8
1250813C1
U-BOLT
us 5/8"-11 x 7" x 8 1/4", G5, 2" thread
2шт.
9
7770
NUT,Hex, 1/4 - 20, Cl 5
2шт.
10
9628503
NUT,3/8"-16, G5
4шт.
13
9707580
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
2шт.
14
86505867
BOLT,Hex, 1/4" - 20 x 1", Gr 5
1шт.
15
88206
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
16
87016571
NUT,M5, Cl 5
4шт.
17
416851A1
BRACKET
plate, reflector support with decals
2шт.
18
416849A1
PLATE
reflector support
2шт.
19
247780
SERRATED NUT,Flg, USR, 3/8"-16
1шт.
20
311858A1
DECAL
SMV Emblem
1шт.
Decal applied directly to fan housing on rigid mounted machines
1шт.
21
362211A1
BRACKET
SMV Sign Mounting
1шт.
Used on Mounted Stacker 12 Row Wide Only
1шт.
22
80680
LOCK WASHER,3/8 0.381 CST ZND
4шт.
23
307122A1
LAMP
stop, tail and turn
2шт.
24
87406672
BRACKET
tail light
2шт.
25
9707580
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
2шт.
26
7770
NUT,Hex, 1/4 - 20, Cl 5
2шт.
