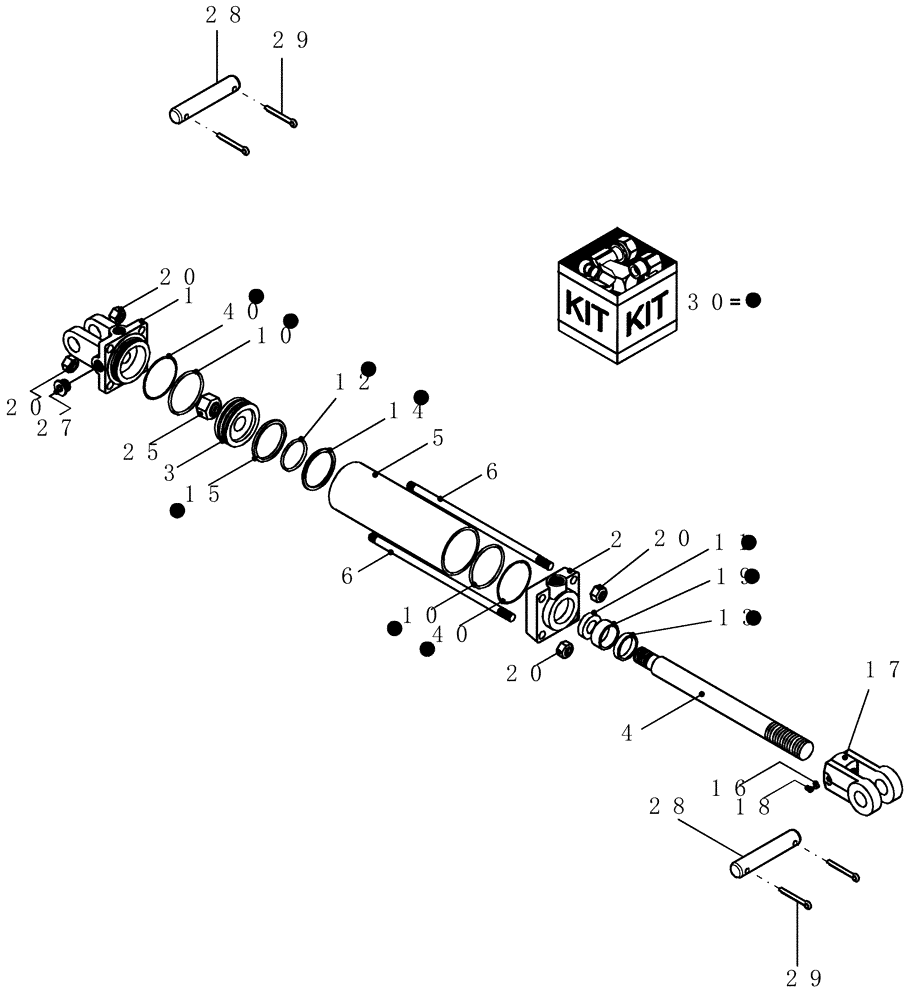

Запчасти Case IH 1200 (A.10.A[98]) - HYDRAULIC CYLINDER - 87660741, 3" X 10" - GULL WING 12 ROW WIDE AND 16 ROW MOUNTED STACKER ASN CBJ036001 A - Distribution Systems

0

87660741

HYDRAULIC CYLINDER,31.75mm Rod, 254mm Stroke

3" x 10" 3000 psi, no pins, single acting

1шт.

1

87409445

HEAD

cylinder base 3" bore

1шт.

2

87582273

CYLINDER END CAP

3" rod end

1шт.

3

87409478

PISTON

cylinder 3" bore Monarch #494734

1шт.

4

87637948

SHAFT

cylinder 3" x 10"

1шт.

5

87637933

BARREL

Cylinder, 3" x 10" Monarch

1шт.

6

87637934

THREADED TIE-ROD

3 x 10

4шт.

10

NSS

NOT SOLD SEPARAT

End Cap O-ring

2шт.

Included in repair kit 9681

1шт.

11

NSS

NOT SOLD SEPARAT

Rod Wiper Seal

1шт.

Included in repair kit 9681

1шт.

12

NSS

NOT SOLD SEPARAT

o-ring

1шт.

Included in repair kit 9681

1шт.

13

NSS

NOT SOLD SEPARAT

Rod Dust Seal

1шт.

Included in repair kit 9681

1шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

17

87409387

CLEVIS,1 -1/4" - 12

cylinder 1" pin 1 1/4"-12 rod Monarch #492652

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

19

NSS

NOT SOLD SEPARAT

ring wear

1шт.

Included in repair kit 9681

1шт.

20

280431

NUT,1/2"-13, G5

8шт.

25

87314800

LOCK NUT

1"-14, GA

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

28

87637931

PIN,25.4mm OD x 85.6mm L

1" x 3 2/8"

2шт.

29

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

4шт.

30

9681

SEAL KIT

3" x 8" Monarch

1шт.

40

NSS

NOT SOLD SEPARAT

End Cap Backup Washers

2шт.

Included in repair kit 9681

1шт.
