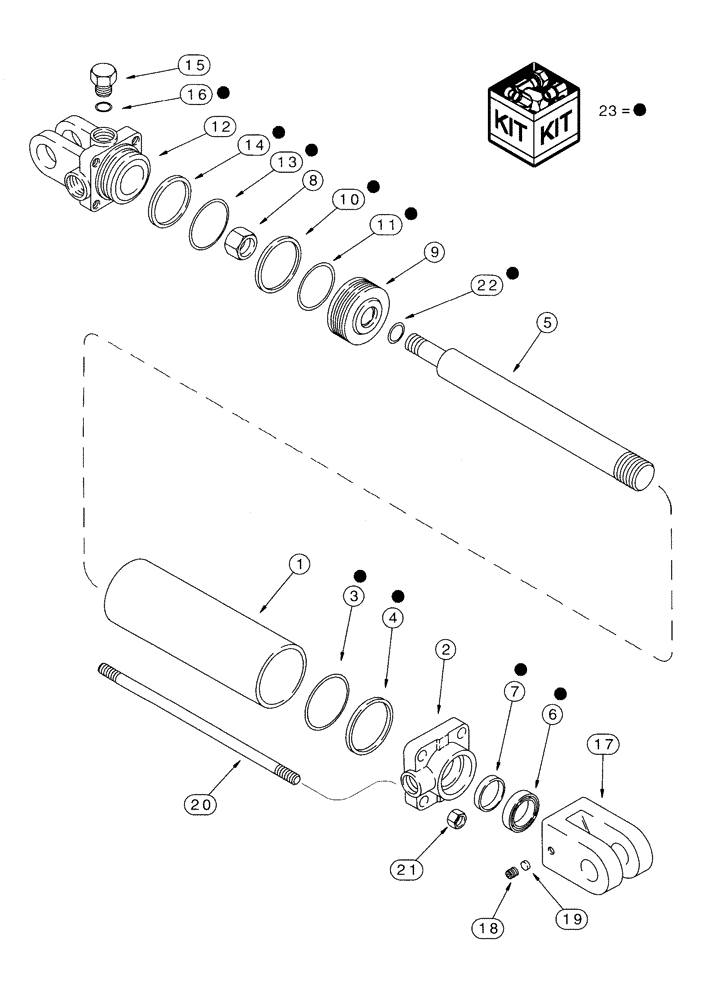

Запчасти Case IH 1200 (A.10.A[95]) - HYDRAULIC CYLINDER - 357157A1, 2 1/2" X 8", GULL WING ATTACHMENT 12 ROW NARROW MOUNTED STACKER BSN CBJ036000 A - Distribution Systems

0

357157A1

HYDRAULIC CYLINDER,Double Acting, 203.2mm Stroke

64 mm (2 1/2") id x 203 mm (8") stroke

1шт.

1

NSS

NOT SOLD SEPARAT

tube Cylinder, Order Cylinder Assembly

1шт.

2

NSS

NOT SOLD SEPARAT

gland Cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

o-ring Gland

1шт.

Included in repair kit 87502114

1шт.

4

NSS

NOT SOLD SEPARAT

ring Backup, Gland

1шт.

Included in repair kit 87502114

1шт.

5

NSS

NOT SOLD SEPARAT

rod Ppiston

1шт.

6

NSS

NOT SOLD SEPARAT

seal u-cup, Piston Rod

1шт.

Included in repair kit 87502114

1шт.

7

NSS

NOT SOLD SEPARAT

wiper Piston Rod

1шт.

Included in repair kit 87502114

1шт.

8

NSS

NOT SOLD SEPARAT

nut Hex

1шт.

9

NSS

NOT SOLD SEPARAT

piston, Cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

seal, Piston

1шт.

Included in repair kit 87502114

1шт.

11

NSS

NOT SOLD SEPARAT

o-ring, Backup, Piston Seal

1шт.

Included in repair kit 87502114

1шт.

12

NSS

NOT SOLD SEPARAT

cap End, Cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

o-ring, Cylinder Head

1шт.

Included in repair kit 87502114

1шт.

14

NSS

NOT SOLD SEPARAT

ring Backup, Cylinder Head

1шт.

Included in repair kit 87502114

1шт.

15

NSS

NOT SOLD SEPARAT

plug Hex

1шт.

16

NSS

NOT SOLD SEPARAT

o-ring, Plug

1шт.

Included in repair kit 87502114

1шт.

17

NSS

NOT SOLD SEPARAT

clevis, Rod End

1шт.

18

NSS

NOT SOLD SEPARAT

screw Set, Headless Hex Socket

1шт.

19

NSS

NOT SOLD SEPARAT

pad Insert

1шт.

20

NSS

NOT SOLD SEPARAT

bolt Tie, Cylinder

4шт.

21

NSS

NOT SOLD SEPARAT

nut Hex

4шт.

22

NSS

NOT SOLD SEPARAT

o-ring, Piston Rod

1шт.

Included in repair kit 87502114

1шт.

23

87502114

SEAL KIT

for 357157A1

1шт.
