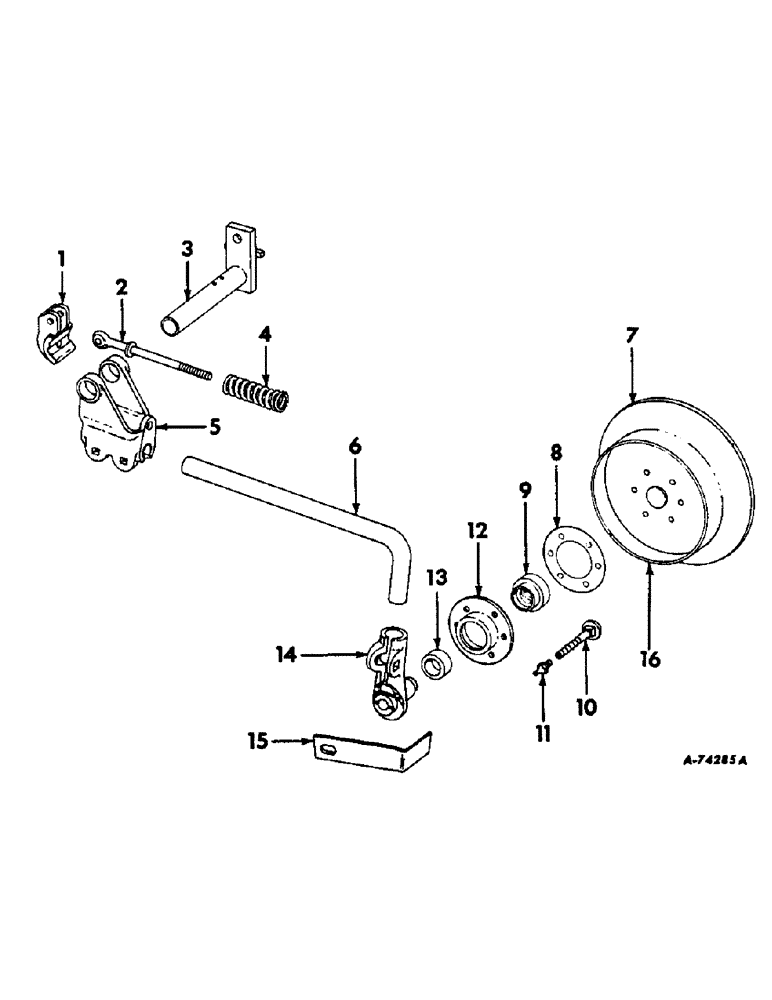

Запчасти Case IH 686 (F-11) - DISK AND BLADE COVERS

1

478069R1

ANCHOR, pressure rod

4шт.

NUT, 3/8

2шт.

SCREW, 3/8 x 2 cap

2шт.

WASHER, 3/8 lock

2шт.

2

477143R11

ROD

pressure

2шт.

2

468482R11

ROD, pressure, order 477143R11 and 477144R1

2шт.

NUT, 3/8

2шт.

PIN, 1/8 x 3/4 self-opening cot.

2шт.

CP14227

PIN

5/16 x 1-3/16 dld-std-hd

2шт.

20285H

WASHER

13/32 x 3/8 x 11 ga

4шт.

Q1504

WASHER

13/32 x 7/8 x 16 ga

4шт.

3

478068R91

BRACKET

ASSY, covering disk

2шт.

SCREW, 1/2 x 1-1/4 cap

2шт.

WASHER, 1/2 lock

2шт.

4

477144R1

SPRING

pressure rod

2шт.

5

471636R1

BRACKET, pivot

2шт.

BOLT W/NUT, 3/8 x 2 crg

4шт.

WASHER, 3/8 lock

4шт.

6

468483R2

ROD

STANDARD, covering disk

2шт.

7

468485R91

DISC

DISK, order (1) 517686R2, (1) 477550R1, and (6) 104083 rivets

2шт.

7

468484R93

DISC

DISK

2шт.

7

517686R21

NO LONGER SERVICED

DISK

2шт.

RIVET, 1/4 x 5/8 rd-hd

12шт.

8

SA6222

GASKET

2шт.

9

SA6228

BEARING

ball

2шт.

10

517678R2

BOLT, 1/2 x 2-1/2 sq-nk-dld crg

2шт.

NUT, 1/2

2шт.

WASHER, 1/2 lock

2шт.

11

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 straight drive type lubrication

2шт.

12

517685R1

RETAINER

HUB, bearing

2шт.

13

SA6219

RUBBER SEAL

dust

2шт.

14

517683R3

SUPPORT

2шт.

BOLT W/NUT, 1/2 x 1-3/4 crg

2шт.

15

468488R2

SCRAPER, covering disk RH

1шт.

15

468487R2

SCRAPER, covering disk LH

1шт.

16

477550R1

BAND, disk

2шт.

RIVET, 1/4 x 3/4 small b-hd

12шт.
