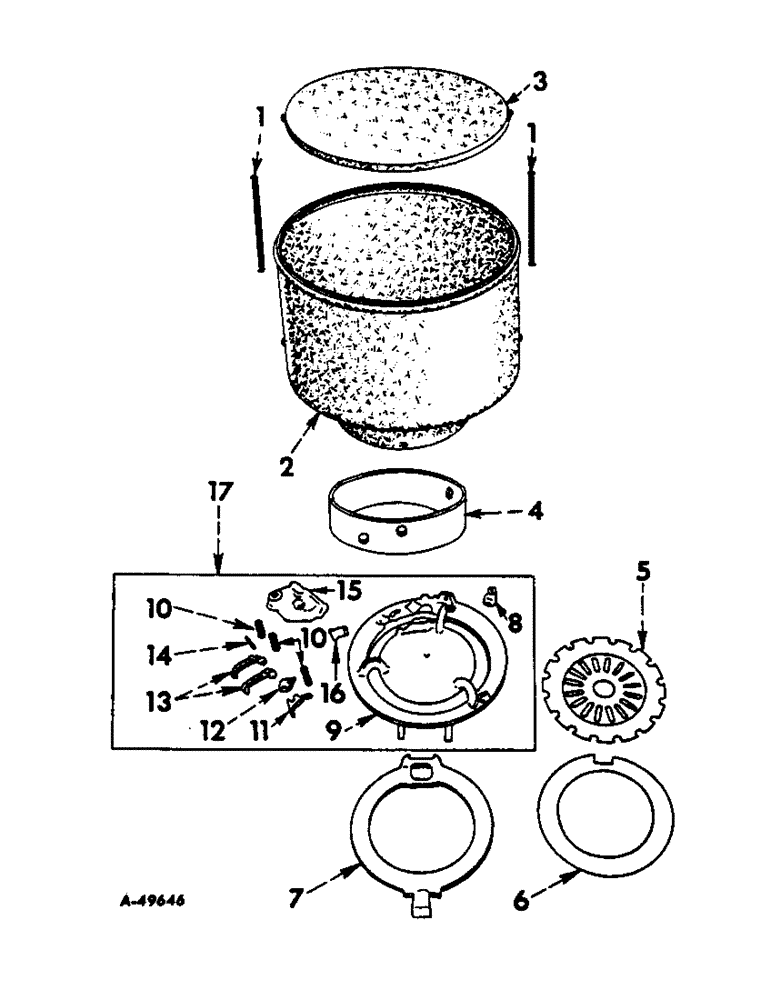

Запчасти Case IH 686 (F-36) - SEED HOPPER, LARGE CAPACITY

1

(Not used in this application)

1шт.

2

626466R91

HOPPER ASSY, seed

1шт.

138198

ARM

SCREW, 5/16 x 3/8 C-Z slt-rd-hd mach

4шт.

NUT, 5/16 C-Z

4шт.

WASHER, 7/16 C-Z lock

4шт.

3

626484R1

LID, hopper

1шт.

4

626444R1

RING, adapter

1шт.

138198

ARM

SCREW, 5/16 x 3/8 slt-rd-hd C-Z mach

3шт.

5

PLATE, seed, see seed plates

1шт.

6

RING, filler, see seed plates

1шт.

7

468507R1

PLATE

reversible bottom

1шт.

8

625065R2

BUTTON

hopper bottom plate retainer

1шт.

RIVET, 1/4 x 1-5/8 b-hd

1шт.

9

BOTTOM, hopper, order 464260R92, bottom assembly

1шт.

10

2064A

SPRING

cut-off and knocker, .445 OD, 1-5/8 long, 12 coils

3шт.

11

464258R11

ARM

roller knocker

1шт.

11

625776R2

PAWL

knock-out, special

1шт.

12

625066R1

KNOCKER

SEAT, adjustable knocker

1шт.

120583

SCREW,Sl Rnd Hd, 1/4" - 20 x 5/8"

1/4 x 5/8 slt-rd-hd C-Z mach

1шт.

WASHER, 1/4 lock

1шт.

WASHER, 9/32 x 5/8 x 16 ga

1шт.

13

625539R91

PAWL

S, cut-off, pair of inner and outer

1шт.

14

2000AA

PIN

3/16 x 1-1/8 pawl cut-off hinge

1шт.

15

625069R3

CAP

cut-off and knocker

1шт.

BOLT, 5/16 x 2 crg

1шт.

NUT, 5/16

1шт.

WASHER, 5/16 lock

1шт.

16

13607AB

HINGE

GATE, hopper bottom hinged

1шт.

17

464260R92

BOTTOM

ASSEMBLY, hopper

1шт.

Q3429

DOWEL

PIN, 5/16 x 3-1/2 dld-std-hd

1шт.

PIN, 1/8 x 3/4 cotter

1шт.

464259R1

ROLLER

KNOCKER, seed plate roller

1шт.
