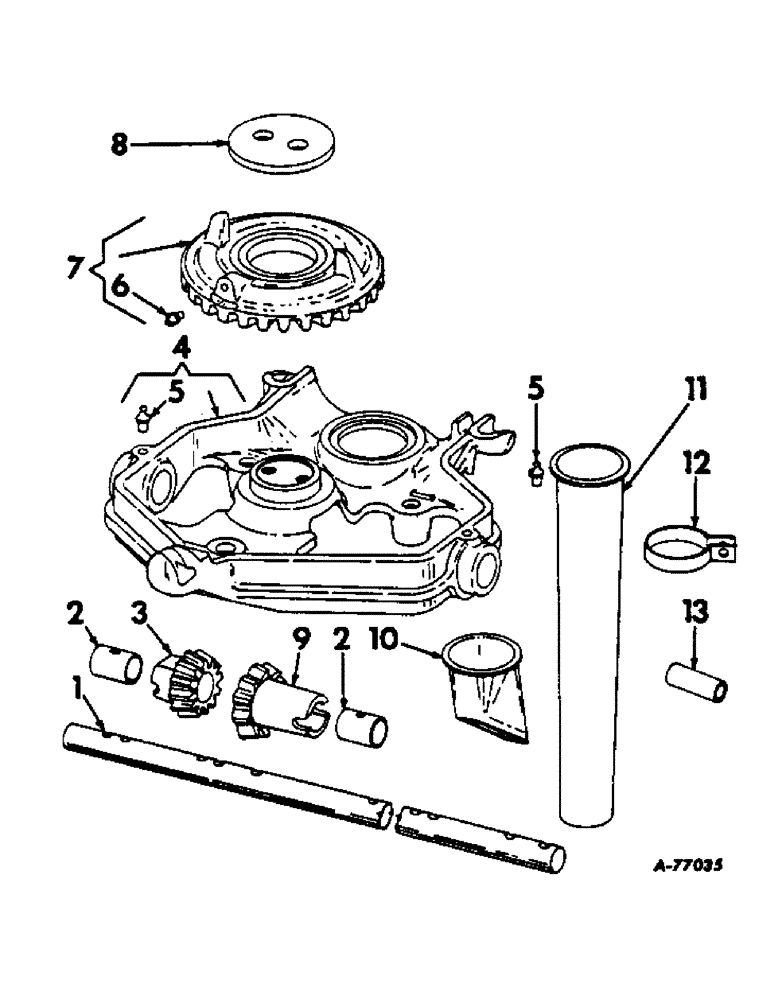

Запчасти Case IH 686 (F-06) - HOPPER DRIVE, FOR 486, 489, 686 AND 689 PLANTERS

1

471197R1

SHAFT, feed, 4 for 486 and 489 planters, 6 for 686 and 689 planters

1шт.

1

478088R1

SHAFT, feed, for 16 x 29 in. flat steel press wheel, 4 for 486 and 489 planters, 6 for 686 and 689 planters

1шт.

471210R1

PIN

1/4 x 21/32 chamfered std-hd, for sprockets, 4 for 486 and 489 planters, 6 for 686 and 689 planters

1шт.

585614R1

PIN

.072 x 1-7/16 quick-attachable cotter, 4 for 486 and 489 planters, 6 for 686 and 689 planters

1шт.

PIN, 1/4 x 1-1/4 self-opening cotter, 4 for 486 and 489 planters, 6 for 686 and 689 planters

1шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

4 for 486 and 489 planters, 6 for 686 and 689 planters 1/4" x 1 1/4", Coiled

1шт.

33405A

WASHER

WASHER, 25/32 x 1-1/8 x 22 ga, 8 for 486 and 489 planters, 12 for 686 and 689 planters

1шт.

16066R1

WASHER

25/32 x 1-1/2 x 16 ga, 8 for 486 and 489 planters, 12 for 686 and 689 planters

1шт.

2

527132R1

BUSHING,19.06mm ID x 22.21mm OD x 25.4mm L

feed shaft, brz, 8 for 486 and 489 planters, 12 for 686 and 689 planters

1шт.

BOLT W/NUT, 3/8 x 1-3/4 mach, 8 for 486 and 489 planters, 12 for 686 and 689 planters

1шт.

BOLT W/NUT, 1/2 x 1-1/2 mach, 4 for 486 and 489 planters, 6 for 686 and 689 planters

1шт.

18898R1

BOLT W/NUT, 5/16 x 2-1/4 C-Z mach, 8 for 486 and 489 planters, 12 for 686 and 689 planters

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16 C-Z wing, 8 for 486 and 489 planters, 12 for 686 and 689 planters

1шт.

WASHER, 3/8 lock, 8 for 486 and 489 planters, 12 for 686 and 689 planters

1шт.

3

471196R1

GEAR WHEEL

PINION, bevel, 12T, 4 for 486 and 489 planters, 6 for 686 and 689 planters

1шт.

PIN, 1/8 x 3/4 self-opening cotter, 4 for 486 and 489 planters, 6 for 686 and 689 planters

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 dld-std-hd, 4 for 486 and 489 planters, 6 for 686 and 689 planters

1шт.

4

468421R21

BRACKET, hopper, 4 for 486 and 489 planters, 6 for 686 and 689 planters

1шт.

5

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 straight drive type lub, 8 for 486 and 489 planters, 12 for 686 and 689 planters

1шт.

6

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 straight drive type lub, 4 for 486 and 489 planters, 6 for 686 and 689 planters

1шт.

7

622120R21

GEAR

W/FITTING, double ring, 20 and 40T, 4 for 486 and 489 planters, 6 for 686 and 689 planters

1шт.

8

462502R1

RETAINER

WASHER, gear retaining, 4 for 486 and 489 planters, 6 for 686 and 689 planters

1шт.

113989

1/4 x 5/8 slt-hex-hd mach, 8 for 486 and 489 planters, 12 for 686 and 689 planters

1шт.

114616

WASHER

1/4 csk external tooth lock, 8 for 486 and 489 planters, 12 for 686 and 689 planters

1шт.

9

468423R1

GEAR

PINION, bevel, 10T, 4 for 486 and 489 planters, 6 for 686 and 689 planters

1шт.

10

468448R1

SPOUT, DISCHARGE

SPOUT, hopper bracket, 4 for 486 planter, 6 for 686 planter

1шт.

11

471738R1

TUBE, seed, 4 for 489 planter, 6 for 689 planter

1шт.

12

471737R1

RETAINER, seed, 4 for 489 planter, 6 for 689 planter

1шт.

BOLT W/NUT, 5/16 x 3 mach, 4 for 489 planter, 6 for 689 planter

1шт.

WASHER, 5/16 lock, 4 for 489 planter, 6 for 689 planter

1шт.

13

PO23796

SPACER,1/4" Pipe x 1 1/16"

Spout retainer, 8 for 489 planter, 16 for 689 planter 1/4" Pipe x 1 1/16"

1шт.
